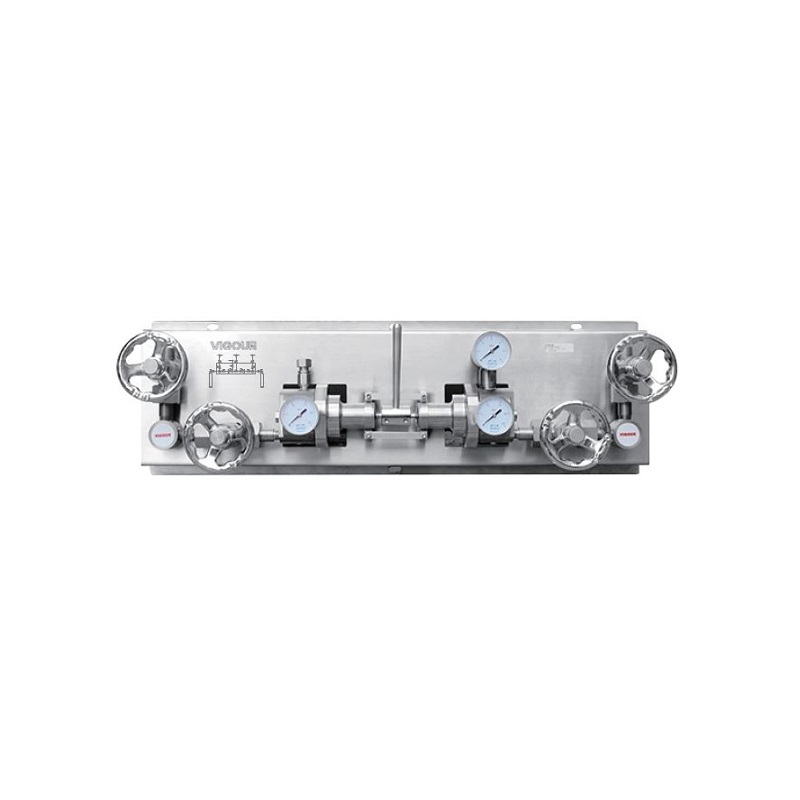

Pressure Control Panel VSP-36 Series

Type: single-stage

Inlet pressure P1: max. 245 bar (Brass)/ 300 bar (316L)

Outlet pressure P2: 20/40/60 bar

Materials

Shut-off valve: Brass/ Chrome plated/ 316L

Body regulator: Brass/ Chrome plated/ 316L

Valve seat (regulator): PCTFE

Filter: Stainless steel

Mounting plates: Stainless steel

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Inlet connection: 1/4”NPT(F) (316L), 1/2"NPT(F) (Brass)

Outlet connection: 3/4”NPT (20mm Stainless steel tube)

Temperature range: -30℃ to +74℃

Weight: 27.5kg (brass)/ 20kg (316L)
