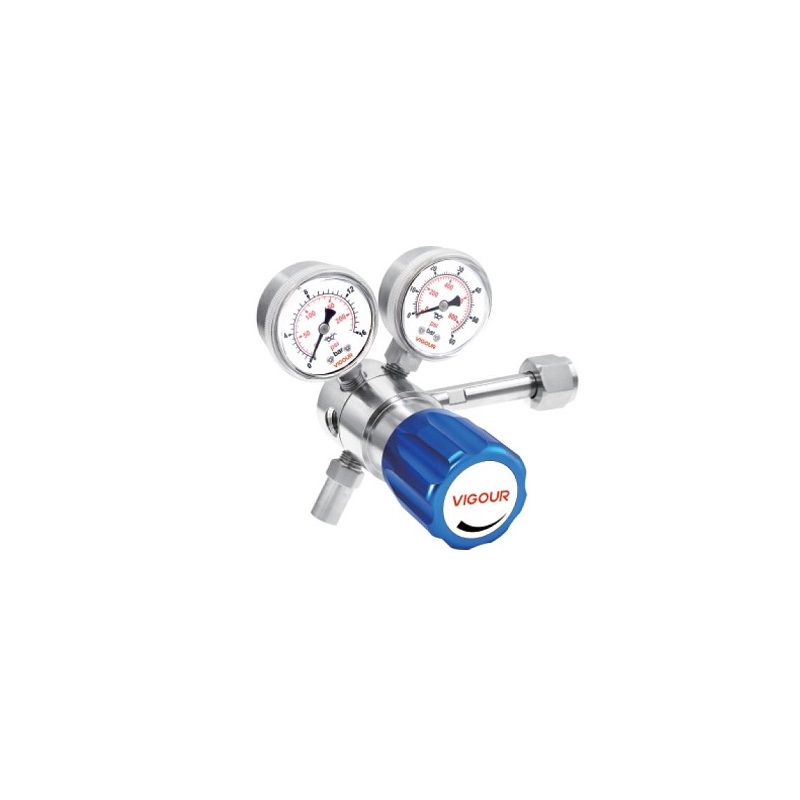

Cylinder Pressure Regulator VSR-1E Series

Nhà sản xuất/Thương hiệu: VIGOUR

  • Liên hệ
  • 46

Type: single-stage

Inlet pressure P1: max. 300 bar

Outlet pressure P2: VAC/2/4/8/10/20 bar

Materials

Body regulator: see ordering info

Valve seat: PCTFE

Diaphragm: Hastelloy C276

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30 to +74

Flow capacity: Cv=0.08

Weight: 1.3kg
