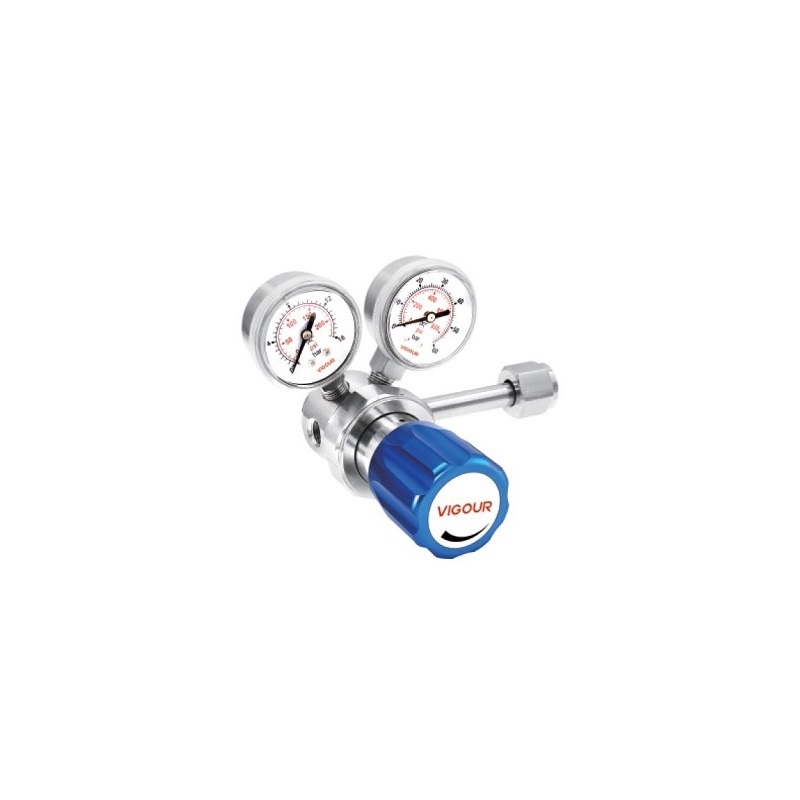

Cylinder Pressure Regulator VSR-2E Series

Nhà sản xuất/Thương hiệu: VIGOUR

  • Liên hệ
  • 69

Type: single-stage

Inlet pressure P1: max. 300 bar

Outlet pressure P2: VAC/2/4/10/20/35/50 bar

Materials

Body regulator: see ordering info

Valve seat: PCTFE

Diaphragm: Hastelloy C276

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30 to +74

Flow capacity: Cv=0.07

Weight: 1.25kg
