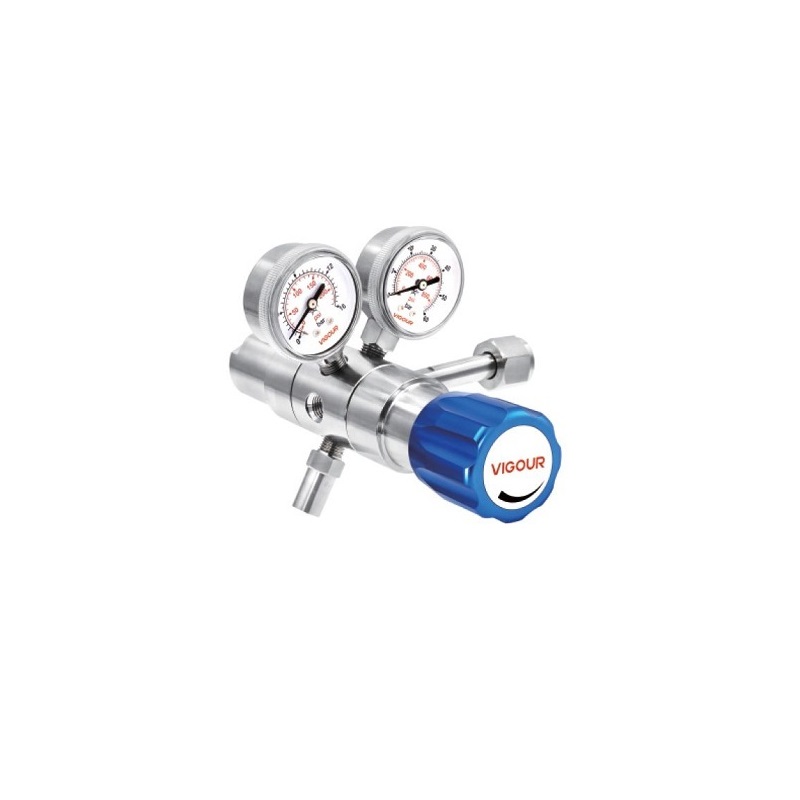

Cylinder Pressure Regulator VSR-11E Series

Nhà sản xuất/Thương hiệu: VIGOUR

  • Liên hệ
  • 62

Type: Dual-stage

Inlet pressure P1: max. 300 bar

Outlet pressure P2: 2/4/8/10/20 bar

Materials

Body regulator, Relief valve: see ordering info

Valve seat: PCTFE

Diaphragm: Hastelloy C276

Filter: SS 316L

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30 to +74

Flow capacity: Cv=0.07

Weight: 2.1kg
