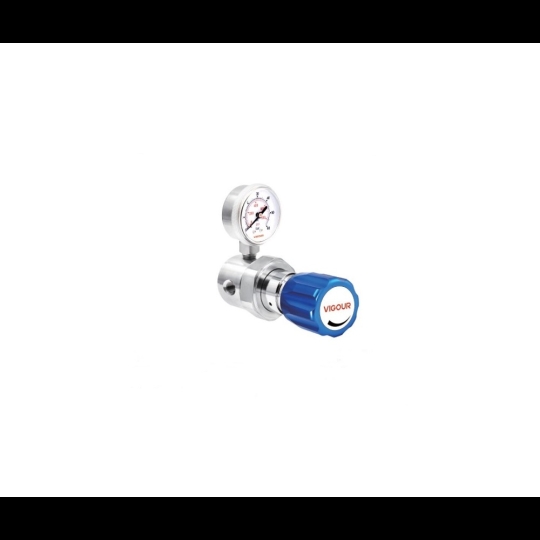

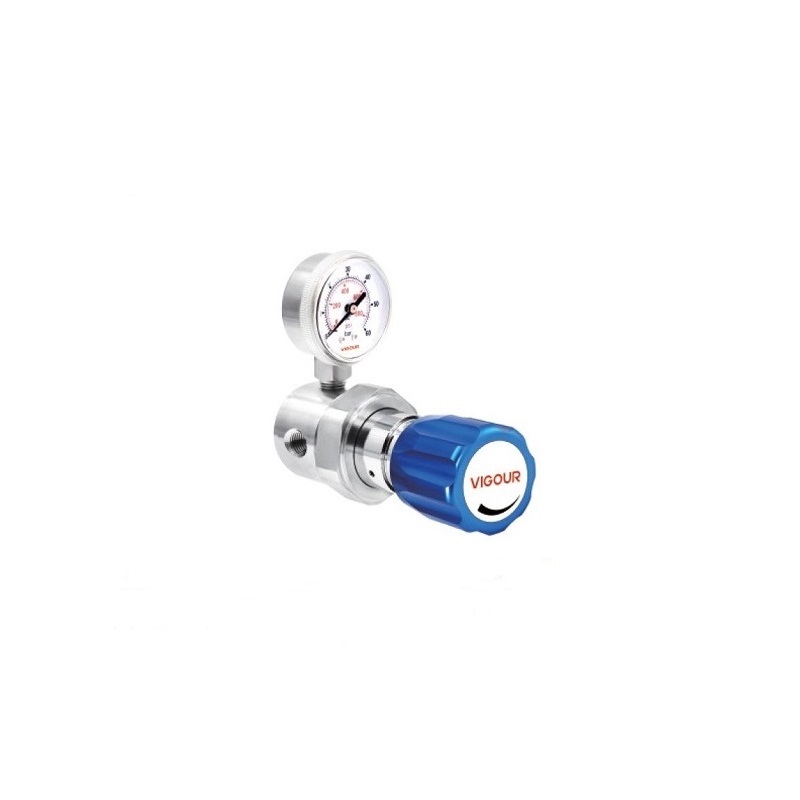

Panel & Line Regulator VSR-2EL & VSR-2ELP Series

Type: single-stage

Inlet pressure P1: max. 100 bar

Outlet pressure P2: VAC/2/4/8/10/20/35/50 bar

Materials

Body regulator: see ordering info

Valve seat: PCTFE

Diaphragm:

* Hastelloy C276

* PTFE+Neoprene (NP option)

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30℃ to +74℃

Flow capacity:

P2=35/50 bar: Cv=0.08

P2=2/4/8/10/20/50 bar: Cv=0.28

Weight: 1.25kg
