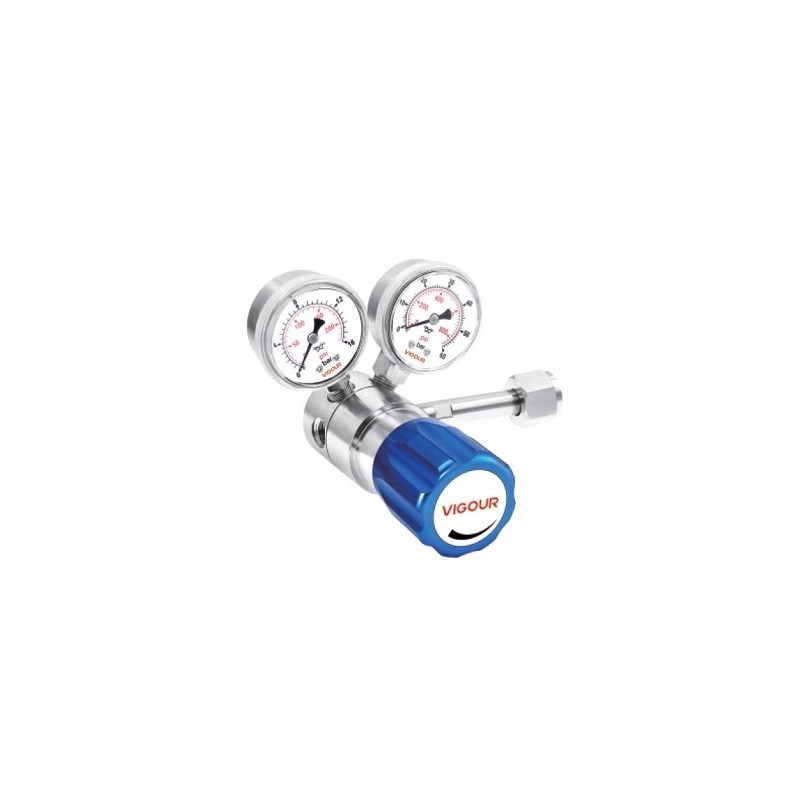

Type: single-stage
Inlet pressure P1: max. 300 bar
Outlet pressure P2: 50/100/200 bar
Materials
Body regulator: see ordering info
Valve seat: PCTFE
Bonnet: see ordering info
Diaphragm: Hastelloy C276
Filter: SS 316L
O-ring: Viton (FKM)
(option) Kalrez (FFKM)
Inlet connection: 1/4”NPT(F)
Outlet connection: 1/4”NPT(F)
Temperature range: -30℃ to +74℃
Flow capacity: Cv=0.15
Weight: 1.2kg
