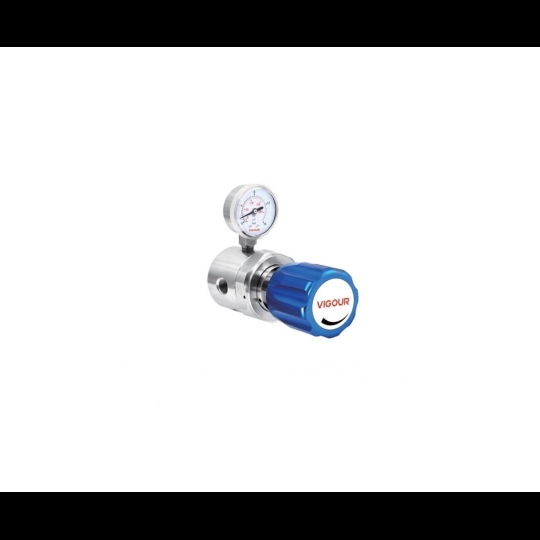

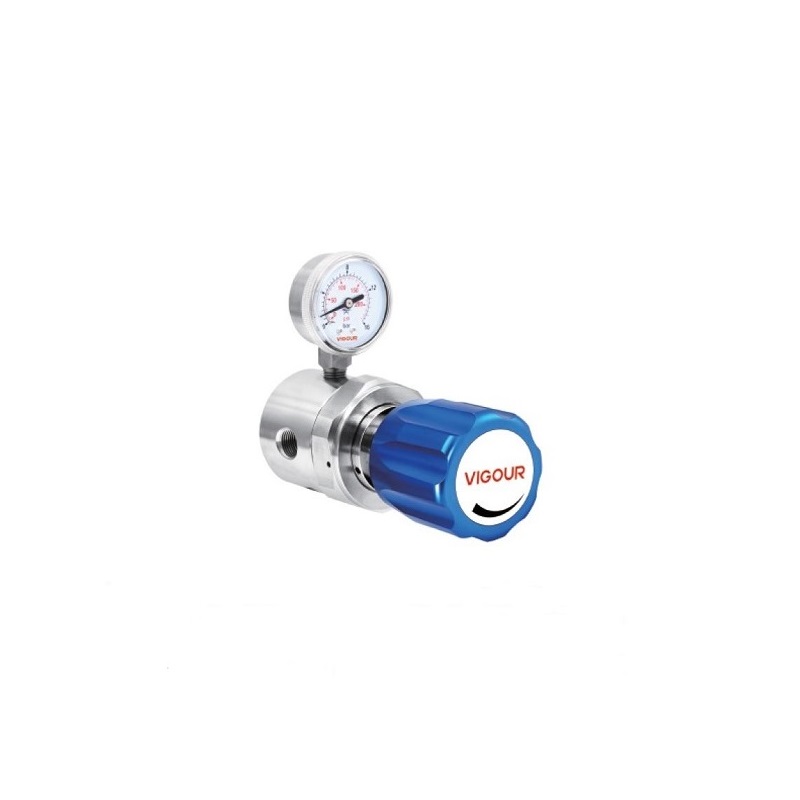

Type: single-stage
Inlet pressure P1: max. 100 bar
Outlet pressure P2: 1/2/4/8/10/20/35/50 bar
Materials
Body regulator: see ordering info
Valve seat: PCTFE
Diaphragm:
* Hastelloy C276
* PTFE+Neoprene (NP option)
O-ring: Viton (FKM)
(option) Kalrez (FFKM)
Filter: SS 316L
Inlets and Outlets: see ordering info
Temperature range: -30℃ to +74℃
Flow capacity: Cv=1.7
Weight: 2.8kg
