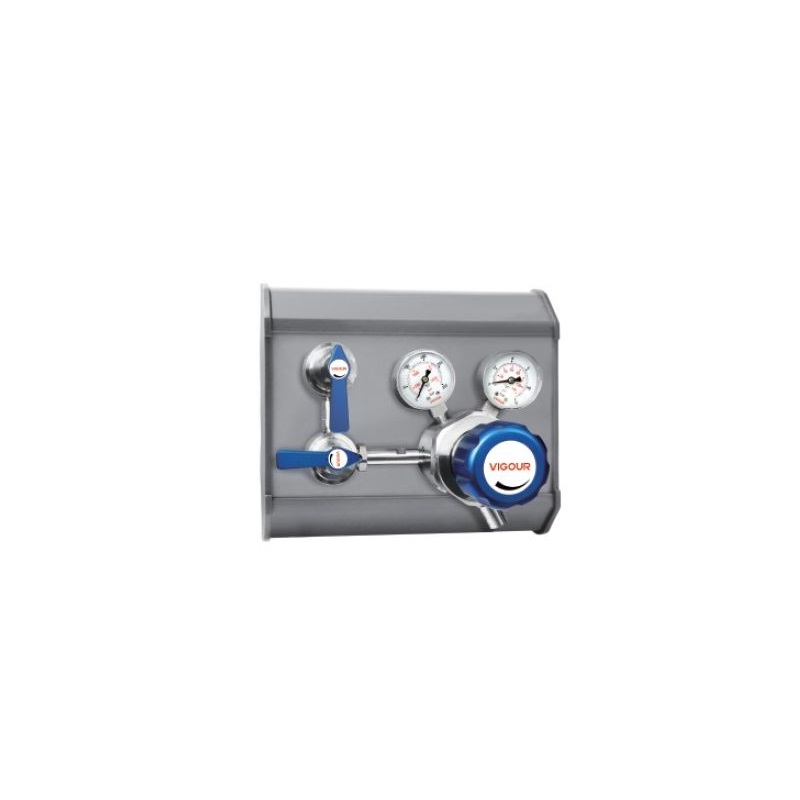

Pressure Control Panel VSP-1H Series

Type: single-stage

Inlet pressure P1: max. 300 bar

Outlet pressure P2: 2/4/10/20/35/50 bar

Materials

Body regulator: see ordering info

Valve seat (regulator): PCTFE

Valve seat (shut-of valve): PCTFE

Diaphragm (regulator): Hastelloy C276

Diaphragm (valve): Elgiloy

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30℃ to +74℃

Weight: 4.9kg
