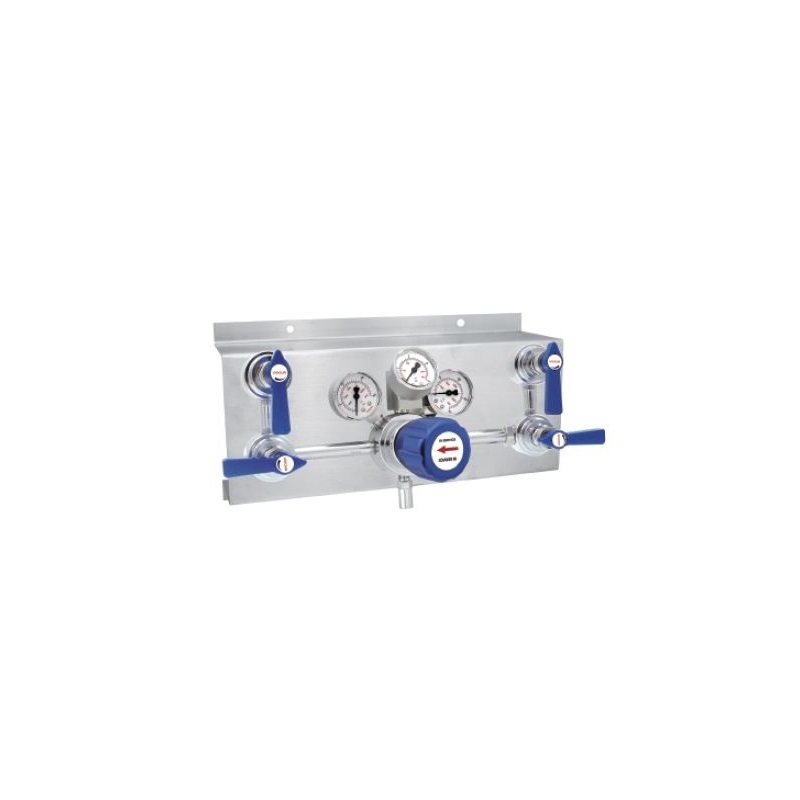

Pressure Control Panel VSP-11E Series

With automatic change-over function

* With VSR-11E Series dual stage regulator

* Brass chrome plated body for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0

* Stainless steel 316L body and bonnet for corrosive gases

* Modular design

* Diaphragm type shut-off valves

* Suitable for inlet pressure up to 300 bar

* Easy installation into safety cabinet for gas cylinders

* Tested for use with oxygen

Type: Double stage

Inlet pressure P1: max. 300 bar

Outlet pressure P2: 2/4/10/20 bar

Materials

Body regulator and valves: see ordering info

Valve seat (regulator): PCTFE

Valve seat (shut-of valve): PCTFE

Diaphragm (regulator): Hastelloy C276

Diaphragm (valve): Elgiloy

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30℃ to +74℃

Weight: 5.1kg
