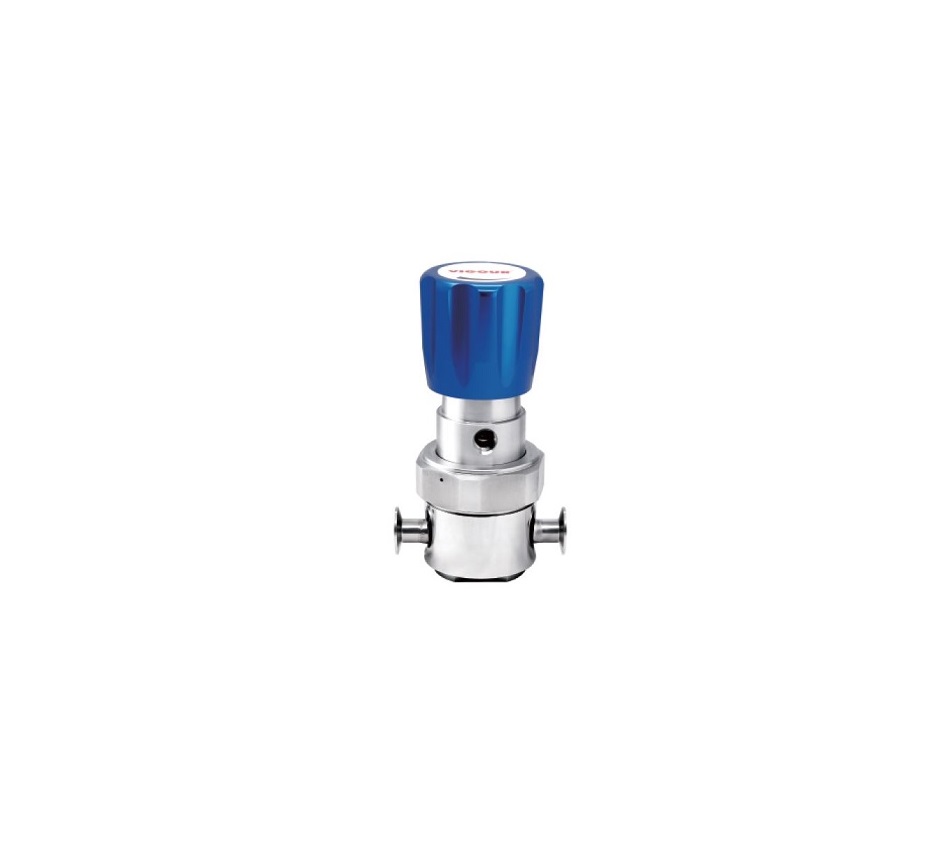

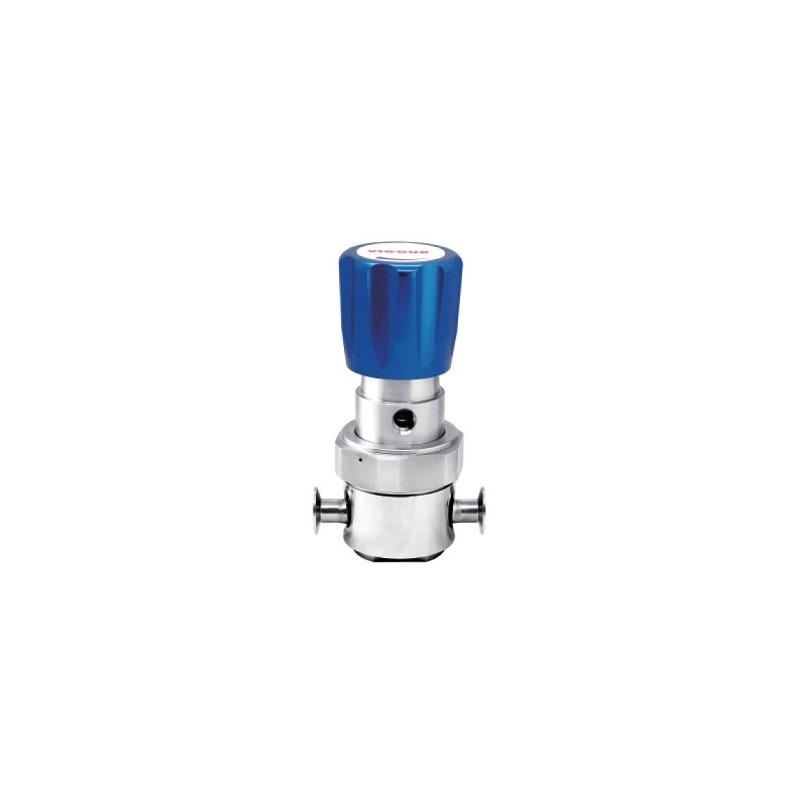

Panel & Line Regulator VSR-2EPH Series

Nhà sản xuất/Thương hiệu: VIGOUR

  • Liên hệ
  • 52

Type: single-stage

Inlet pressure P1: max. 40 bar

Outlet pressure P2: VAC/1/2/4/8/10/20 bar

Materials

Body regulator: SS 316L

Valve seat: PCTFE

Diaphragm: Hastelloy C276

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlets and Outlets: 1/4”NPT(F), 3/8” option

Temperature range: -30 to +74

Flow capacity: Cv=0.28

Weight: 1.25kg
