Needle valves model 8108

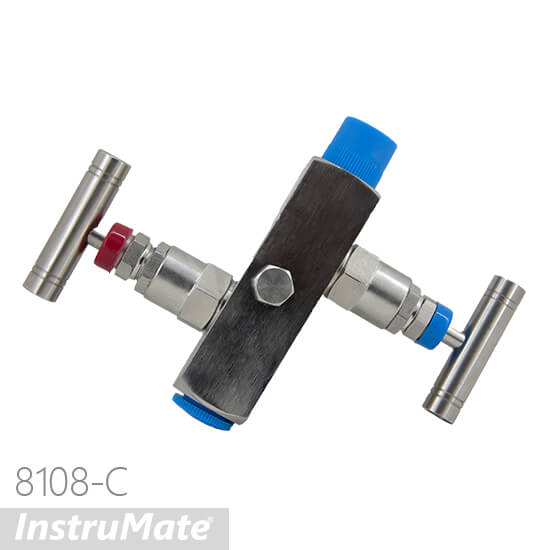

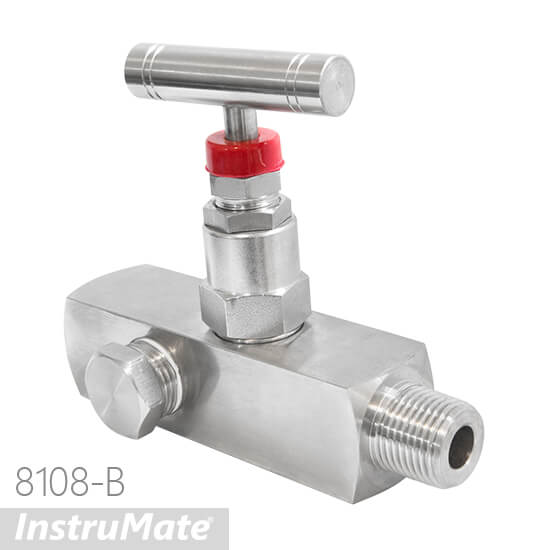

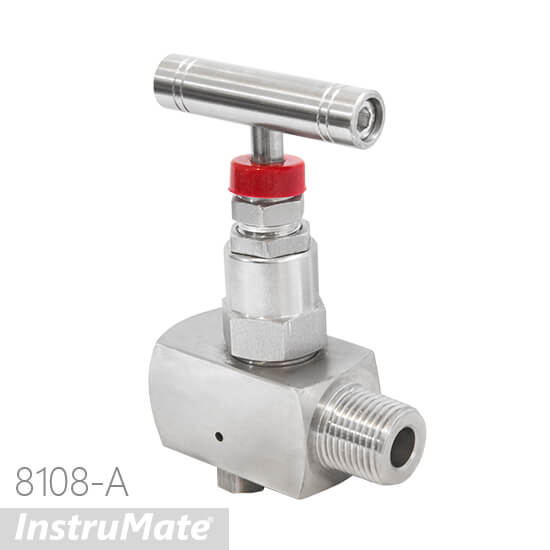

Model: 8108-A, 8108-B, 8108-C

Manufacturer: Instrumate

Pressure

Different series depending on the required service pressure, up to 6000 psi (410 bar)

Diameters: For lines from 1/4 ”to 1/2” diameter as standard.

Connections: NPT (ASME B1.20.1), BSP or Cylindrical GAS ISO 228 and connection for registration to M20x1.5.

Special connections for pressure gauges: EN 837-1 (DIN 16288 Form B or DIN 16288 Form Z); DIN 16283; DIN 16284

Materials: Carbon Steel, 316 / 316L Stainless Steel, Brass.

Upon request, they can be manufactured in Duplex, Super duplex, Hastelloy, Monel among others.

Packing: GRAFOIL or PTFE. Upon request, it can be supplied in other materials.
