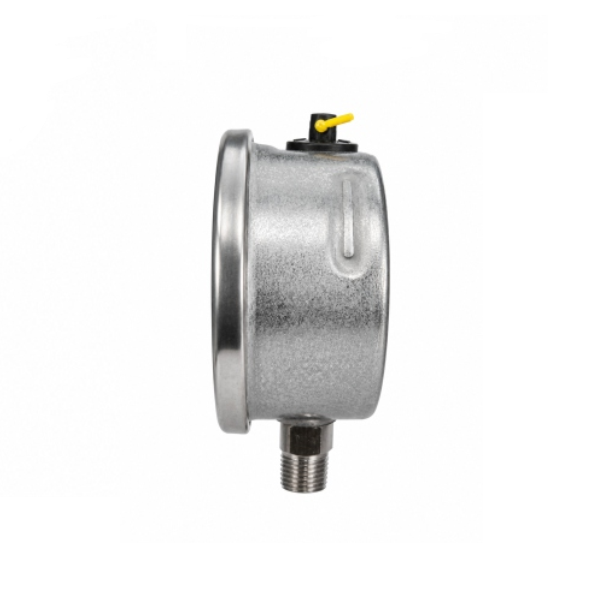

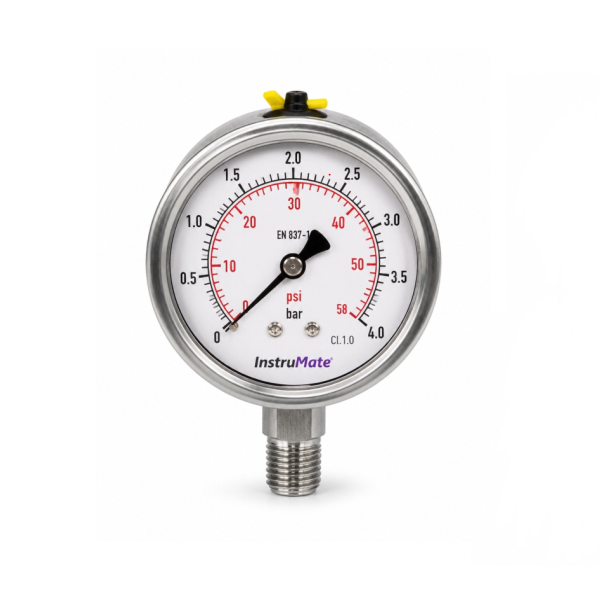

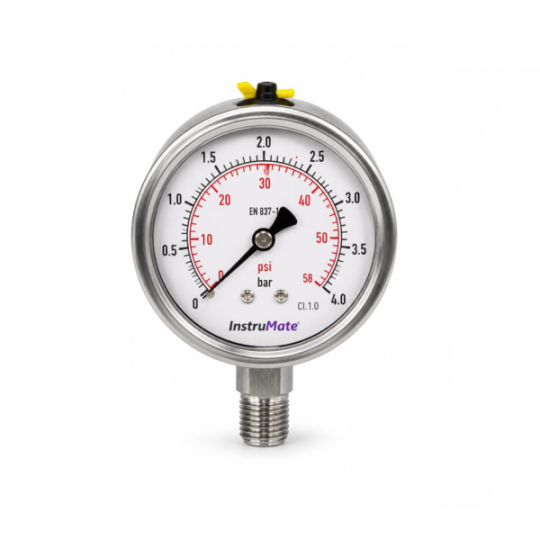

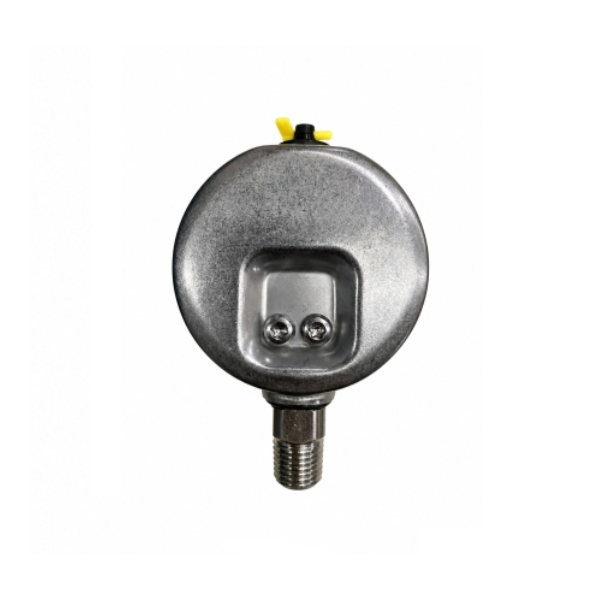

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 113AC

Description: InstruMate 113AC full stainless steel gauge in standard version is offered safety glass . All of 113AA pressure gauges pass cycle testing, vibration testing, overpressure testing, and Helium leakage testing as part of production process. The choice of material as well as its heavy-duty construction makes this model a suitable pressure gauge for a wide range of industries from pharmaceutical to petrochemical.
All InstruMate pressure gauges have geometrically balanced dial designs to make gauge readings easier.
Application
* Harsh ambience
* Chemical and petrochemical processing industries
* Power plants, offshore sites, ships and food industry
* Severe operating conditions
* Couple with diaphragm seals
* Do not use directly for medias that are viscous or crystallizin
Special Features
* Proved accuracy, stability and repeatability
* Shock resistant and durable
* IP66
* Reasonable price for a distinguished quality
Specification
Design: EN 837-1
Nominal sizes in mm: 63, 100
Scale Ranges:
      NS 63: 0…1 bar to 1000 bar
      NS 100: 0…0.6 bar to 1600 bar
      Vacuum & compound ranges
Pressure Limitations
Nominal size 63:
      Steady: 80% of full scale
      Fluctuating: 65% of full scale
      Over-Pressure: 100% of full scale
Nominal size 100 (Heavy duty):
      Steady: 100% of full scale
      Fluctuating: 90% of full scale
      Over-Pressure: 130% of full scale
Pressure Element:
      NS 63: SS316
      NS 100: SS316L
Permissible Temperature:
      Ambient: -20…+60 °C
      Medium: +190 °C Maximum for dry version
                     95 °C Maximum for oil filled version
Accuracy:
      NS 63: 1.6% of full scale
      NS 100: 1% of full scale
Window: Safety Glass
Case: 304 Stainless steel
Dial: Aluminium
Movement: Stainless Steel

Options
* Filled with glycerin or silicone oil
* Different oil caps available
* SS316 or Monel process connection and bourdon tube
* Excellent TIG welding available for case and connection
* Request process connections other than stated in the table
* Refrigeration Scale design
* To be combined with Instrmate diaphragm seals
