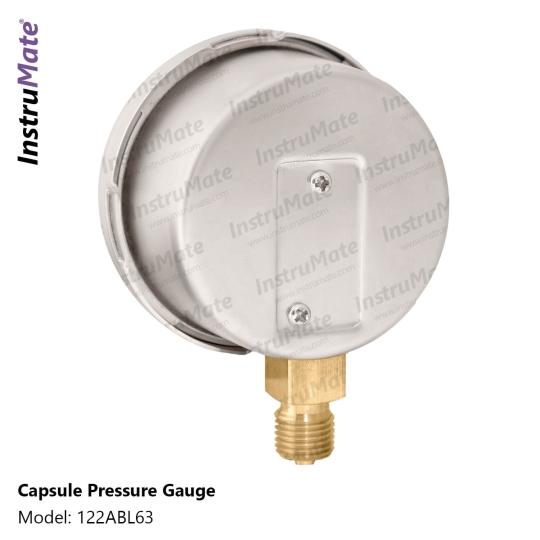

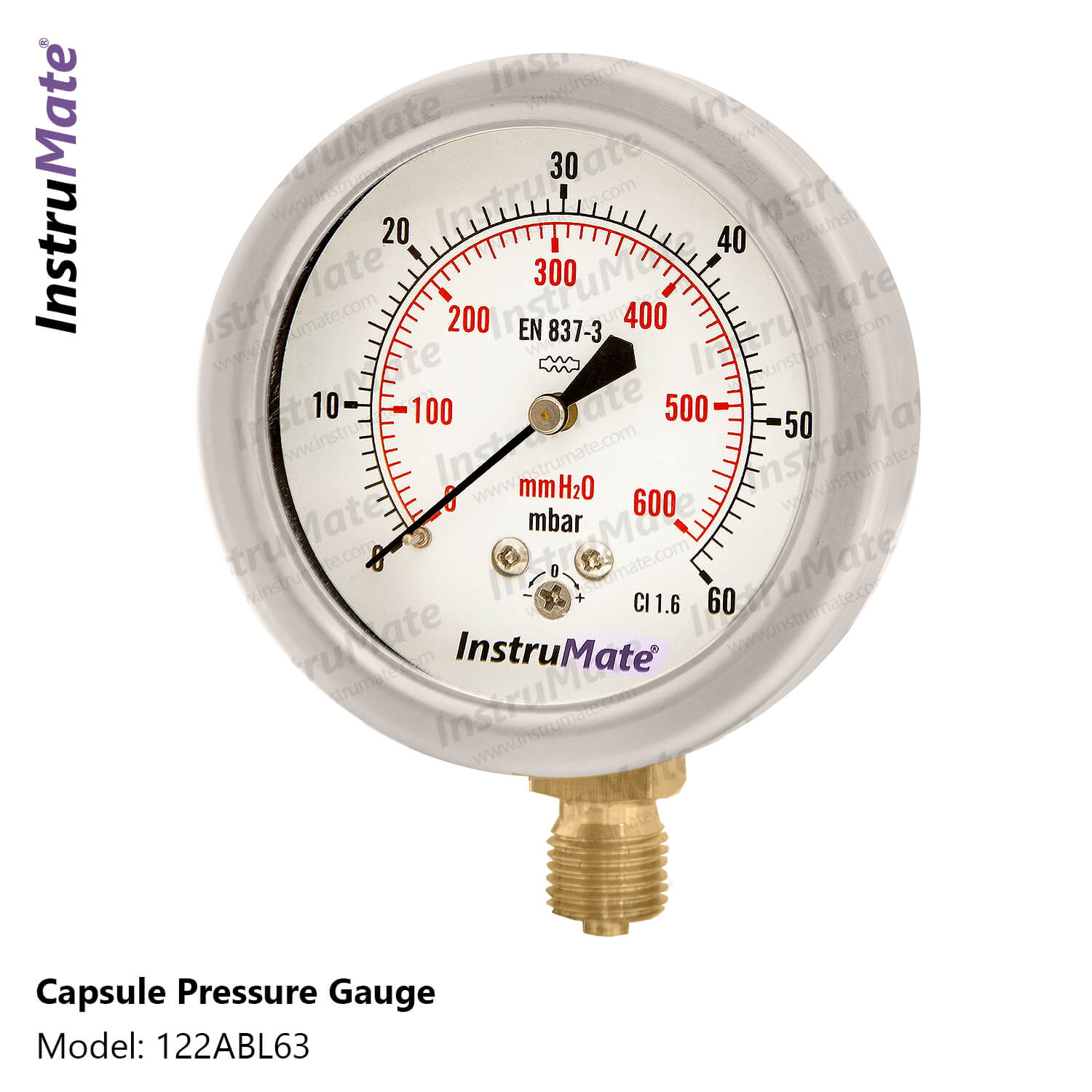

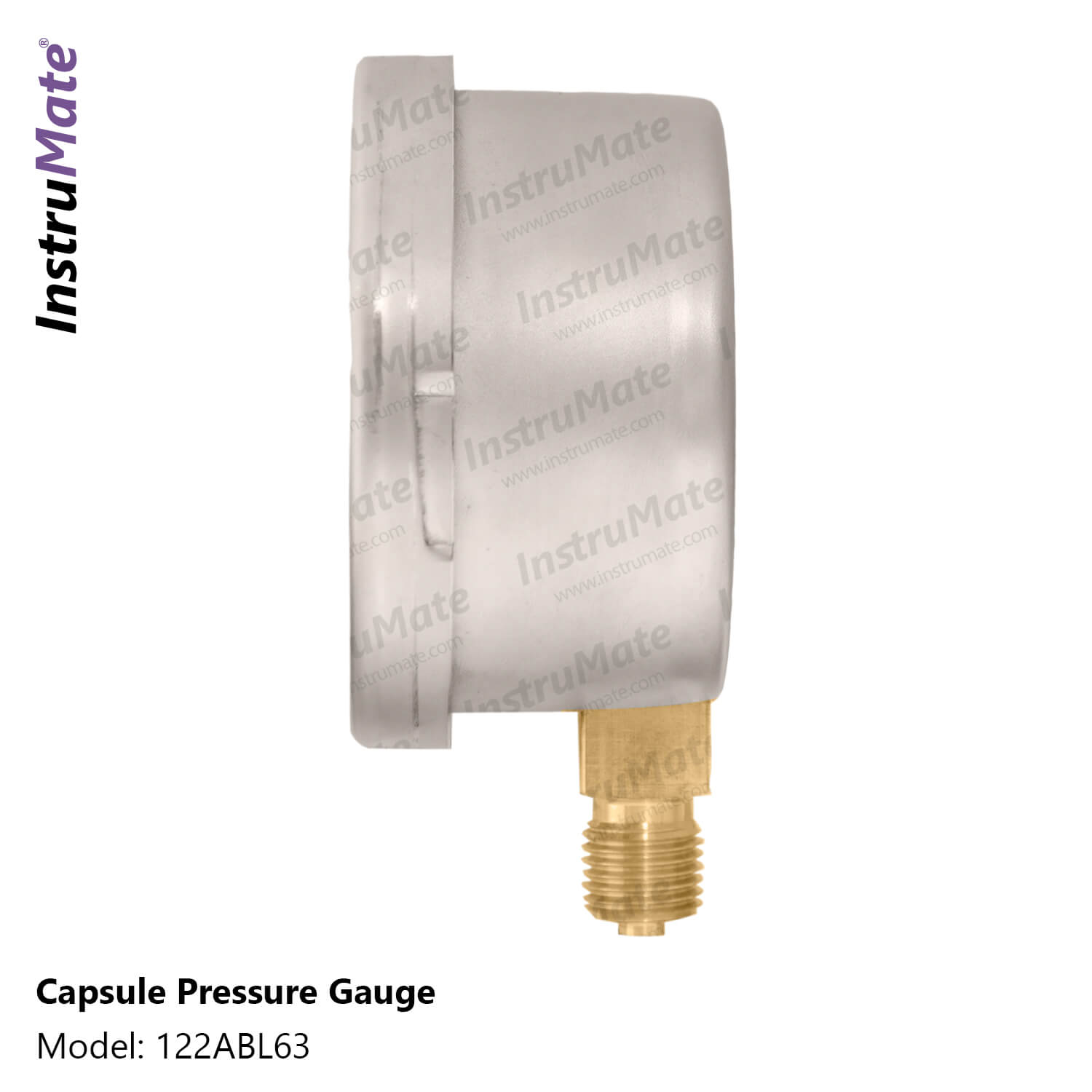

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE DẠNG CAPSULE MODEL 122AB

InstruMate low pressure gauge model 122AB alongside with 122AA are the strongest design for a low pressure gauge with brass connection. The case in this capsule pressure gauge is Outside Bayonet (openable) which makes it easy to recalibrate and adjust the pressure gauge if needed. Outside bayonet bezel provides you with the advantage of a little bigger dial face within the same nominal size, thus easier reading.Choosing reliable capsule measuring system assures you can rely on it for any low pressure monitoring with medias not attacking copper alloys.

All InstruMate pressure gauges have geometrically balanced dial designs to make gauge readings easier

Applications

* Low pressure/vacuum measurement of gas and dry air

* Do not use for medias that are viscous, crystallizing and corroding cooper alloy

* Medical and agricultural machinery

Special Features

* Reliable capsule measuring system made of copper alloy

* Strong design with full stainless steel case and bezel

* Zero adjusting screw on dial

* Thin pointer design

Specification

Nominal Sizes in mm: 63, 100

Scale Ranges:

      NS 63: 0…25 to 1000 mbar

      NS 100: 0…16 to 1000 mbar

      Vacuum & compound ranges

Pressure Limitations:

      Steady: 100% of full scale

      Fluctuating: 90% of full scale

Permissible Temperature:

      Ambient: -20…+60 °C

      Medium: +90 °C Maximum

Accuracy: 1.6% of full scale

Window: Glass

Case: Matte SS304

Movement: Copper Alloy

Pressure Element: Copper alloy

Capsule system
