ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 112AB

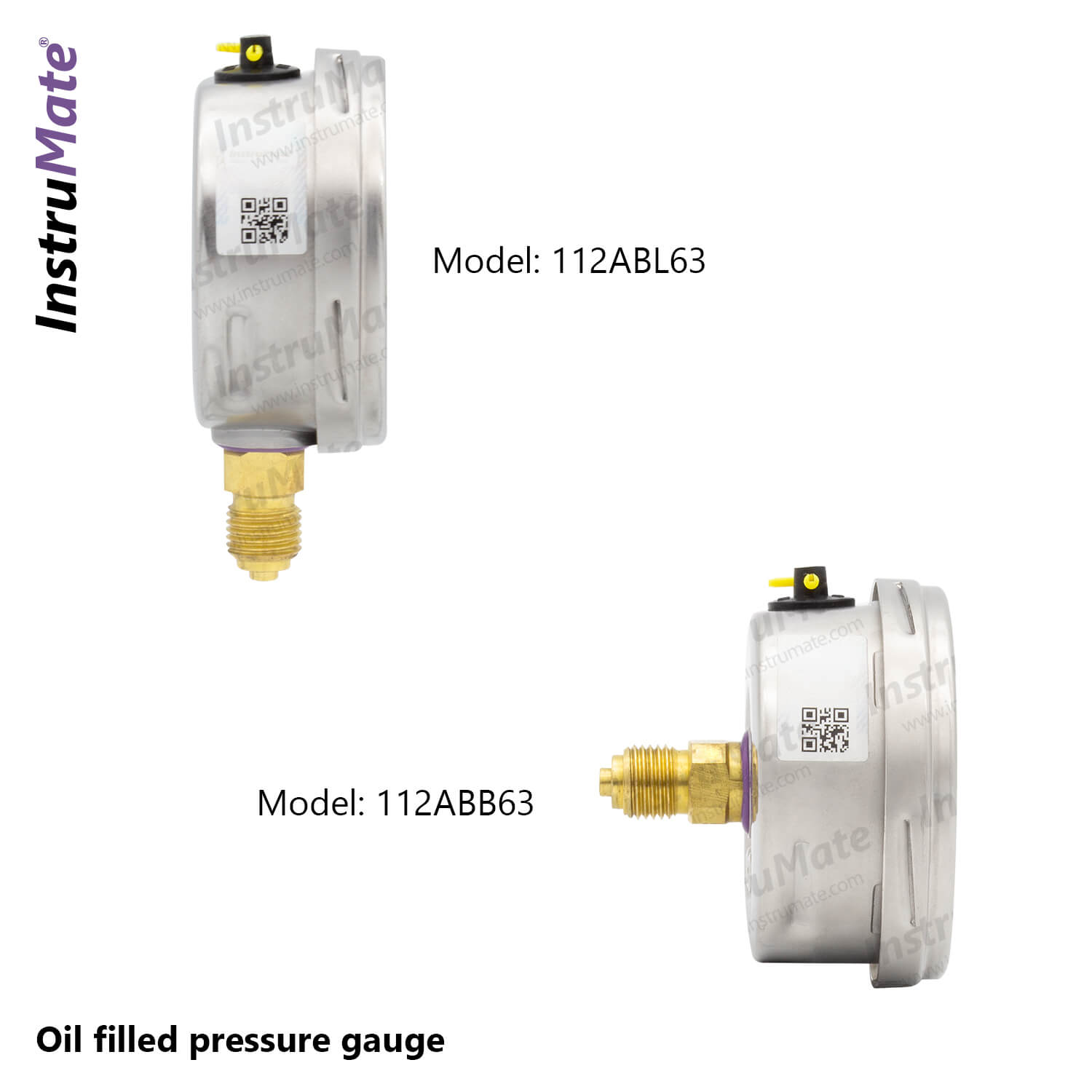

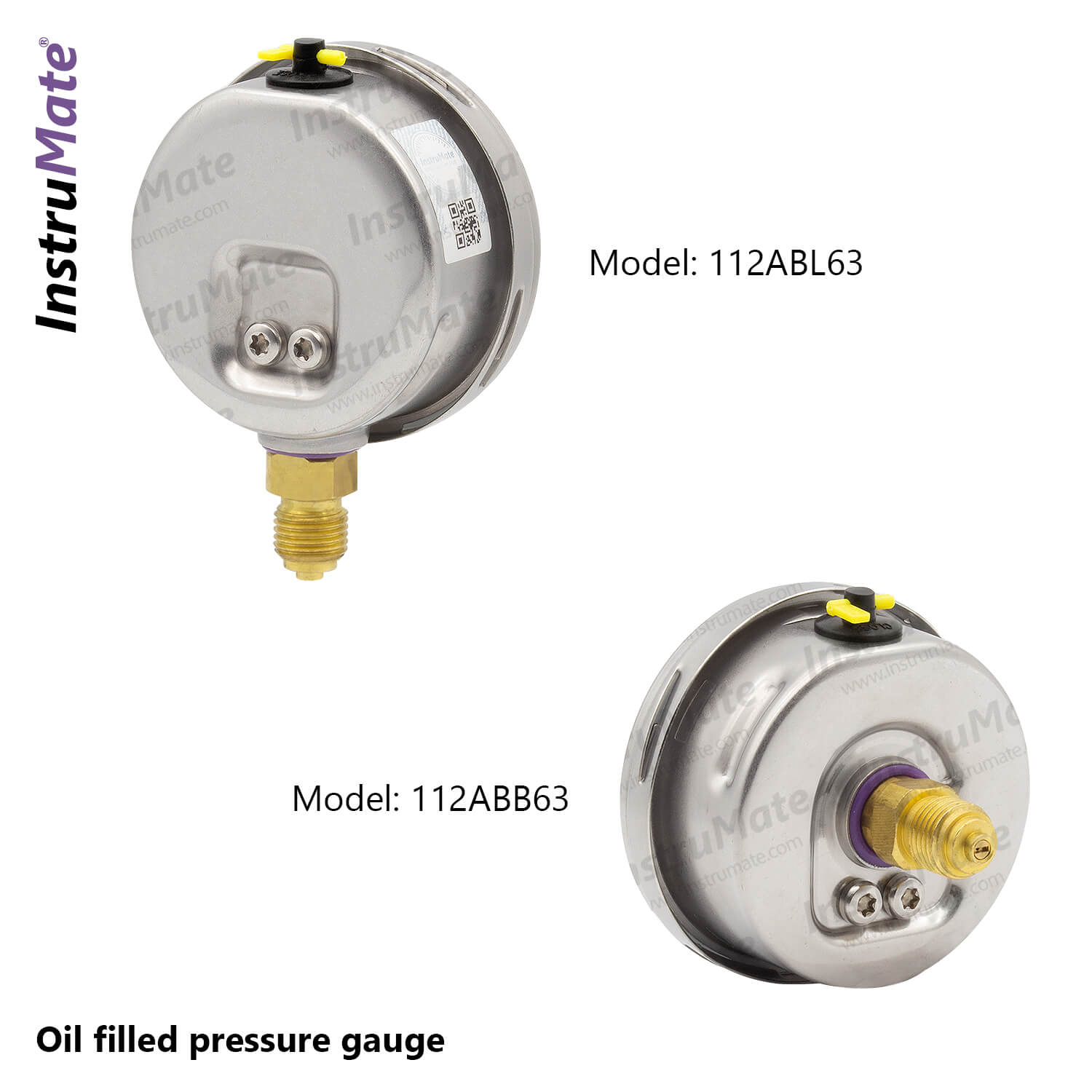

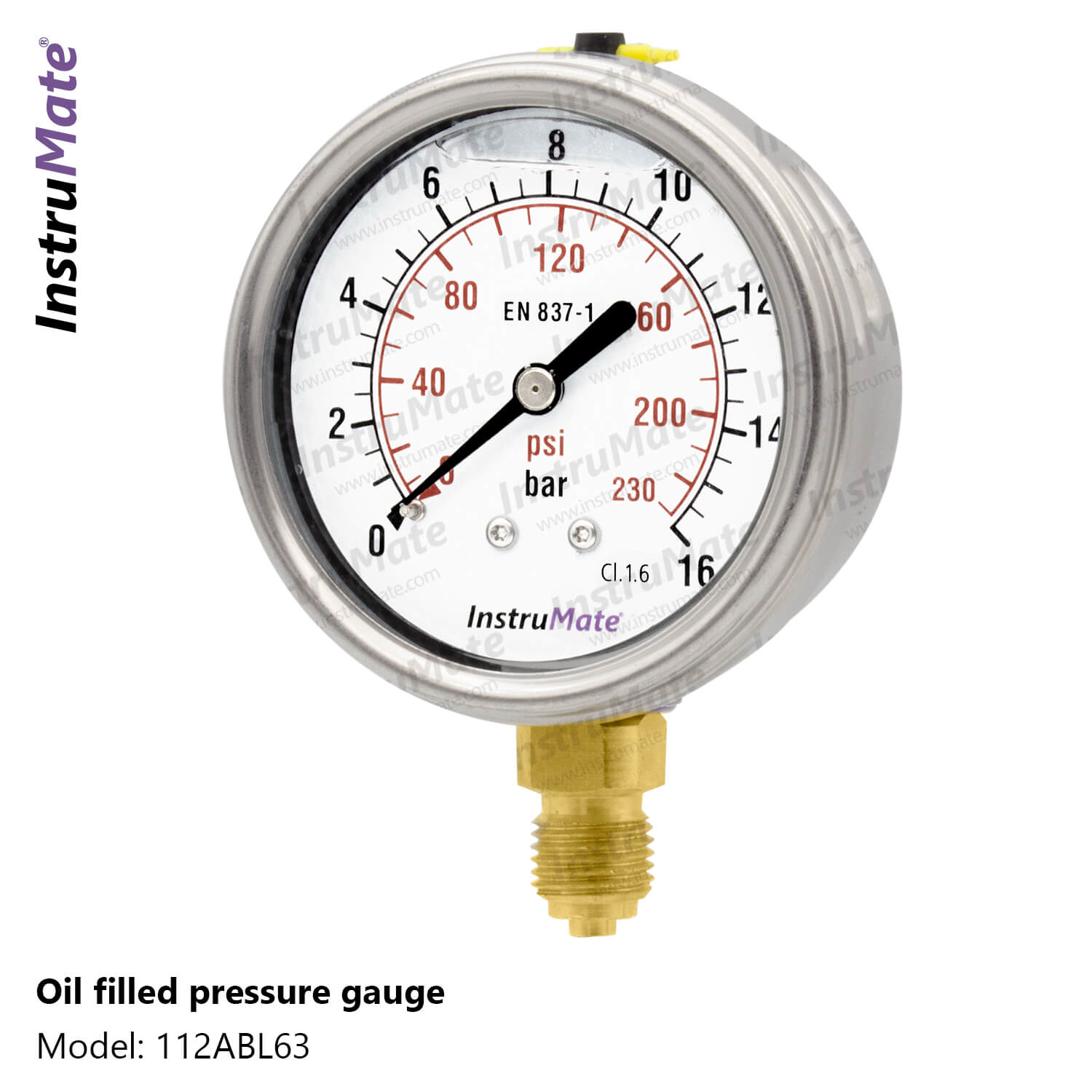

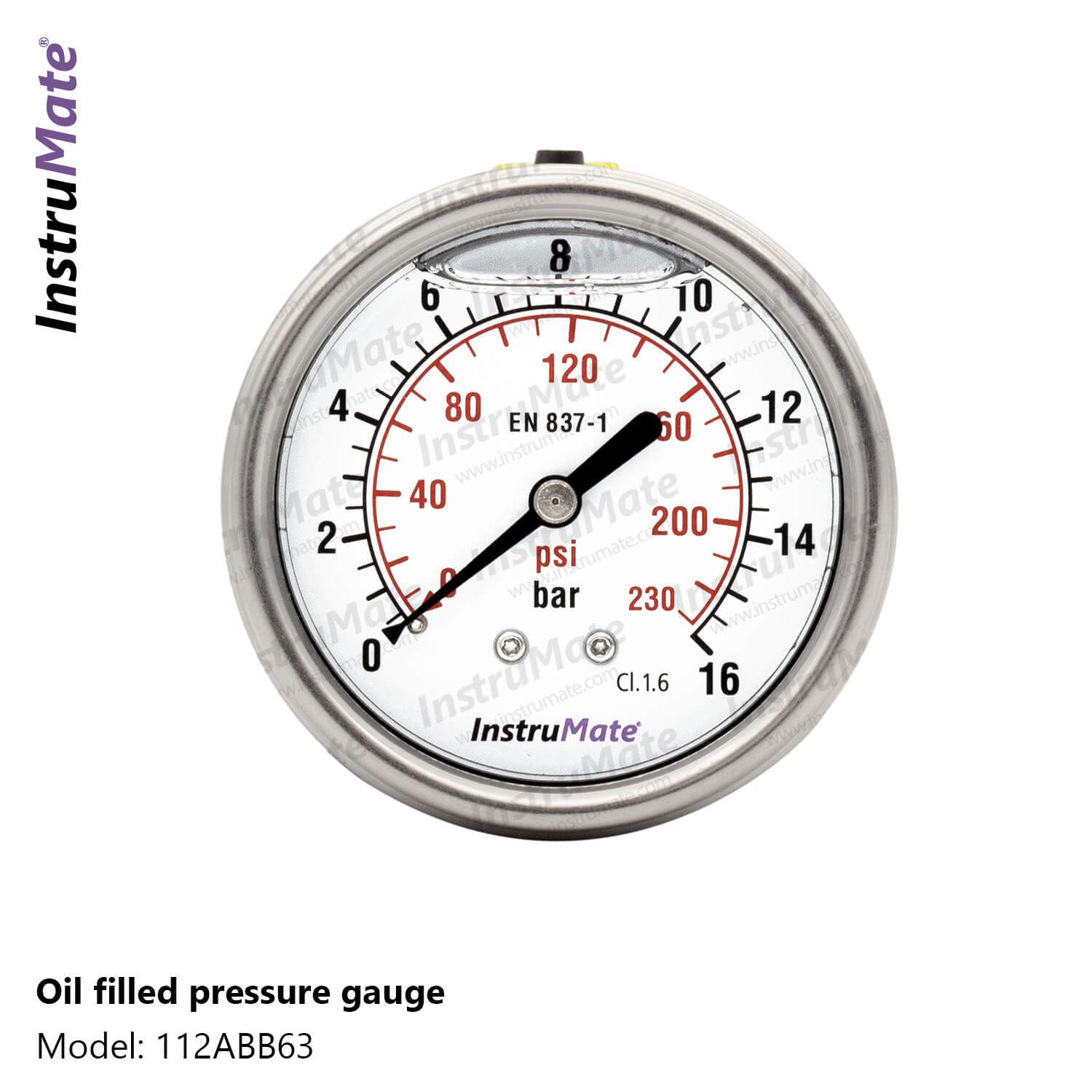

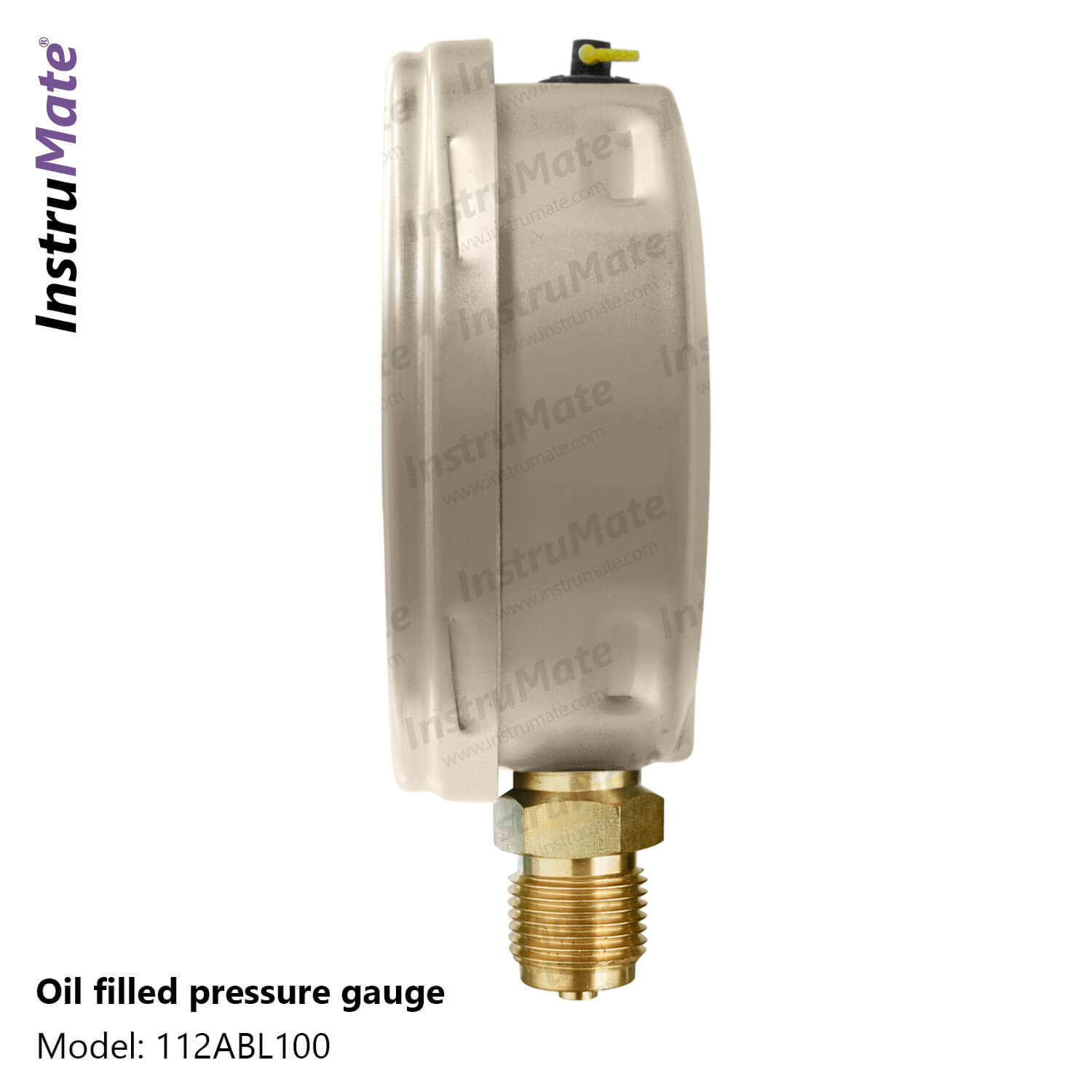

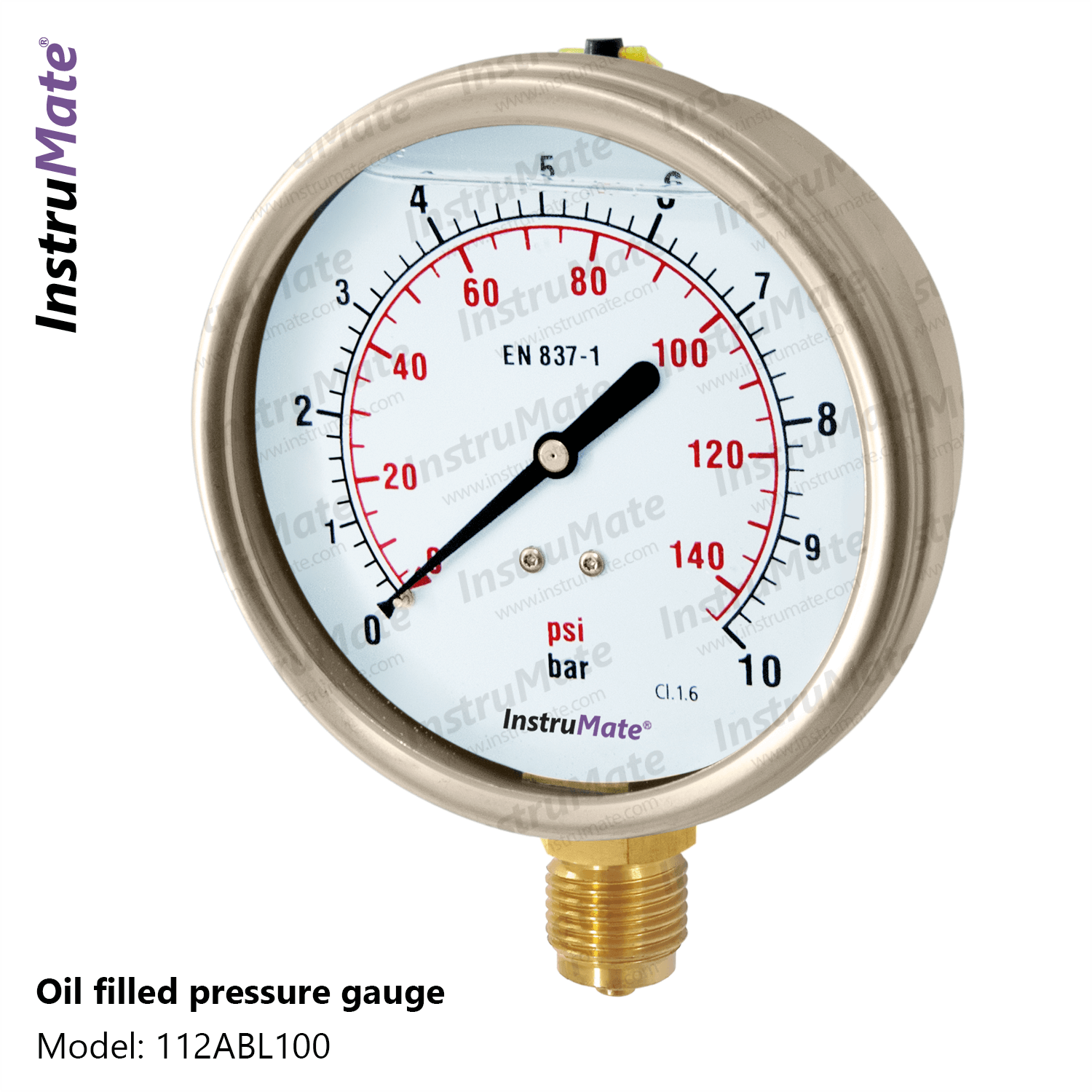

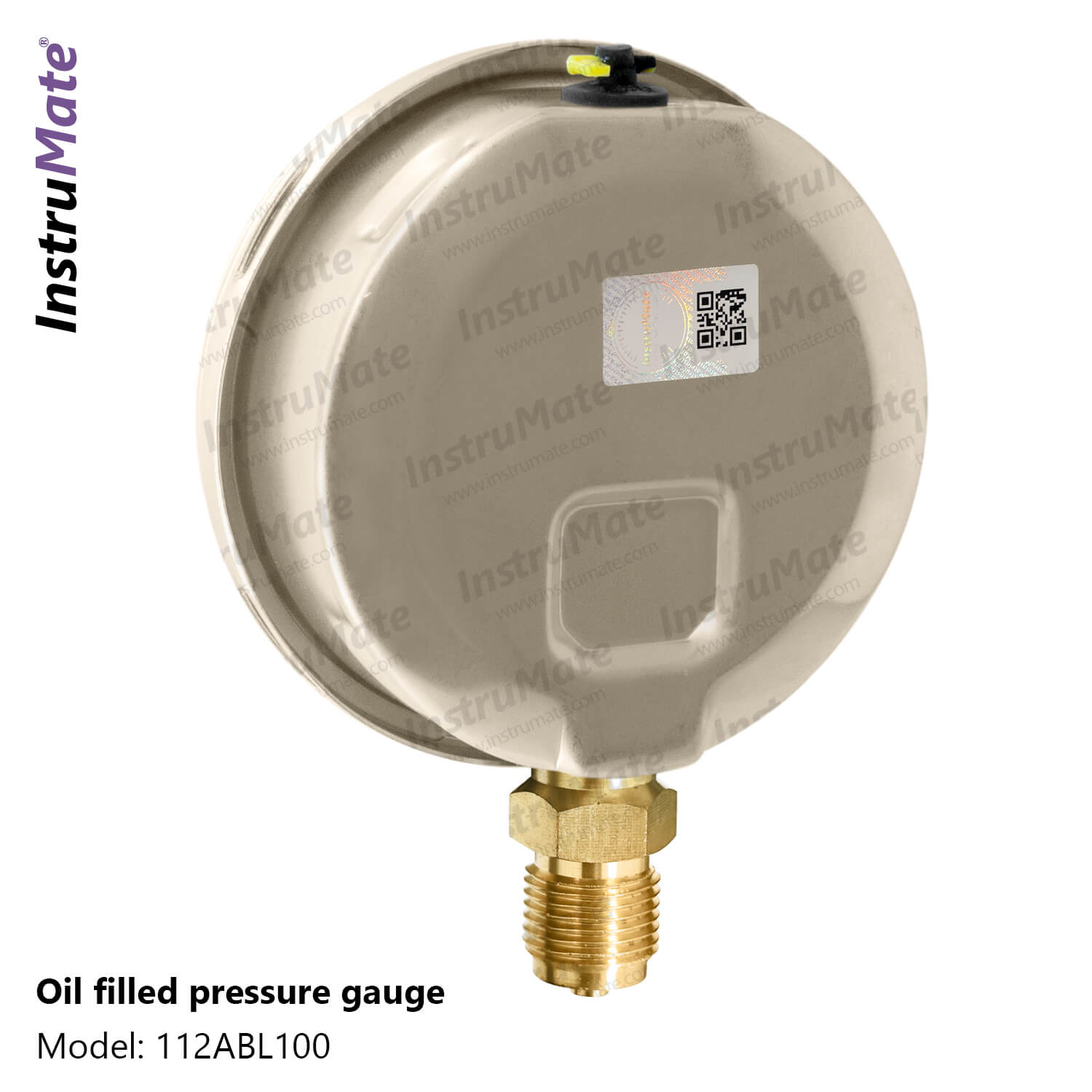

InstruMate group of oil filled pressure gauges covers a series of oil-filled pressure gauges efficient for plants or machineries with pulsating pressures or mechanical vibrations. As sensitive a pressure gauge as might be, vibration threatens its long life span and that is the time InstruMate 112 series come into action. Shocks will not be a serious problem when InstruMate 112AB is responsible for damping their effect. Since oil filled pressure gauges have a copper alloy connection, considerations about their corrosion and clogging is recommended. The model 112AB is constructed from a matte satinless steel case with an outside bayonet bezel. This model has a very strong design. This manometer with special design of case allows you easy panel installation by clamps.

All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.

Application

* Hydraulic systems, pumps and presses

* Measuring needs with sudden or dynamic pressure changes

* Vibrating machineries, diesel engines

* Do not use directly for medias that are viscous, crystallizing and corroding copper alloy.

Special Features

* Re-calibratable and re-adjustable

* Reasonable price for a distinguished quality

* No leakage guaranteed

* High quality spare parts

Specification

Nominal Sizes in mm: 63, 100

Scale Ranges:

      NS 63: 0…1 bar to 700 bar

      NS 100: 0…0.6 bar to 700 bar

      Vacuum & compound ranges

Pressure Limitations:

      Steady: 75% of full scale

      Fluctuating: 65% of full scale

      Over-Pressure: 100% of full scale

Permissible Temperature:

      Ambient: -20…+60 °C

      Medium: +65 °C Maximum

Accuracy: 1.6% of full scale

Window: Instrument Glass

Case Matte SS304 (outside bayonet)

Pressure Element: Copper alloy
