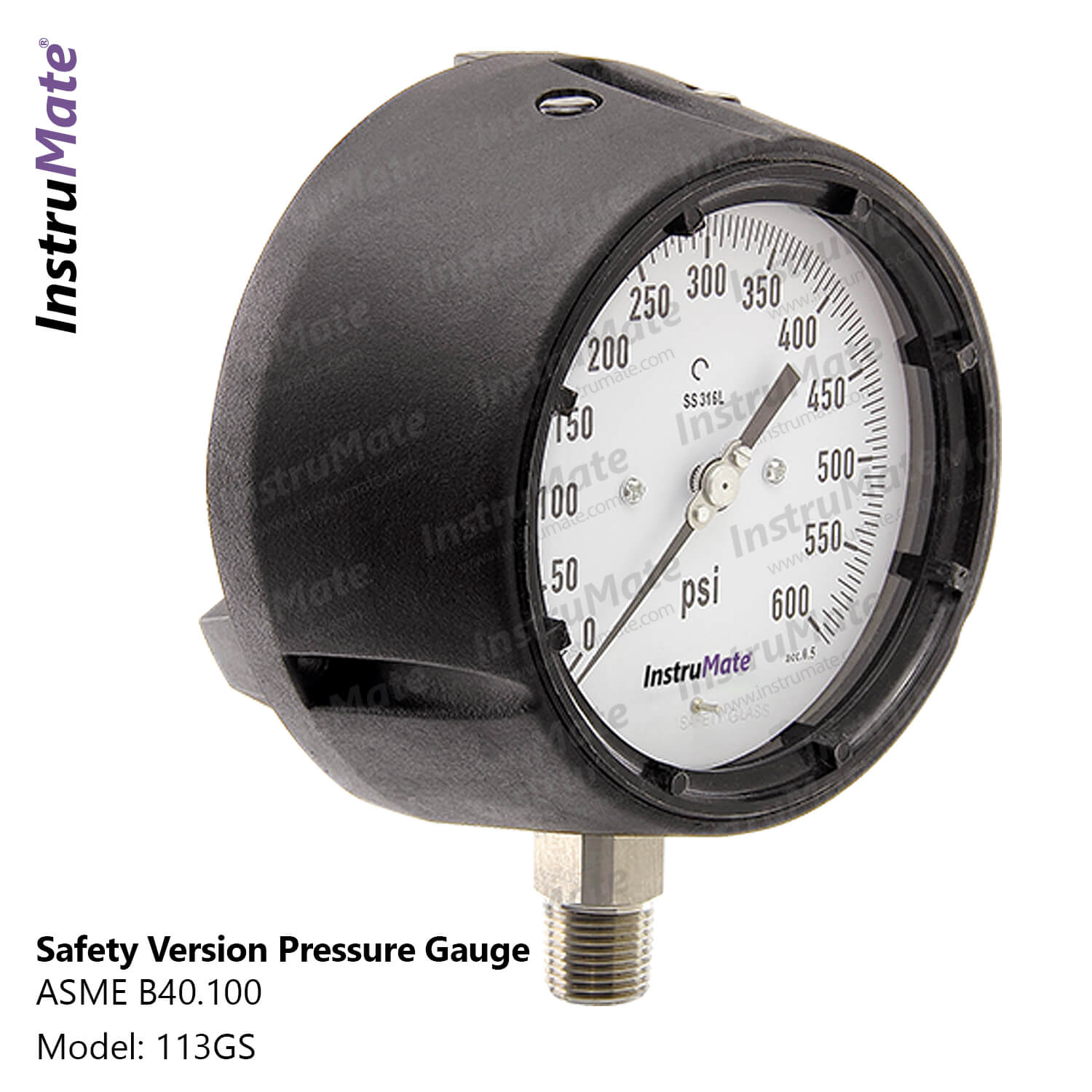

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 113GS

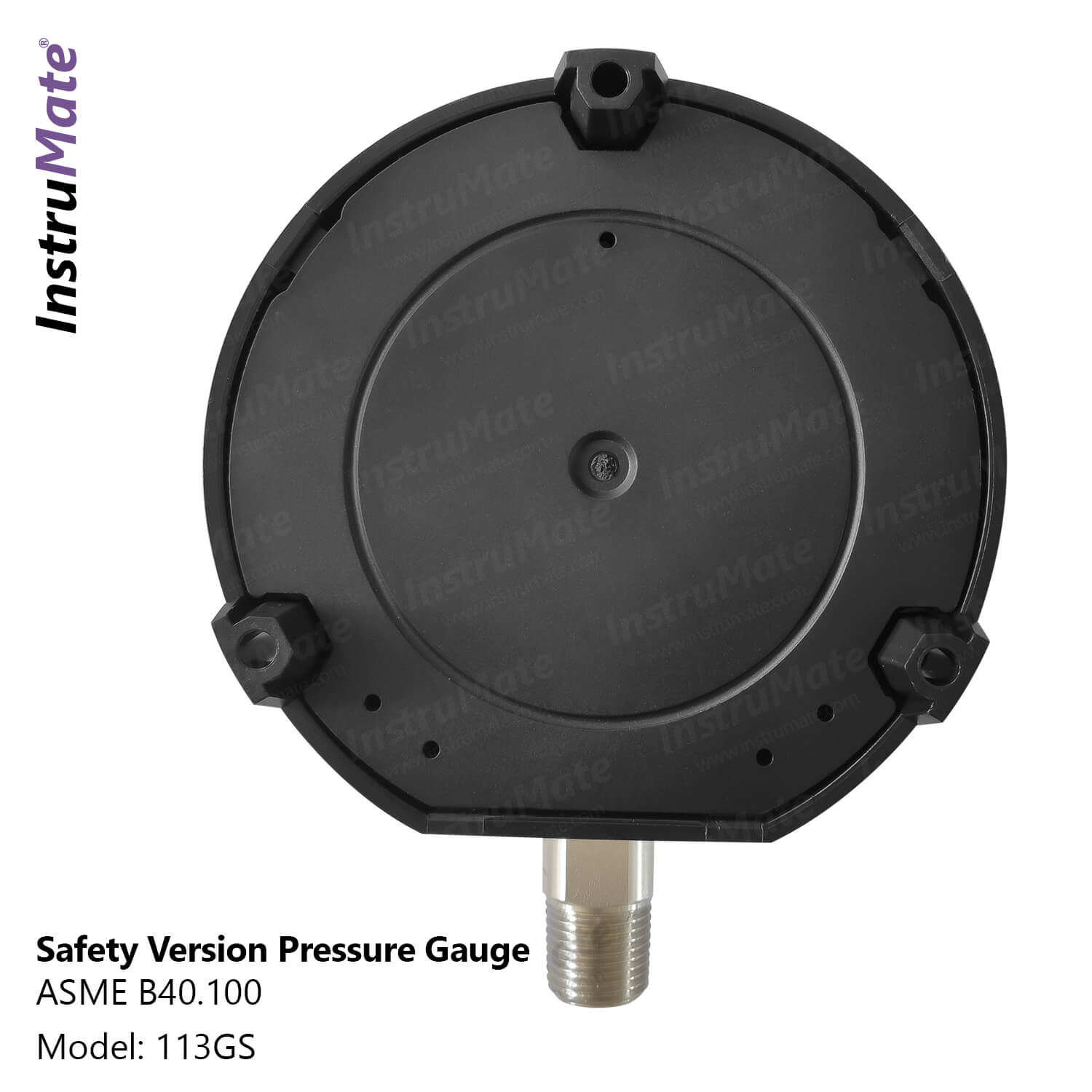

InstruMate 113GS pressure gauge is offered with micro-adjustable pointer in standard version. This high safety pressure gauge is made in compliance with ASME B 40.100 standard. The solid front pressure gauge makes it the best choice for applications requiring safety measures for operator. In case of burst out of the bourdon tube, the blow out disk will open and media will be
ejected from backside of the gauge.

The wetted parts of this accurate and durable safety pressure gauge is SS316. InstruMate 113GS is offered with filling option.


The special damping movement used in this pressure gauge ensures vibration resistance to some extent. For best practice, it is advised to fill the instrument in applications with harsh vibrations.

Applications


 Operations demanding a higher level of safety requirement

 Harsh ambience and severe operation conditions

 Chemical and petrochemical processing industries

 Power plants, mining and offshore

Couple with diaphragm seals

 Do not use directly for medias that are viscous or crystalizing

Special Features

 Shock resistant and accurate

 Highly Resistant plastic case for best corrosion resistance

 Safety version solid baffle wall in compliance with ASME B40.100

Specification

Nominal Size in inch: 4 ½

Scale Ranges: 0…1 bar to 1000 bar

Vacuum & compound ranges

Pressure Limitations: Steady: 100% of full scale

Fluctuating: 90% of full scale

Over-Pressure: 130% of full scale

Pressure Element: SS316

Permissible Temperature: Ambient: -20…+60 °C (filled with glycerin)

-35…+60 °C (unfilled instrument)

Medium: ≤100 °C (filled with glycerin)

≤220 °C (unfilled instrument)

Accuracy: 1% – “1A” according to ASME B40.100

Window: Safety Glass

Case: Polybutylene terephthalate

Movement:

Special vibration damping movement
