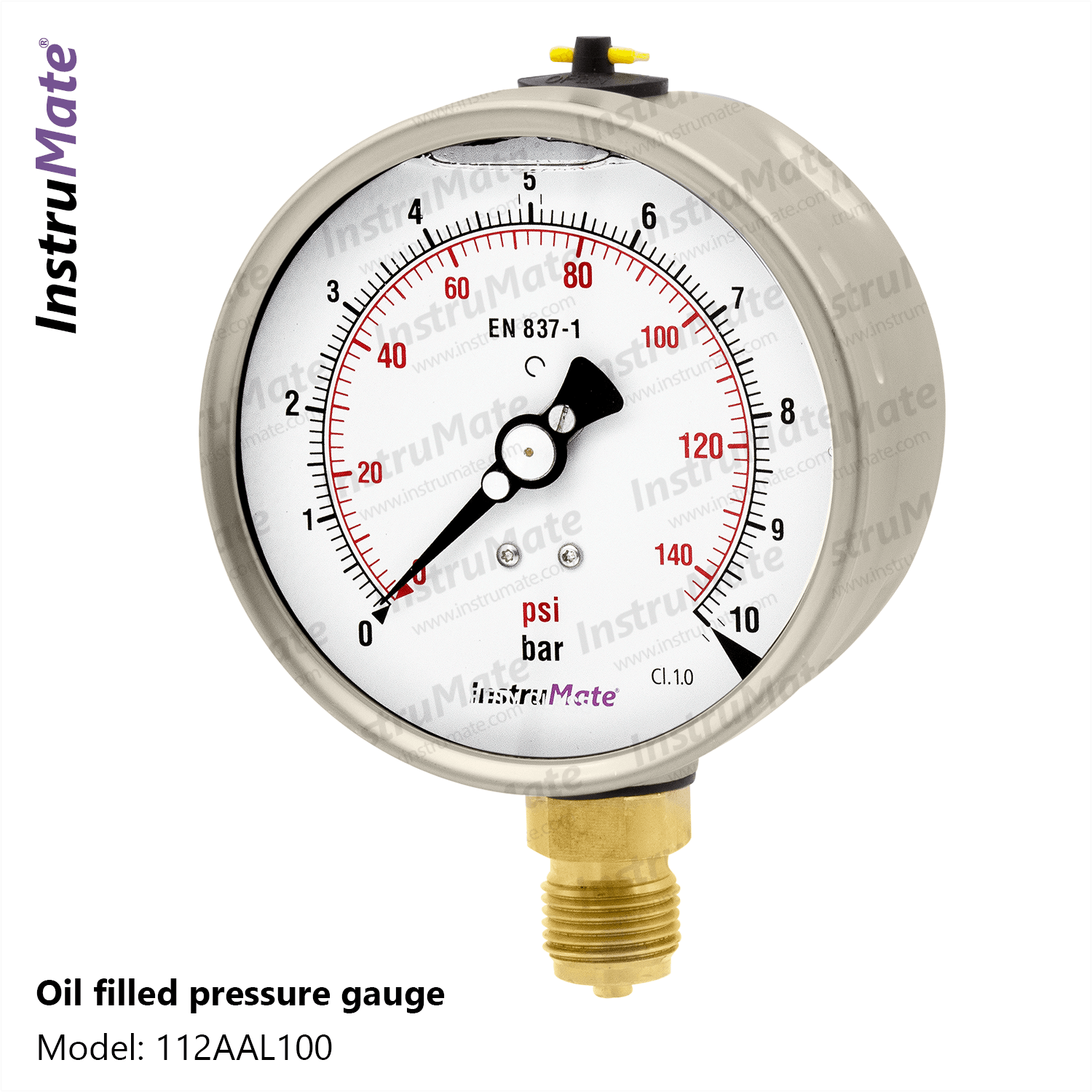

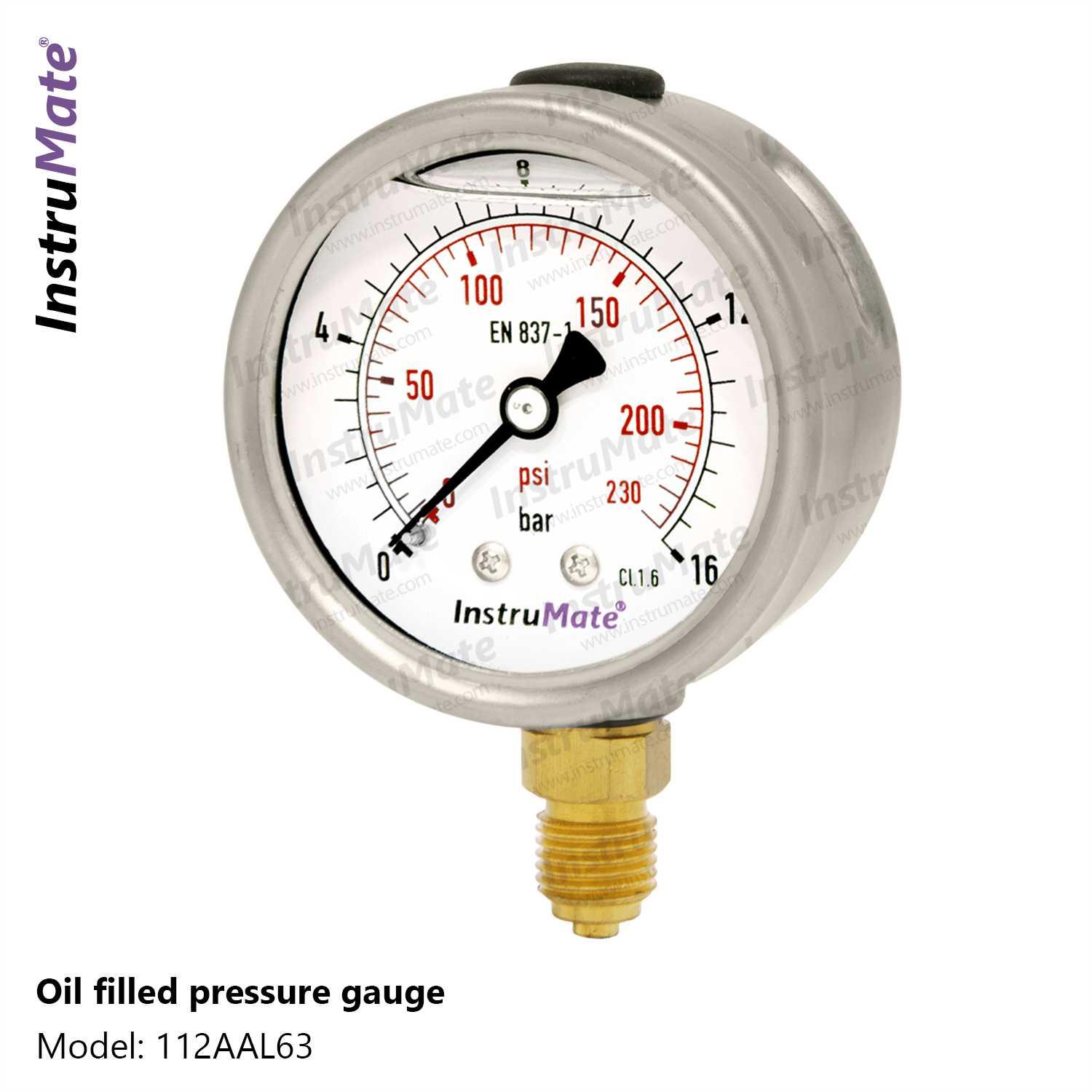

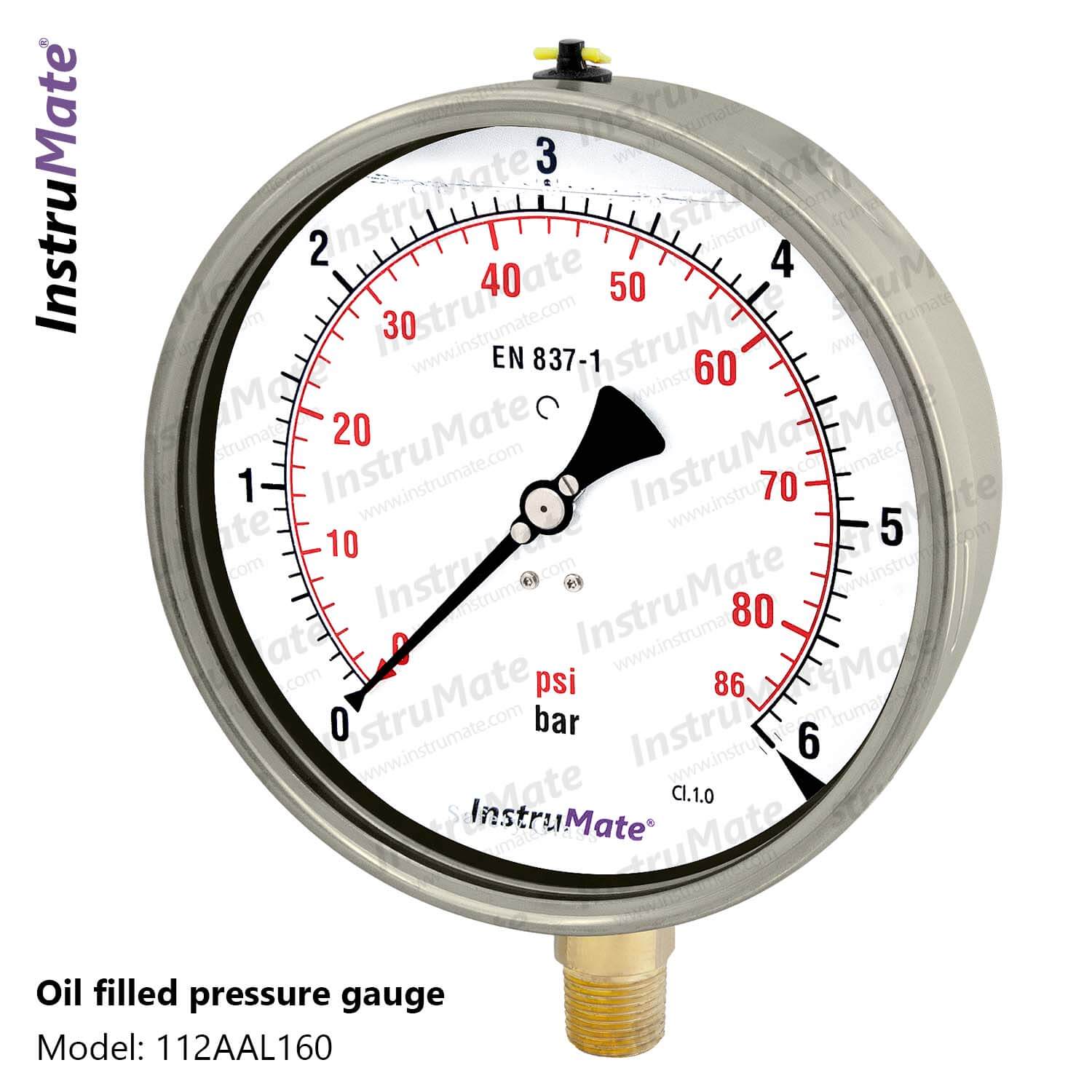

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 112AA

InstruMate group of oil fillable pressure gauge covers a series of oil-filled pressure gauges efficient for plants or machineries with pulsating pressures or mechanical vibrations. As sensitive a pressure gauge as might be, vibration threatens its long life span and that is the time InstruMate 112 series come into action.

InstruMate 112AA is not only shock resistant when filled, but also it has a heavy duty mechanism for more demanding applications (only with dial size 100 and 160mm) with the accuracy of 1% according to EN837-1. A safety glass and a micro-adjustable pointer are other advantages which distinguish it from average class of oil filled gauges in 100, 160mm dial size.

Since oil filled pressure gauges have a copper alloy connection, considerations about their corrosion and clogging is recommended.

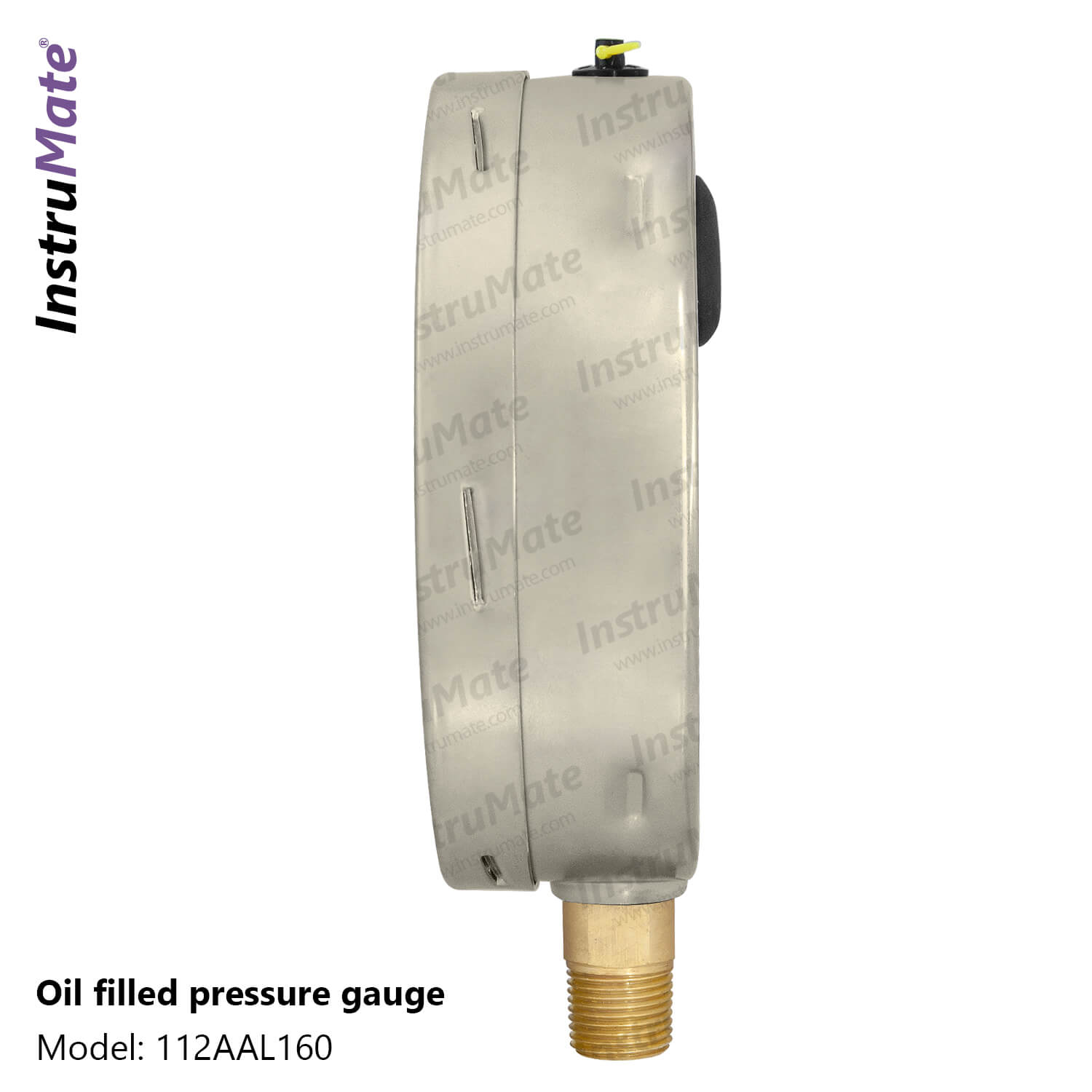

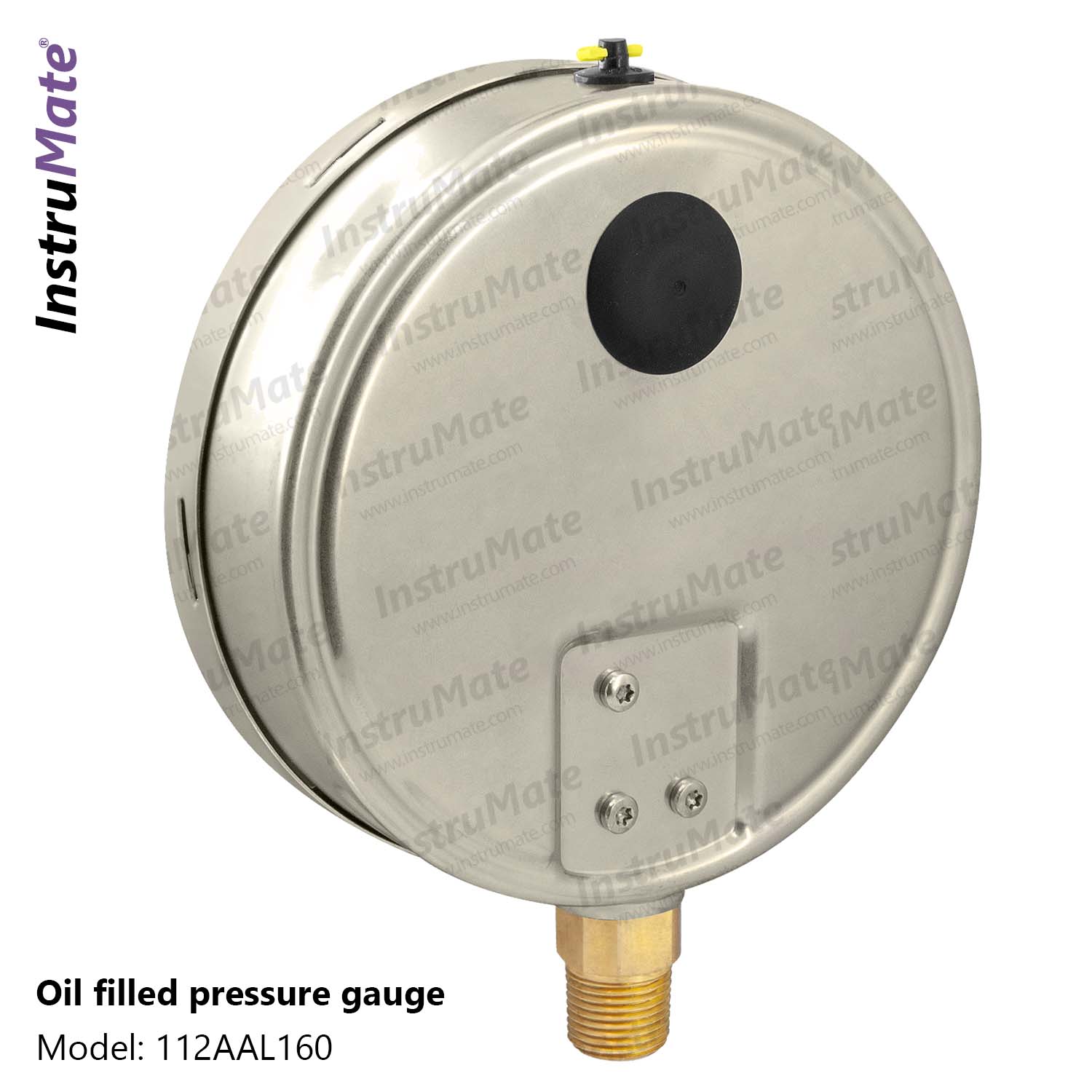

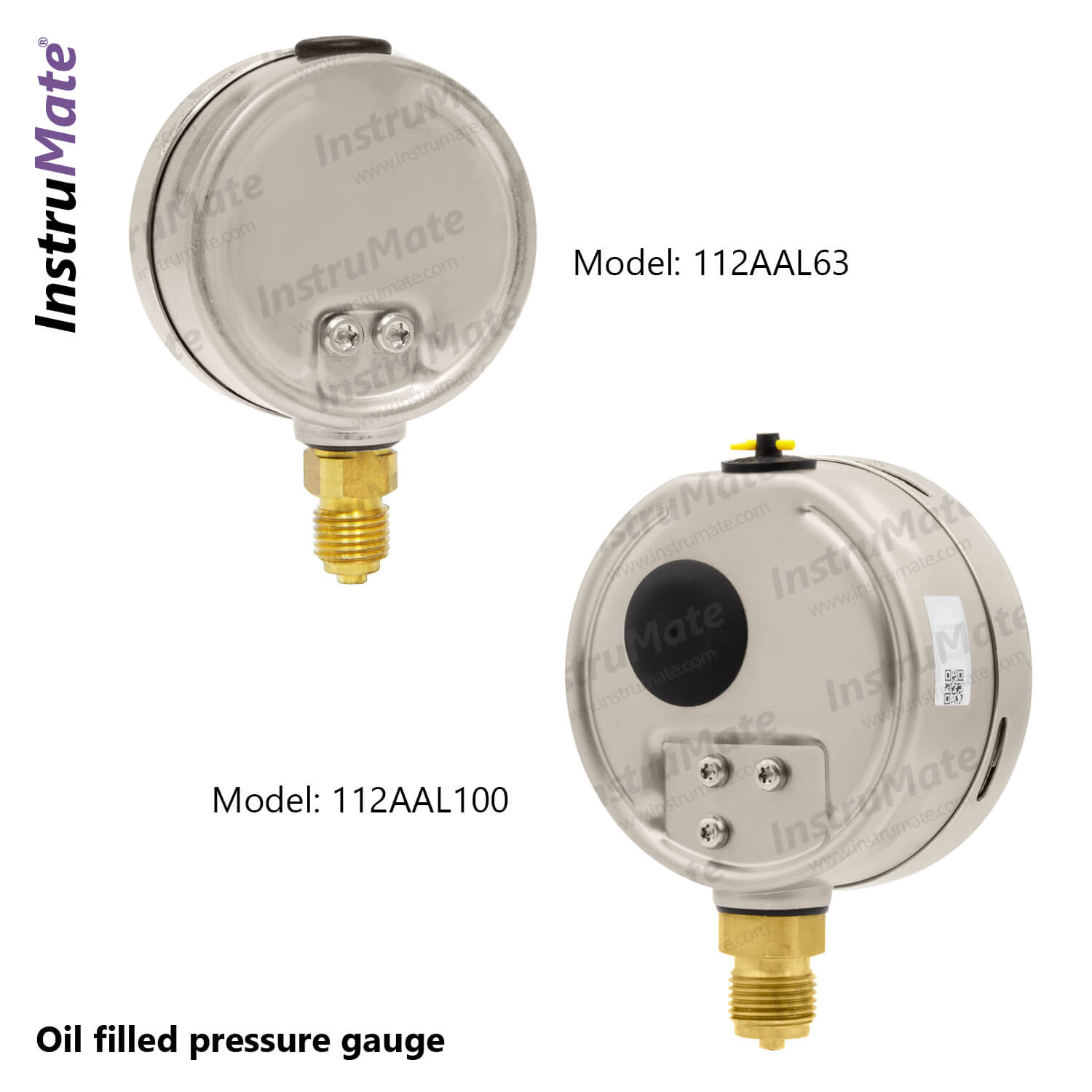

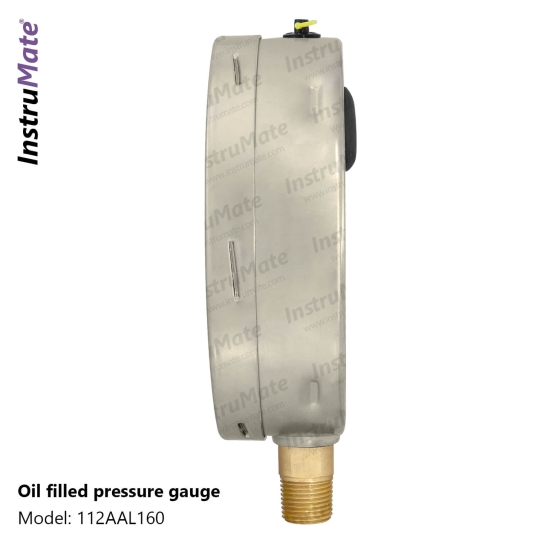

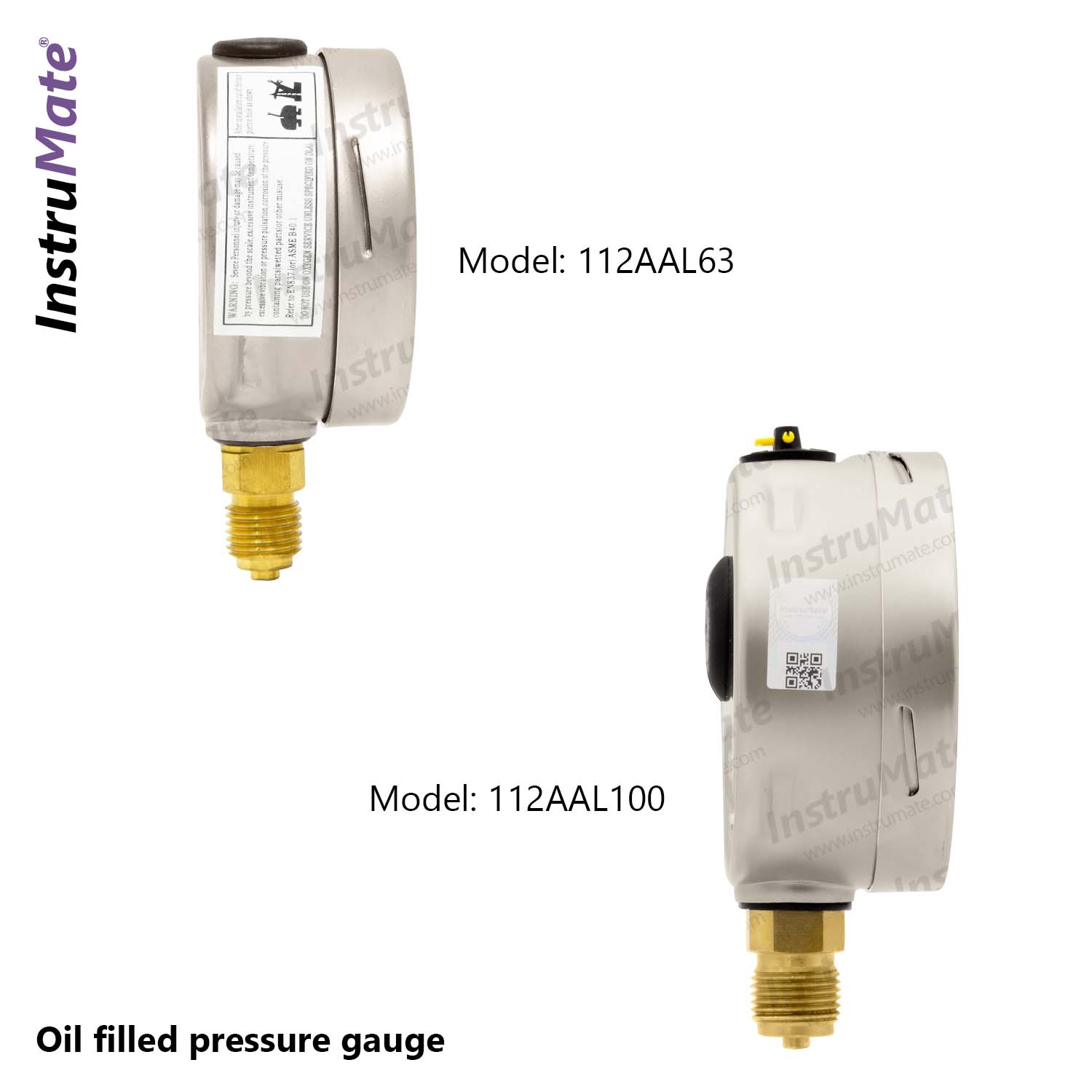

The model 112AA is constructed from a matte stainless steel case with a DIN type bayonet bezel.

All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.

Application

* Hydraulic systems, pumps and presses

* Measuring needs with sudden or dynamic pressure changes

* Vibrating machineries, diesel engines

* Do not use directly for medias that are viscous, crystallizing and corroding copper alloy

Special Features

* Re-calibratable and re-adjustable

* Popular bayonet bezel design

* No leakage guaranteed

* Heavy duty mechanism for dial sizes 100 & 160mm

Specification

Nominal Sizes in mm: 63, 100, 160

Scale Ranges:

      NS 63: 0…1 bar to 700 bar

      NS 100, 160: 0…0.6 bar to 700 bar

      Vacuum & compound ranges

Pressure Limitations:

NS 63

      Steady: 75% of full scale

      Fluctuating: 65% of full scale

      Over-Pressure: 100% of full scale

NS 100, 160 (Heavy duty)

      Steady: 100% of full scale

      Fluctuating: 85% of full scale

      Over-Pressure: 130% of full scale

Pressure Element: Copper alloy

Permissible Temperature:

      Ambient: -20…+60 °C

      Medium: +65 °C Maximum

Accuracy: NS 63: 1.6% of full scale

NS 100, 160: 1% of full scale

Window: NS 63: Instrument Glass

NS 100, 160: Safety Glass

Case: Matte SS304 (DIN type)
