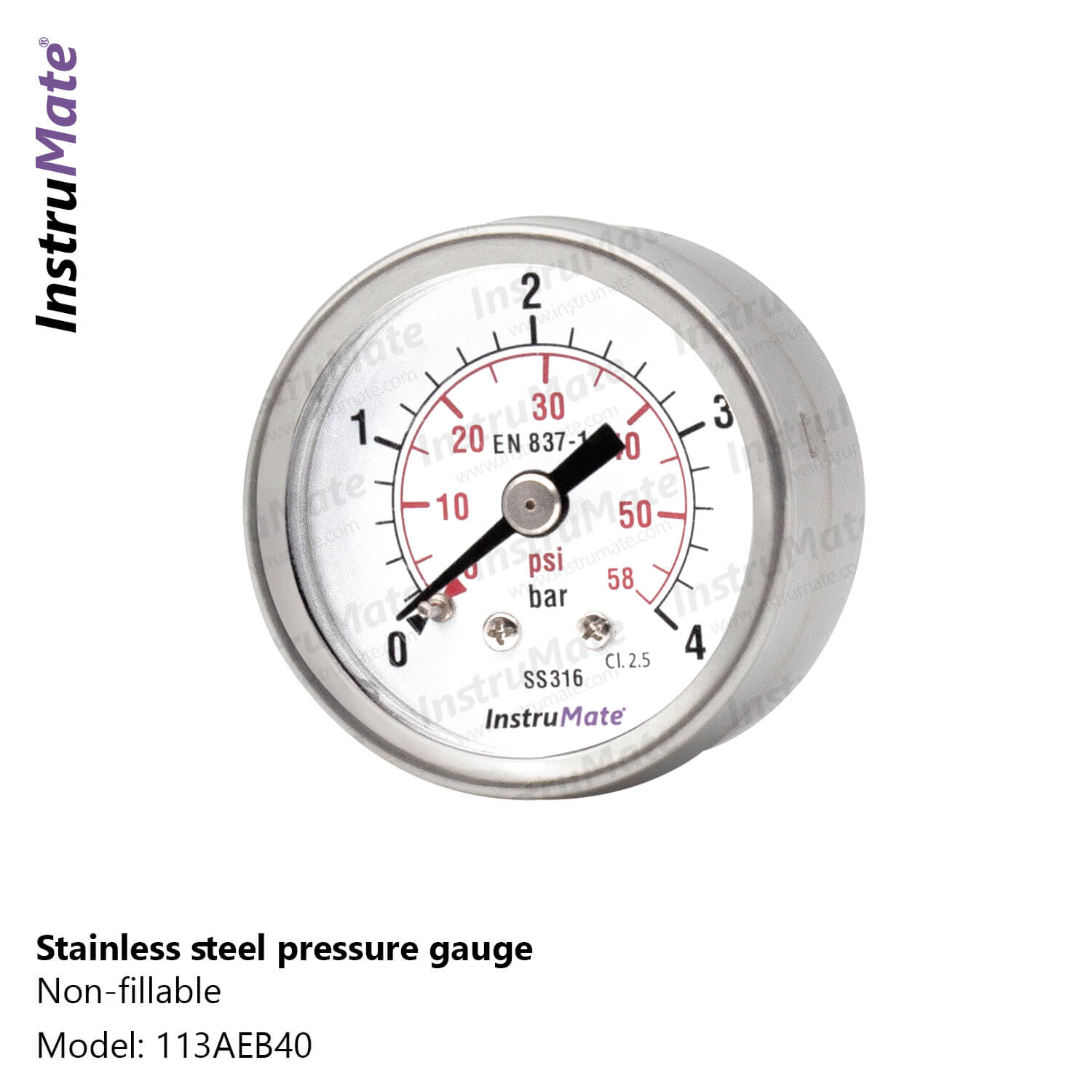

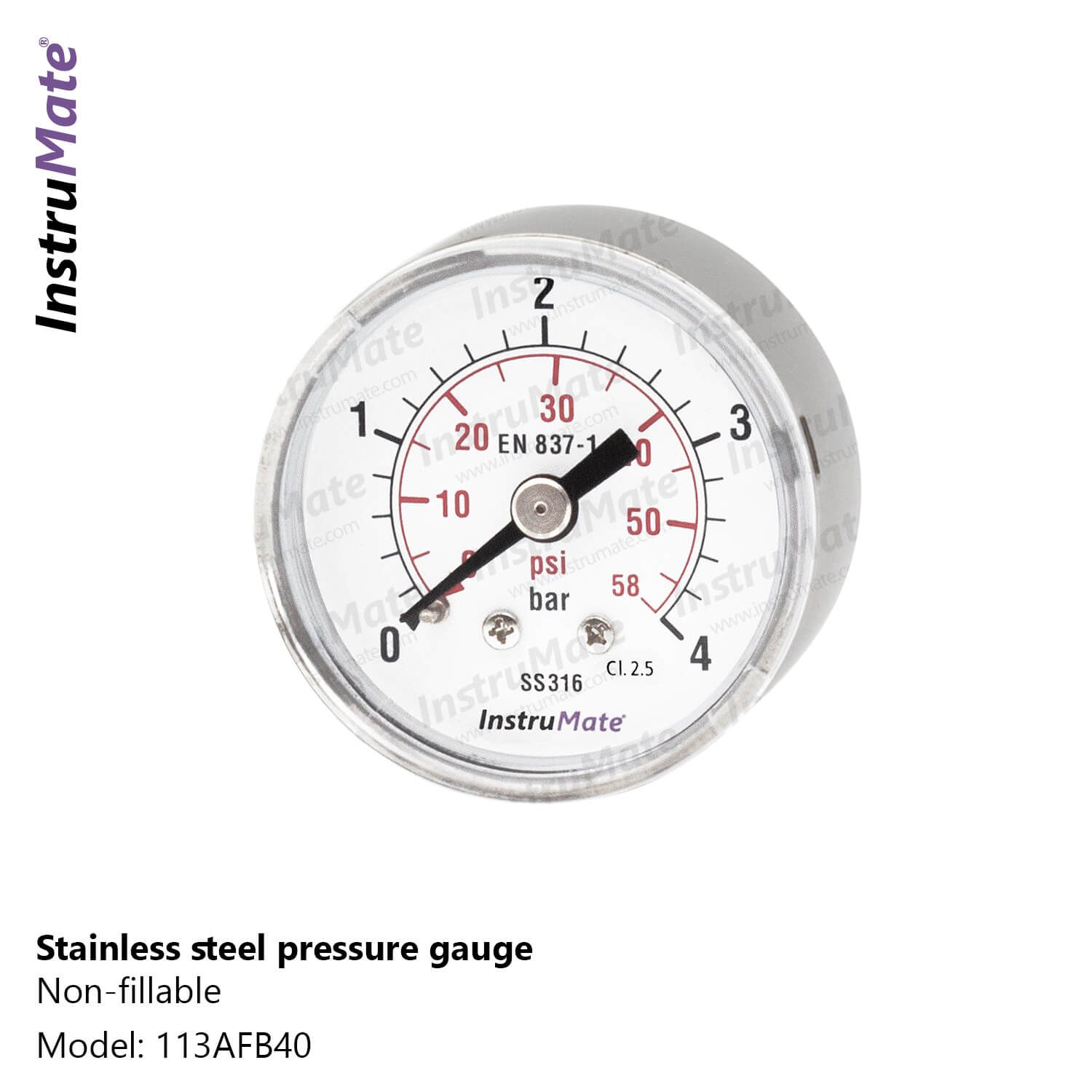

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 113AF

InstruMate model 113AF works well for measurement needs in harsh

environments demanding excellent material but still seeking economy price.

This manometer with its minimal design has multitude of applications some of which are machine making and also failure alarm indicator on gas cylinders. However the gauge is non-fillable.

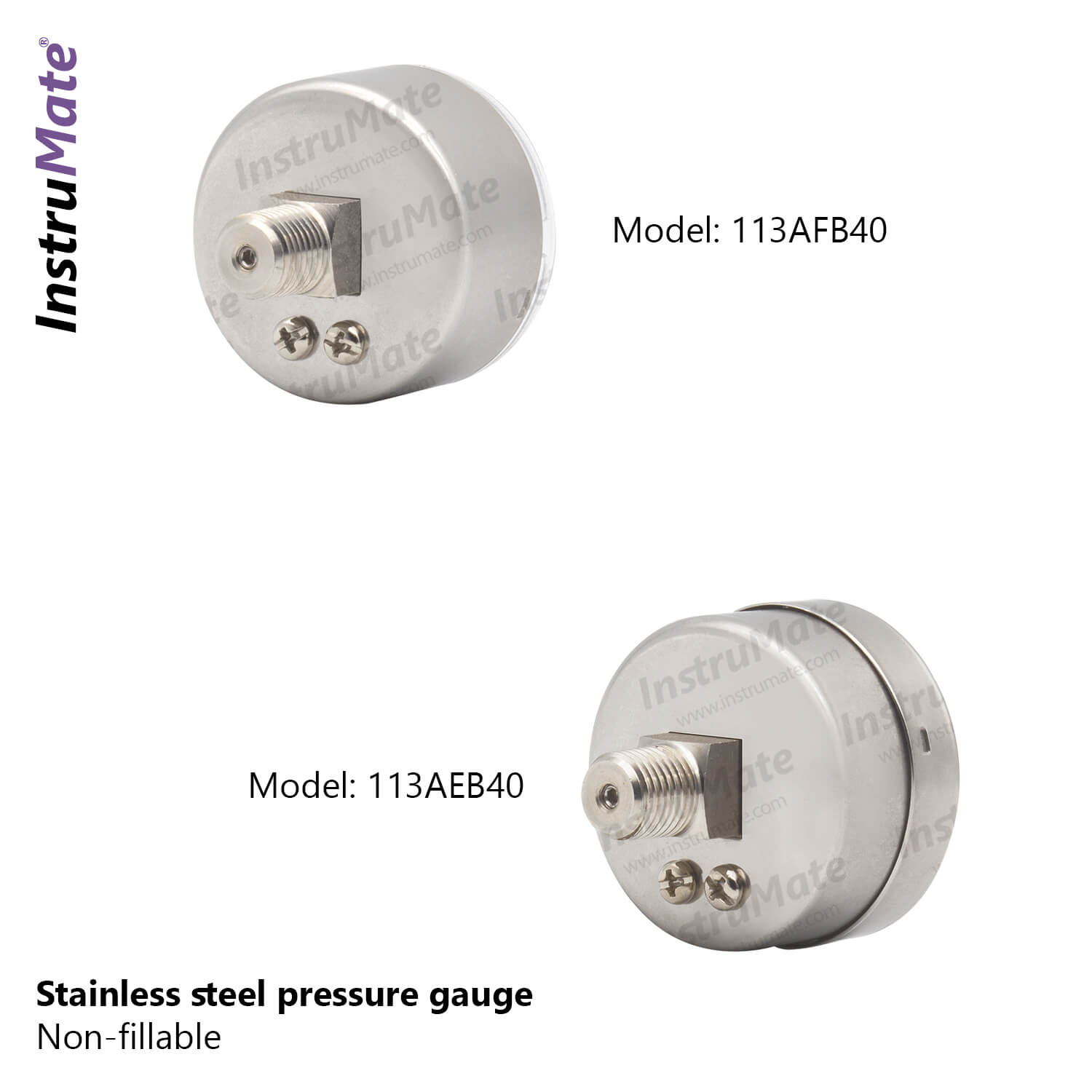

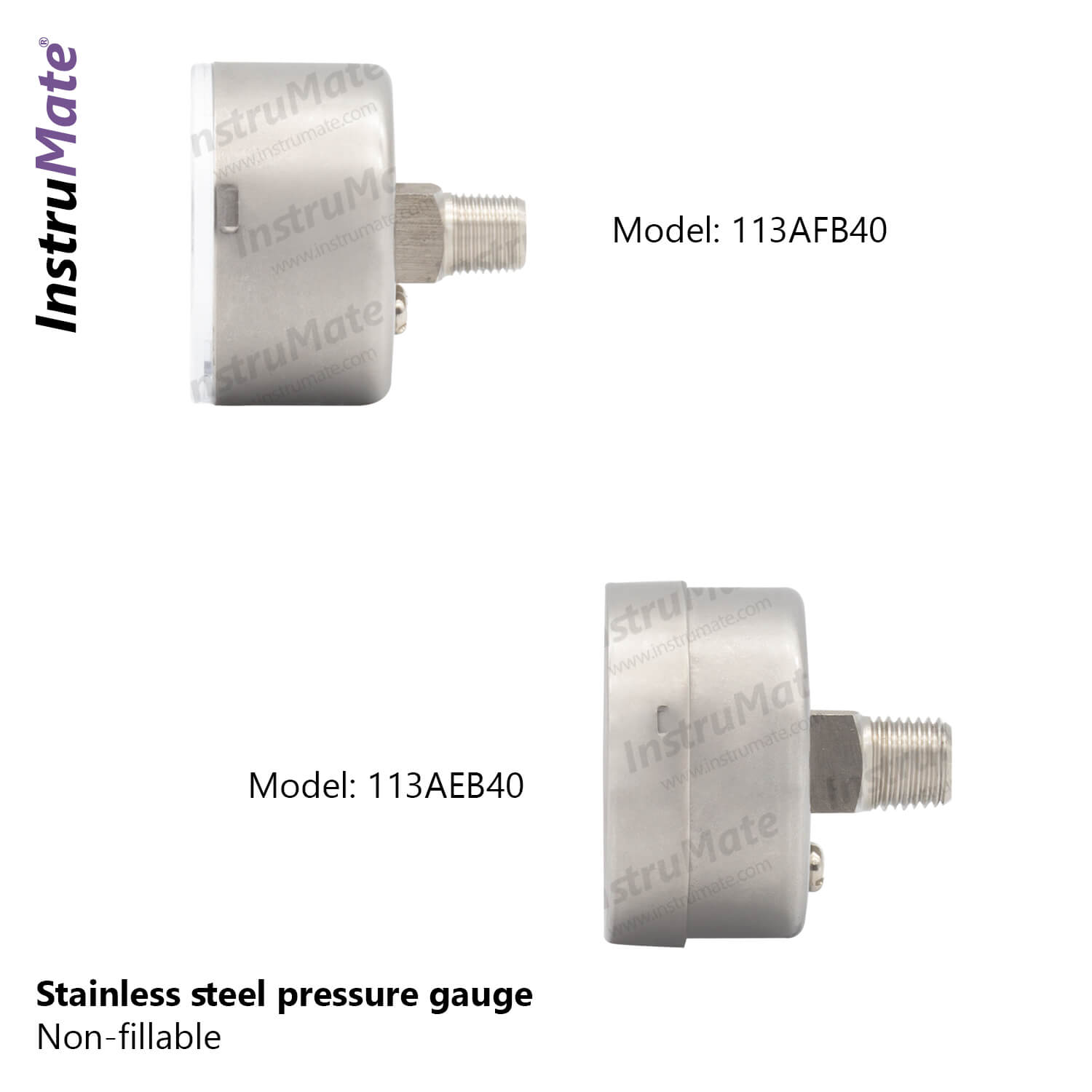

113AF has stainless steel 316 case and connection with a snap-in lens which is both scratch-r esistant and break-resistant.

All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.

Applications

Corroding gas and liquids

Pneumatics

Harsh or humid environments

General purpose machineries

Do not use directly for medias that are viscous, crystallizing and corroding stainless steel

Special Features

Special window material: scratch-resistant, break-resistant

Minimal Case design

Reliable stainless steel material for wetted parts and case

Specification

Nominal Sizes in mm: 40, 50

Scale Ranges: 0…1 bar to 600 bar

Vacuum & compound ranges

Pressure Limitations: Steady: 75% of full scale

Fluctuating: 65% of full scale

Over-Pressure: 100% of full scale

Pressure Element: SS316

Permissible Temperature: Ambient: -30…+60 °C

Medium: +95 °C Maximum

Accuracy: NS 40: 2.5% of full scale

NS 50: 1.6% of full scale

Window: Snap-in Lens, Break-resistant, Scratch-resistant

Case & Wetted Parts: SS316, non-fillable design

Movement: Stainless steel
