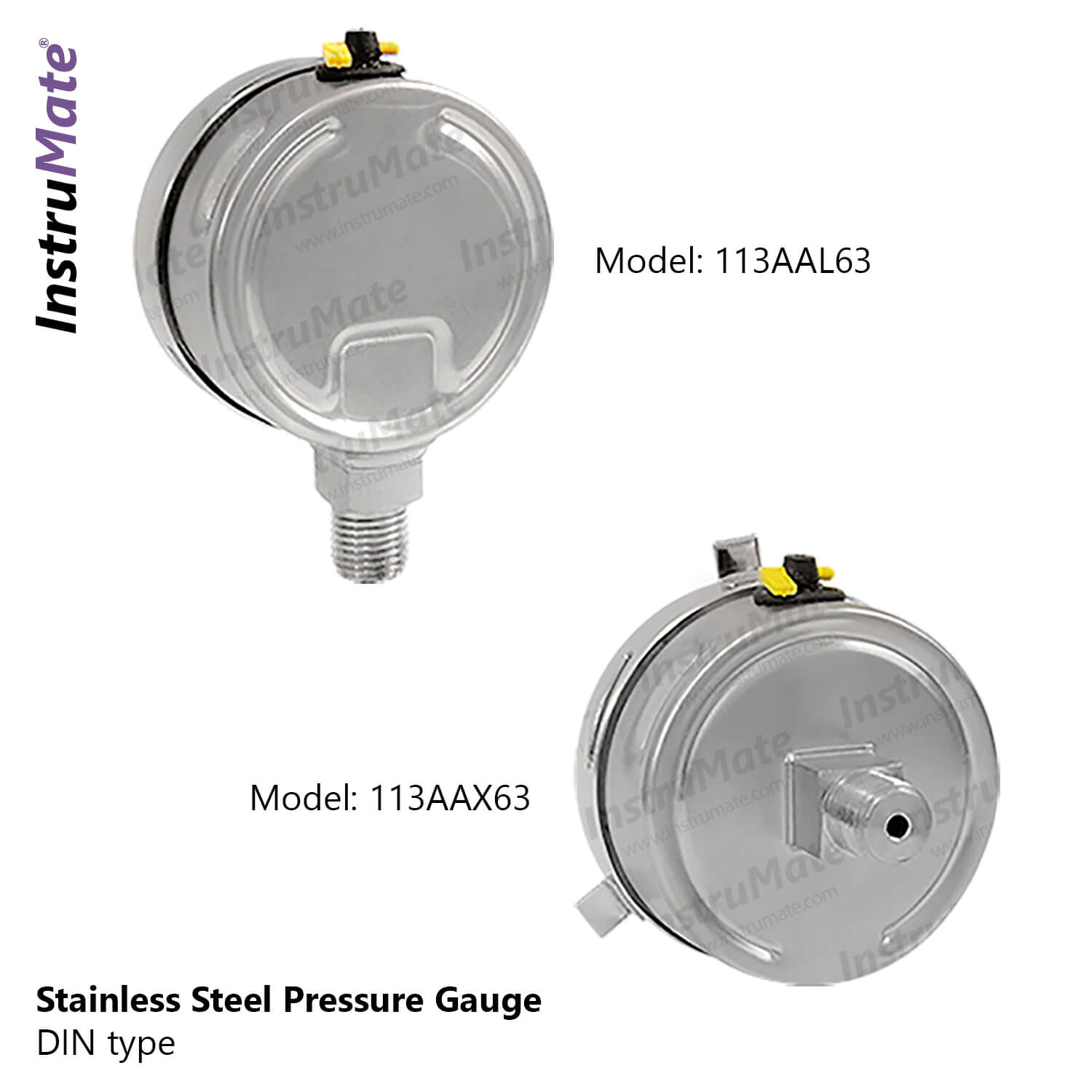

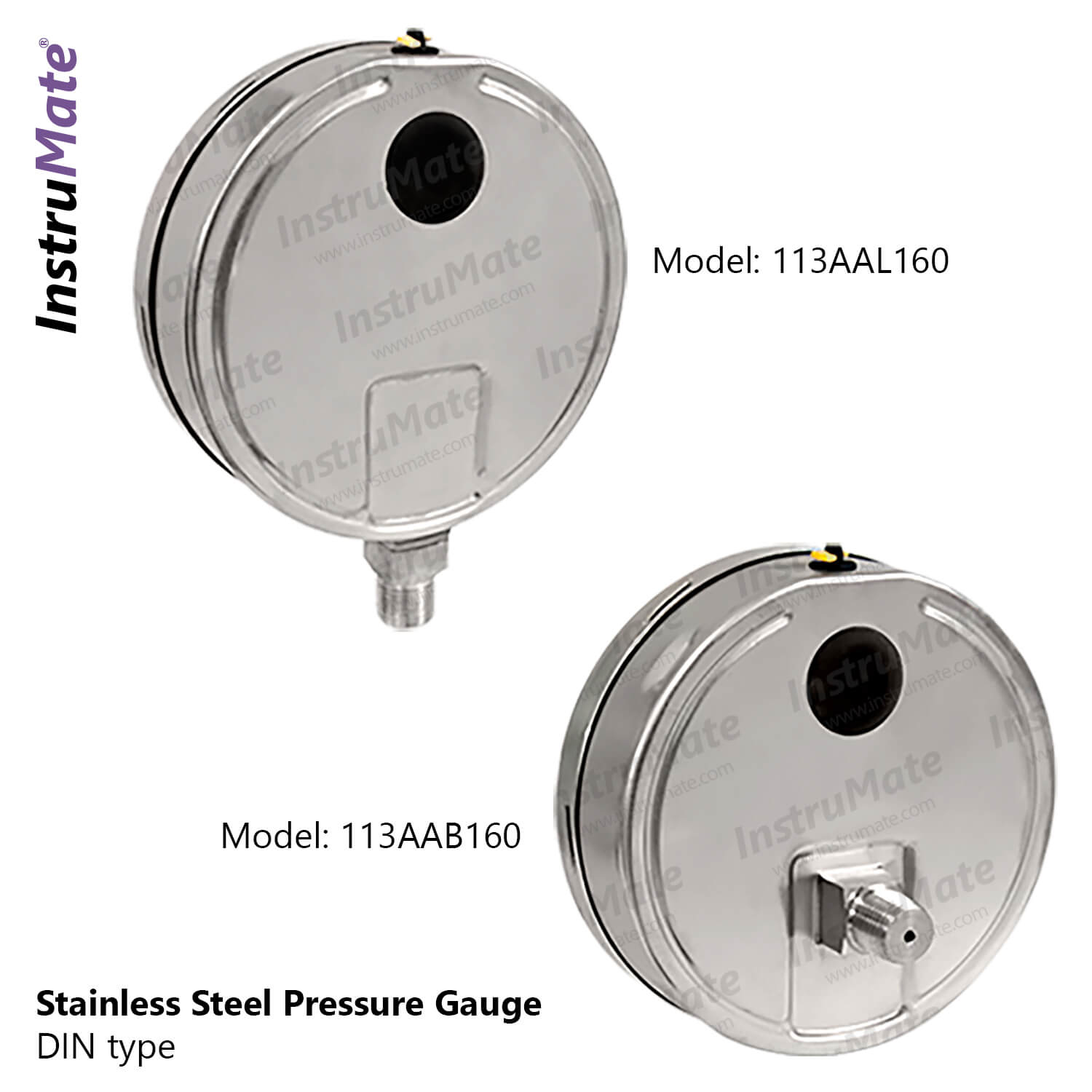

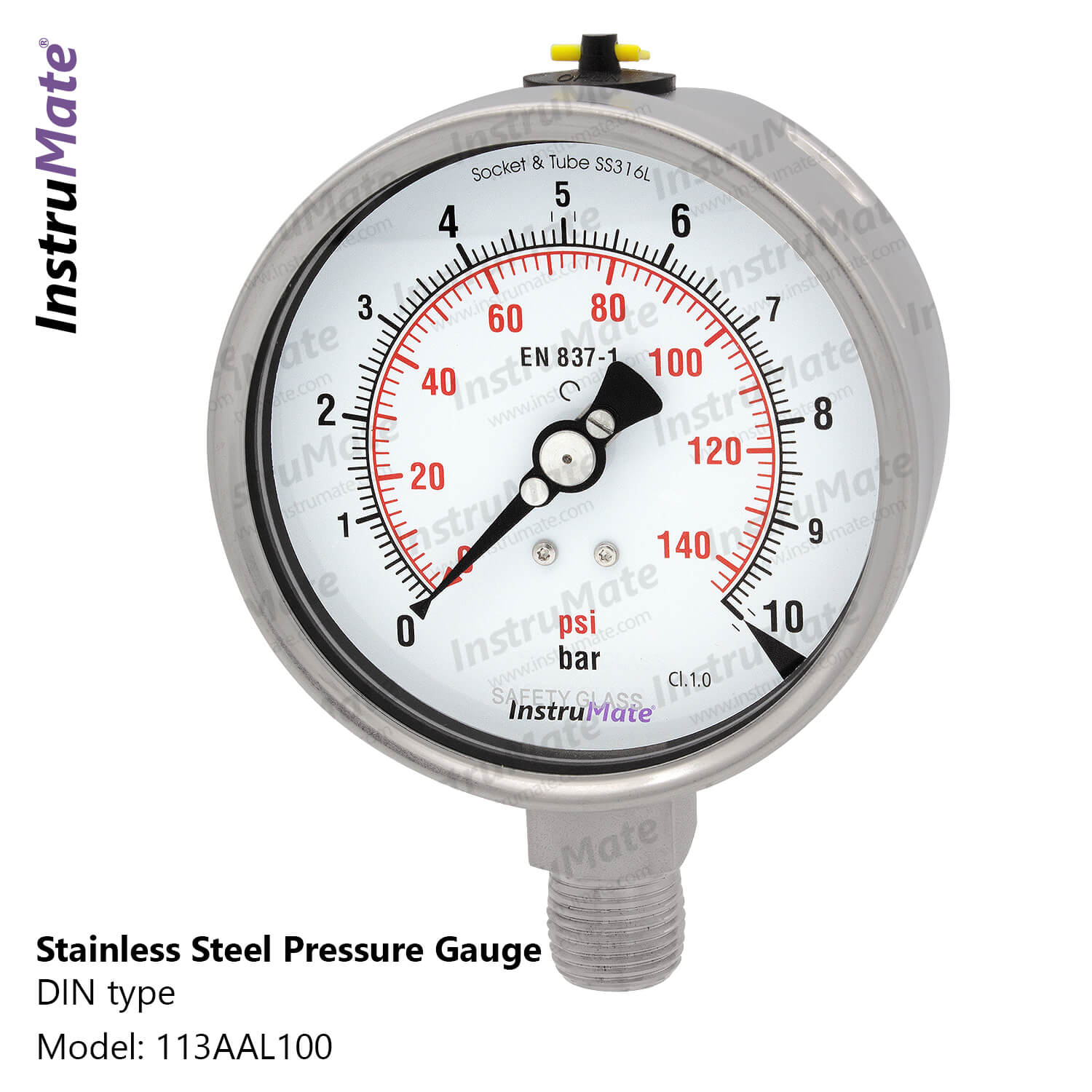

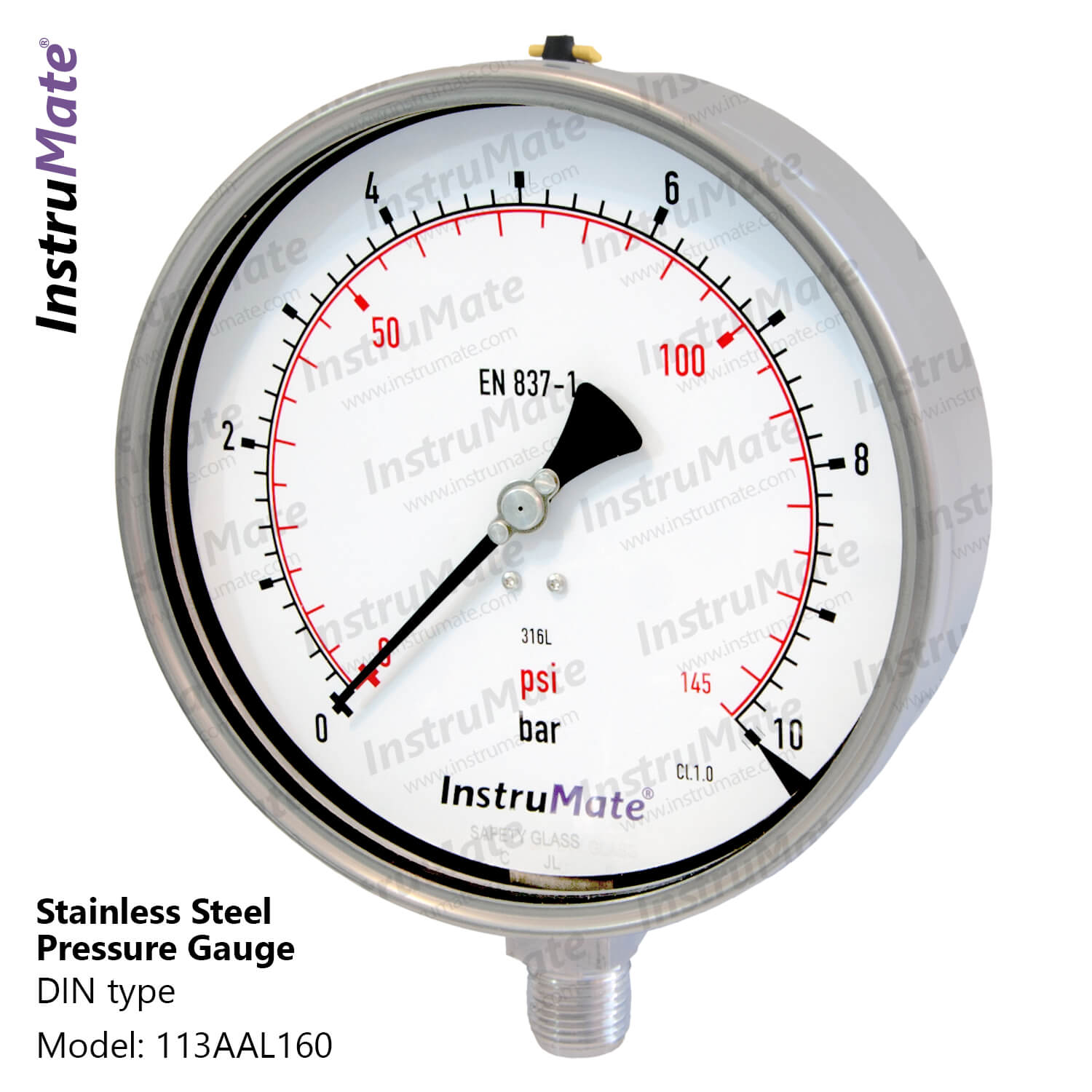

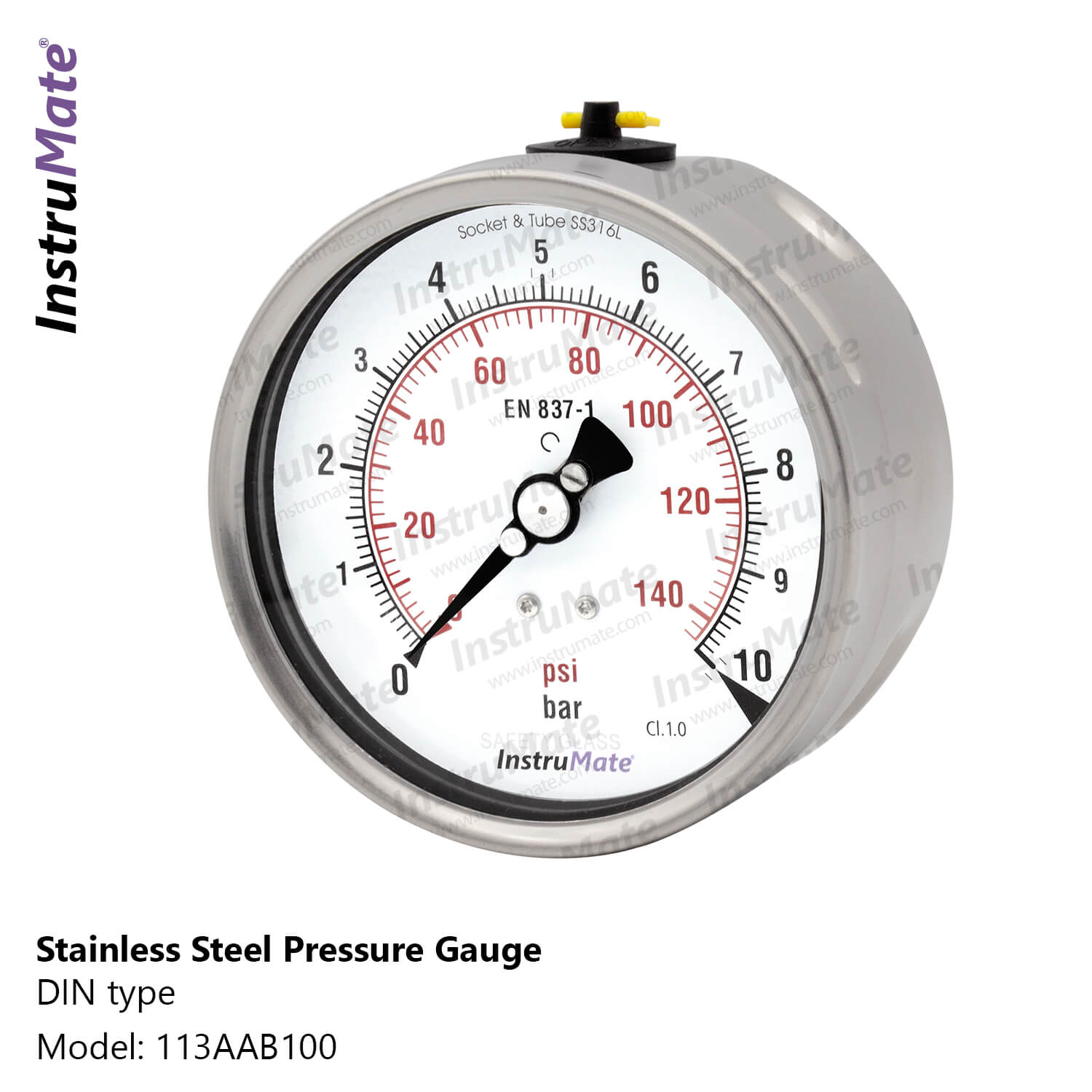

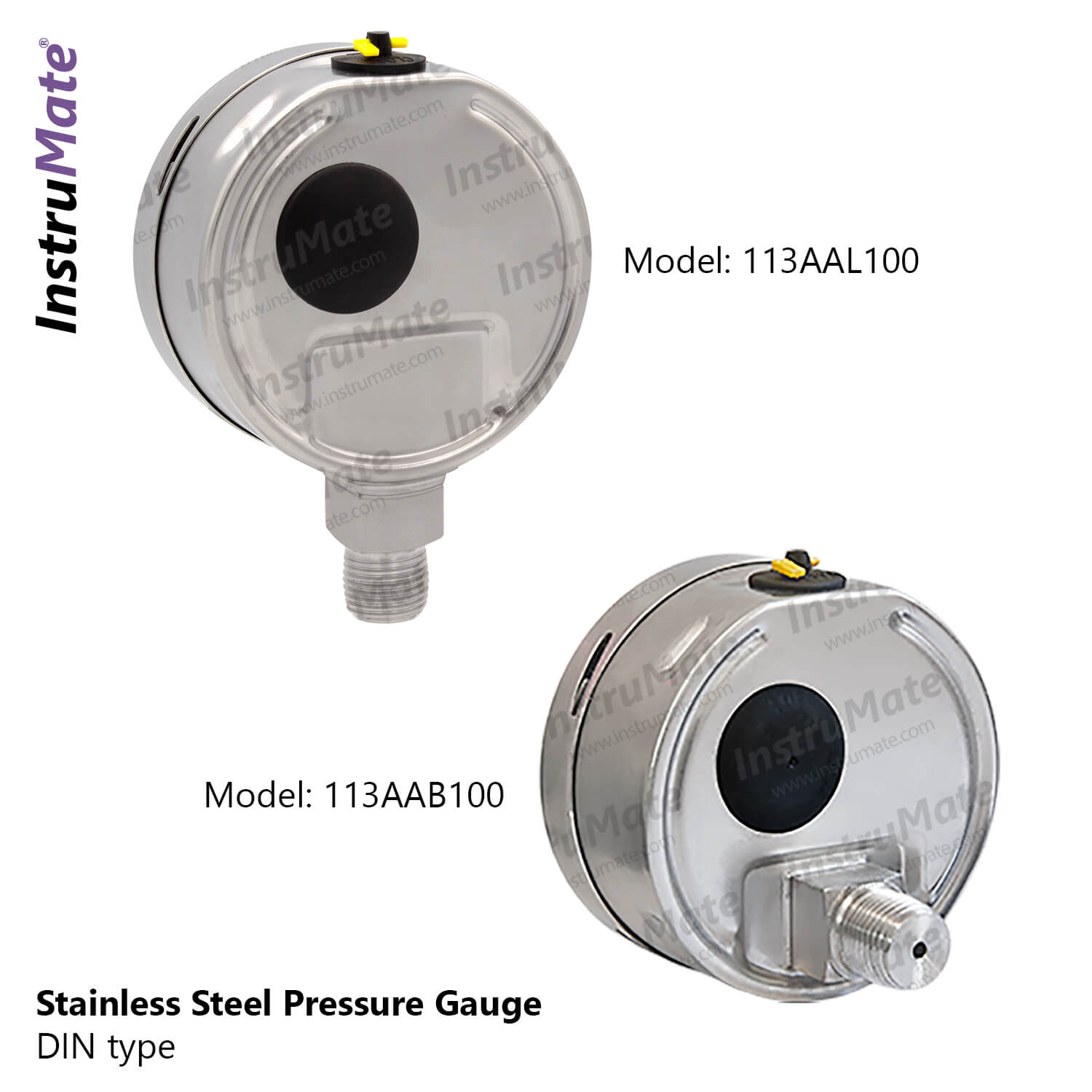

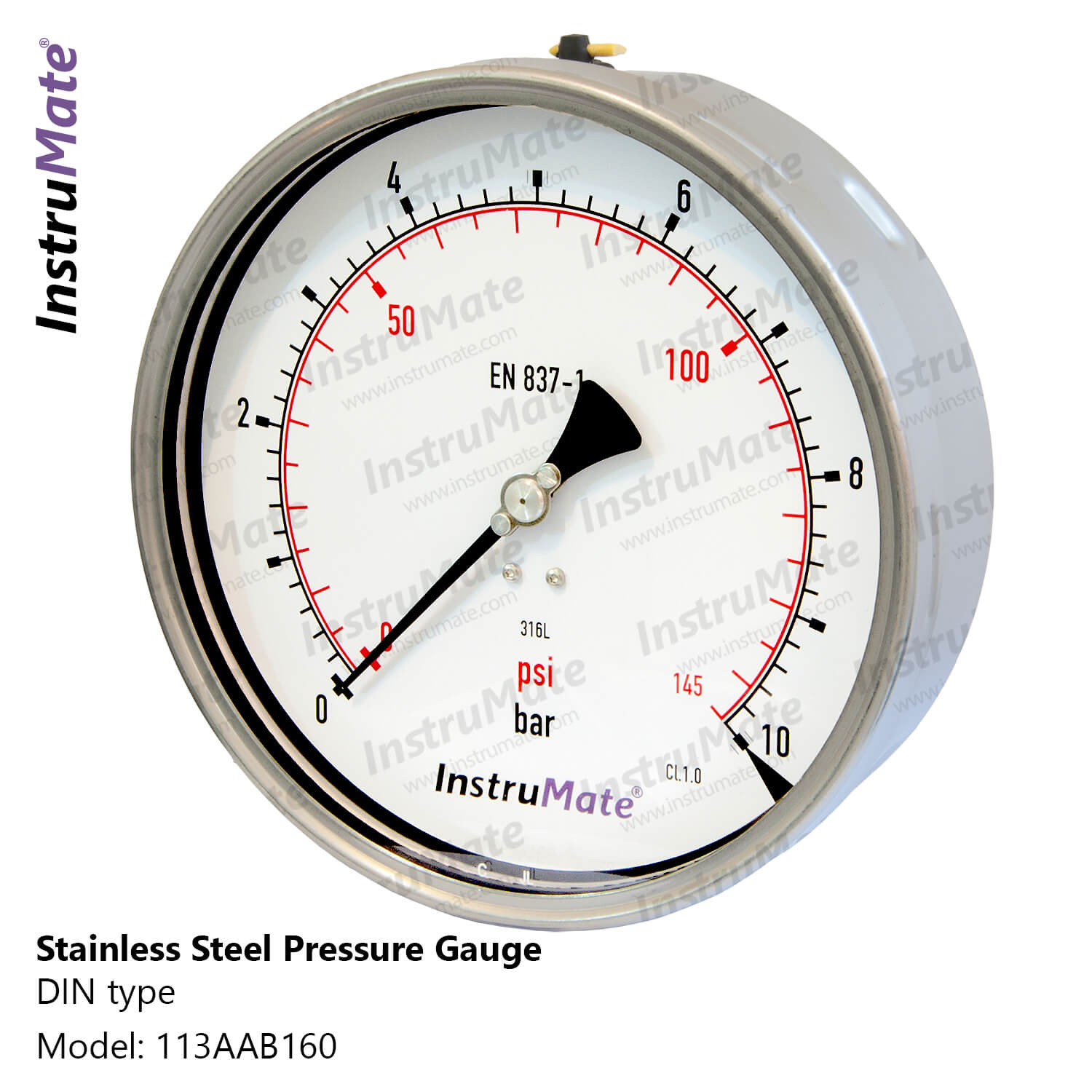

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE MODEL 113AA

InstruMate 113AA full stainless steel gauge in standard version is offered with Micro-adjustable pointer, safety glass and blow out disk. All of 113AA pressure gauges pass cycle testing, vibration testing, overpressure testing, and Helium leakage testing as part of production process. The choice of material as well as its heavy-duty construction makes this model a suitable pressure gauge for a wide range of industries from pharmaceutical to petrochemical.

All InstruMate pressure gauges have geometrically balanced dial designs to make gauge readings easier.

Applications

* Harsh ambience

* Severe operating conditions

* Chemical and petrochemical processing industries

* Couple with diaphragm seals

* Power plants, offshore sites, ships and food industry

* Do not use directly for medias that are viscous or crystallizing.

Special Features

* Proved accuracy, stability and repeatability

* Ingress Protection: IP65

* Shock resistant and durable

* Reasonable price for a distinguished quality

Specification

Nominal Sizes in mm: 63, 100, 160, 250

Scale Ranges:

          NS 63: 0…1 bar to 1000 bar

          NS 100, 160, 250: 0…0.6 bar to 1600 bar

          Vacuum & compound ranges

Pressure Limitations:

NS 63

          Steady: 80% of full scale

          Fluctuating: 65% of full scale

          Over-Pressure: 100% of full scale

NS 100,160, 250 (Heavy duty)

          Steady: 100% of full scale

          Fluctuating: 90% of full scale

          Over-Pressure: 130% of full scale

Pressure Element:

          NS 63: SS316

          NS 100, 160, 250: SS316L

Permissible Temperature:

          Ambient: -20…+60 °C

          Medium: +190 °C Maximum for dry version

          95 °C Maximum for oil filled version

Accuracy:

          NS 63: 1.6% of full scale

          NS 100,160, 250: 1% of full scale

Window: Safety Glass

Case: Matte SS304

Movement: Stainless Steel
