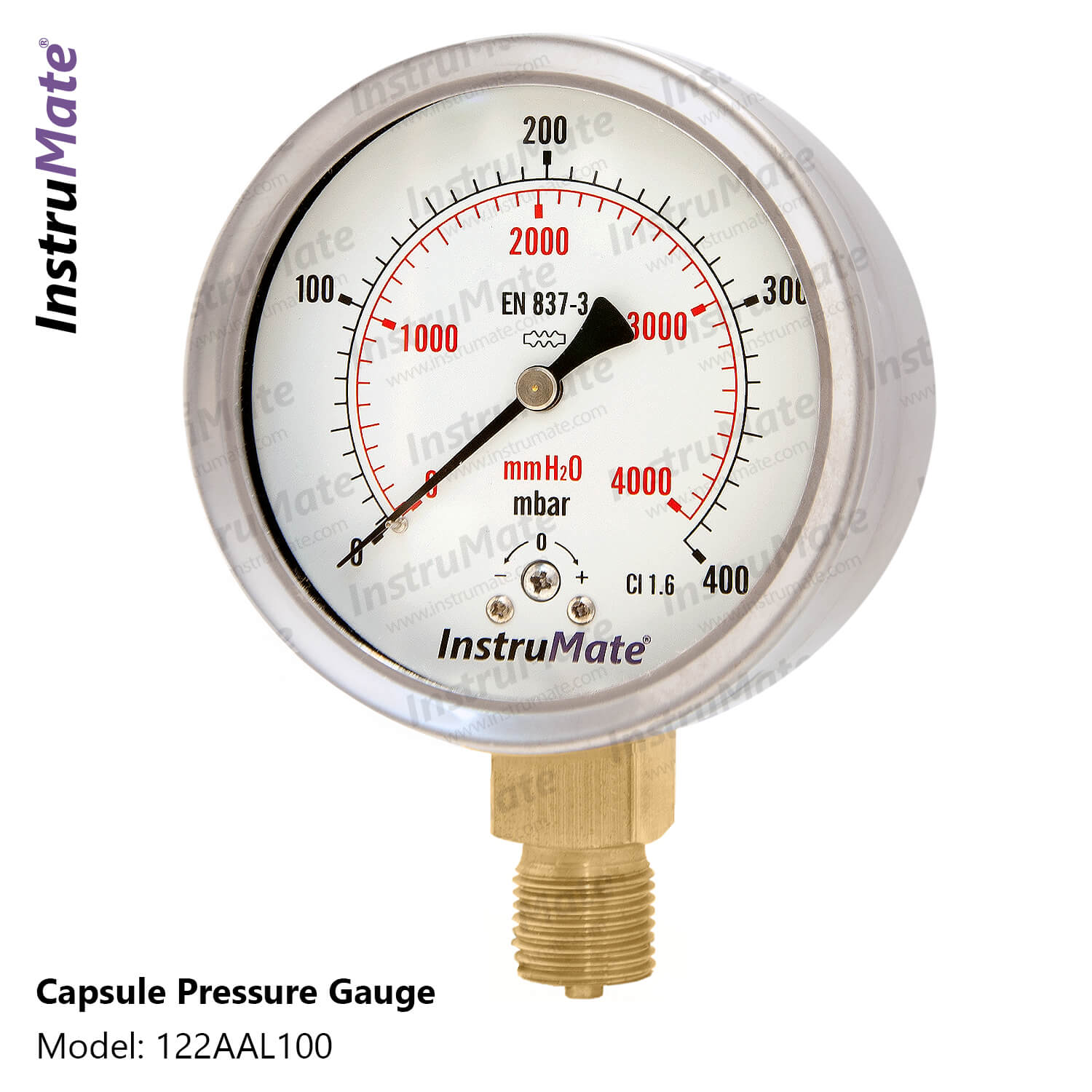

ĐỒNG HỒ ĐO ÁP SUẤT INSTRUMATE DẠNG CAPSULE MODEL 122AA

InstruMate low pressure gauge model 122AA is the strongest design for a low pressure gauge with brass connection. The case in this capsule pressure  gauge is DIN type (openable) which makes it easy to recalibrate and adjust the pressure gauge if needed.Choosing reliable capsule measuring system assures you can count on it for any low pressure monitoring with medias not attacking copper alloys.

All InstruMate pressure gauges have geometrically balanced dial designs to make gauge readings easier

Applications

* Low pressure/vacuum measurement of gas and dry air

* Do not use for medias that are viscous, crystallizing and corroding cooper alloy

* Medical and agricultural machinery

Special Features

* Reliable capsule measuring system made of copper alloy

* Strong design with full stainless steel case and bezel

* Zero adjusting screw on dial

* Thin pointer design

Specification

Nominal Sizes in mm: 63, 100

Scale Ranges

NS 63: 0…25 to 1000 mbar

NS 100: 0…16 to 1000 mbar

Vacuum & compound ranges

Pressure Limitations

Steady: 100% of full scale

Fluctuating: 90% of full scale

Pressure Element: Copper alloy

                              Capsule system

Permissible Temperature

Ambient: -20…+60 °C

Medium: +90 °C Maximum

Accuracy: 1.6% of full scale

Window: Glass

Case: Matte SS304

Movement: Copper Alloy
