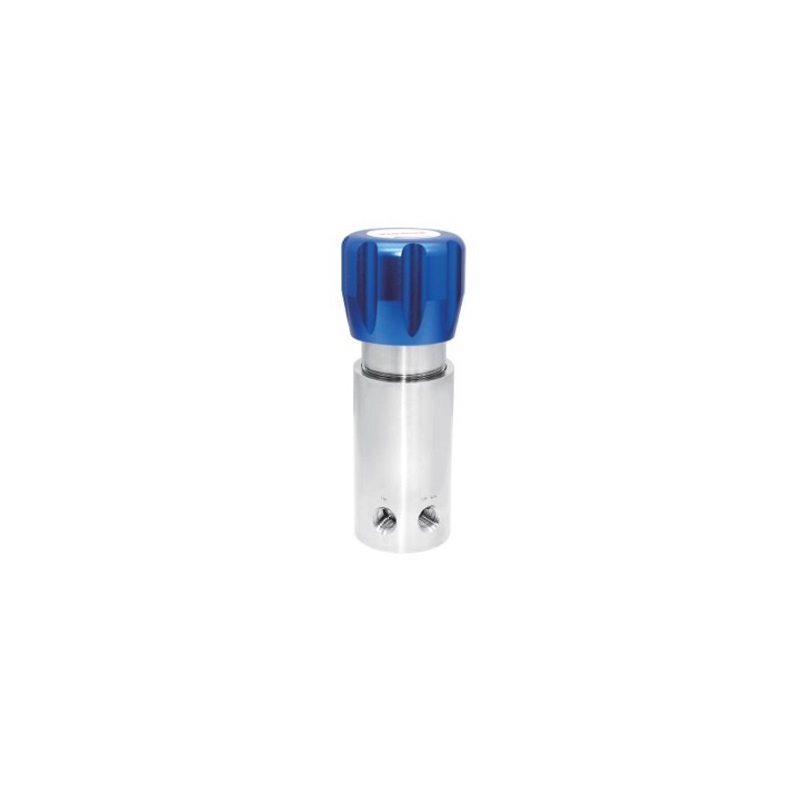

High Pressure Self-venting Regulator VSR-8 Series

Type: single-stage

Inlet pressure P1:

Brass: max. 400 bar

SS 316L: max. 400/700 bar

Outlet pressure P2: 35/50/100/200/300/400 bar

Materials

Body regulator, Relief valve: see ordering info

Main valve seat: Vespel

Vent valve seat: PCTFE

Piston: SS 316L

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Inlet connection: 1/4”NPT(F)

Outlet connection: 1/4”NPT(F)

Temperature range: -30℃ to +74℃

Leak rate: Bubble-tight

Flow capacity: Cv=0.06

Weight: 2.2kg
