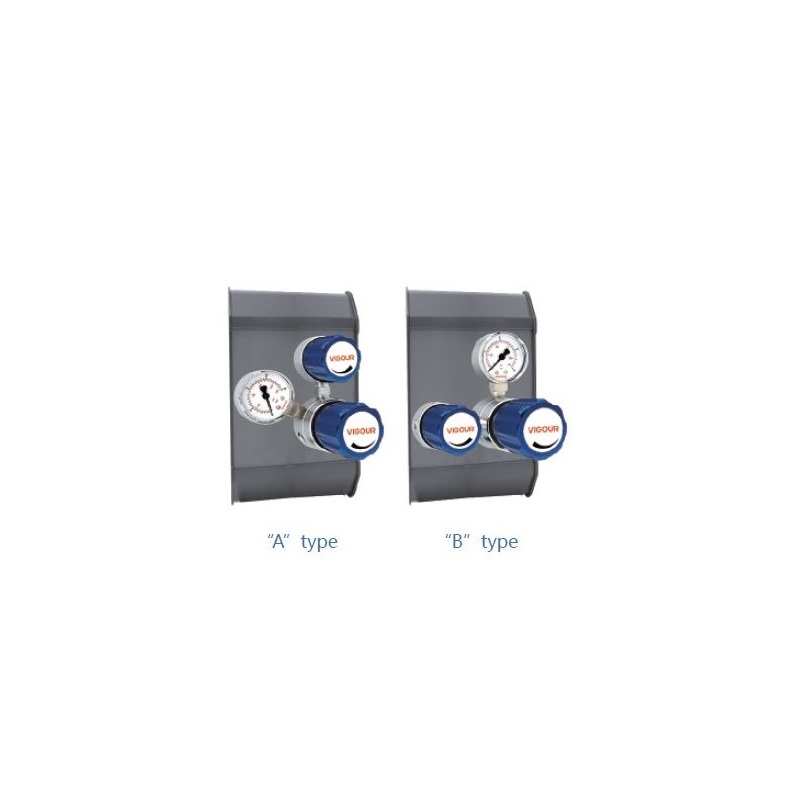

Gas Terminal VSR-2T Series

Type: single-stage

Inlet pressure P1: max. 100 bar

Outlet pressure P2: 2/4/10/20/35/50 bar

Materials

Body regulator and valve: see ordering info

Valve seat (regulator): PCTFE

Valve seat (shut-off vlave): PEEK

Diaphragm (regulator): Hastelloy C276

Diaphragm (valve): Hastelloy C276

O-ring: Viton (FKM)

(option) Kalrez (FFKM)

Filter: SS 316L

Temperature range: -30℃ to +74℃

Flow capacity:

(Outlet pressure: 2/4/10/20 bar) Cv=0.28

(Outlet pressure: 35/50 bar) Cv=0.2

Weight: 3.5kg
