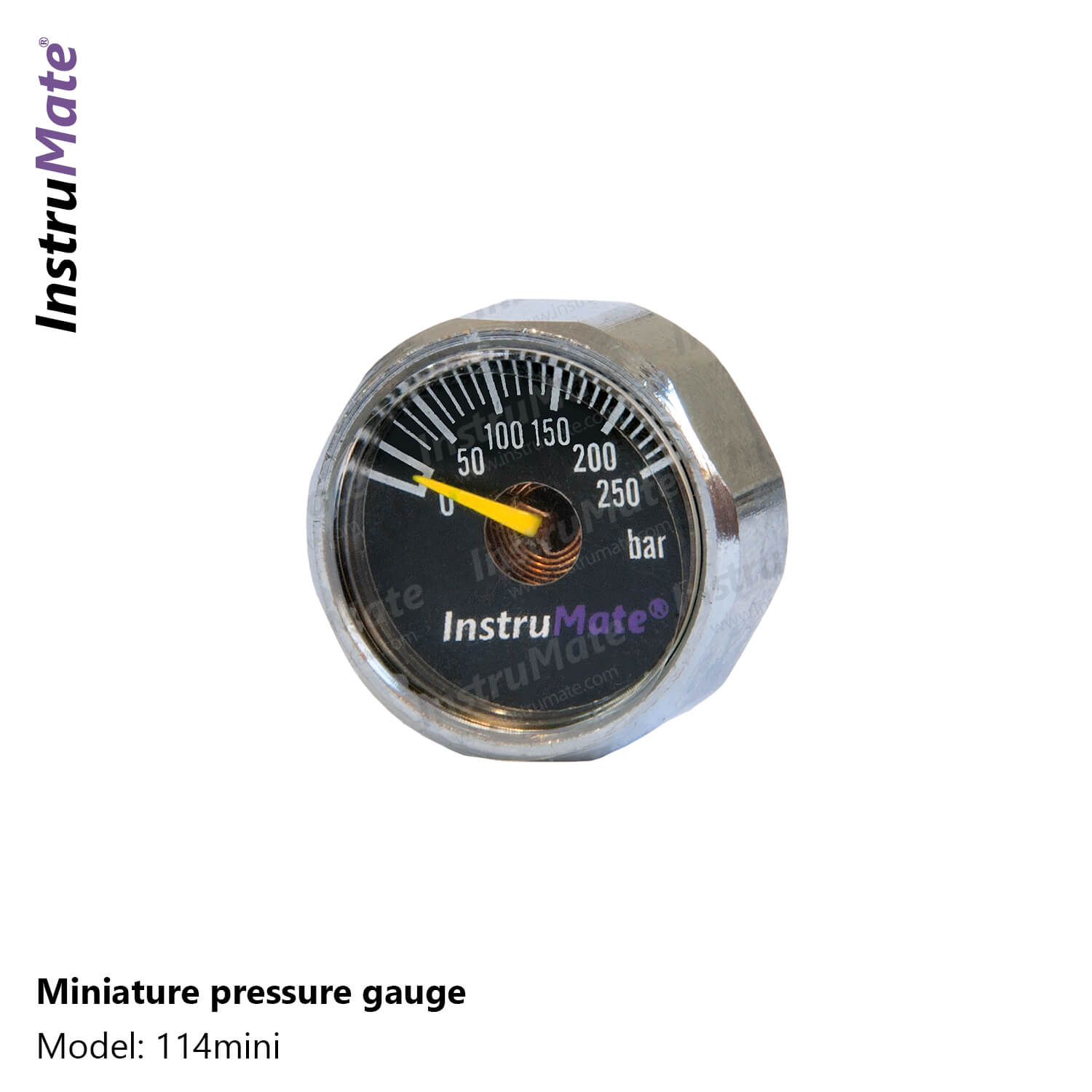

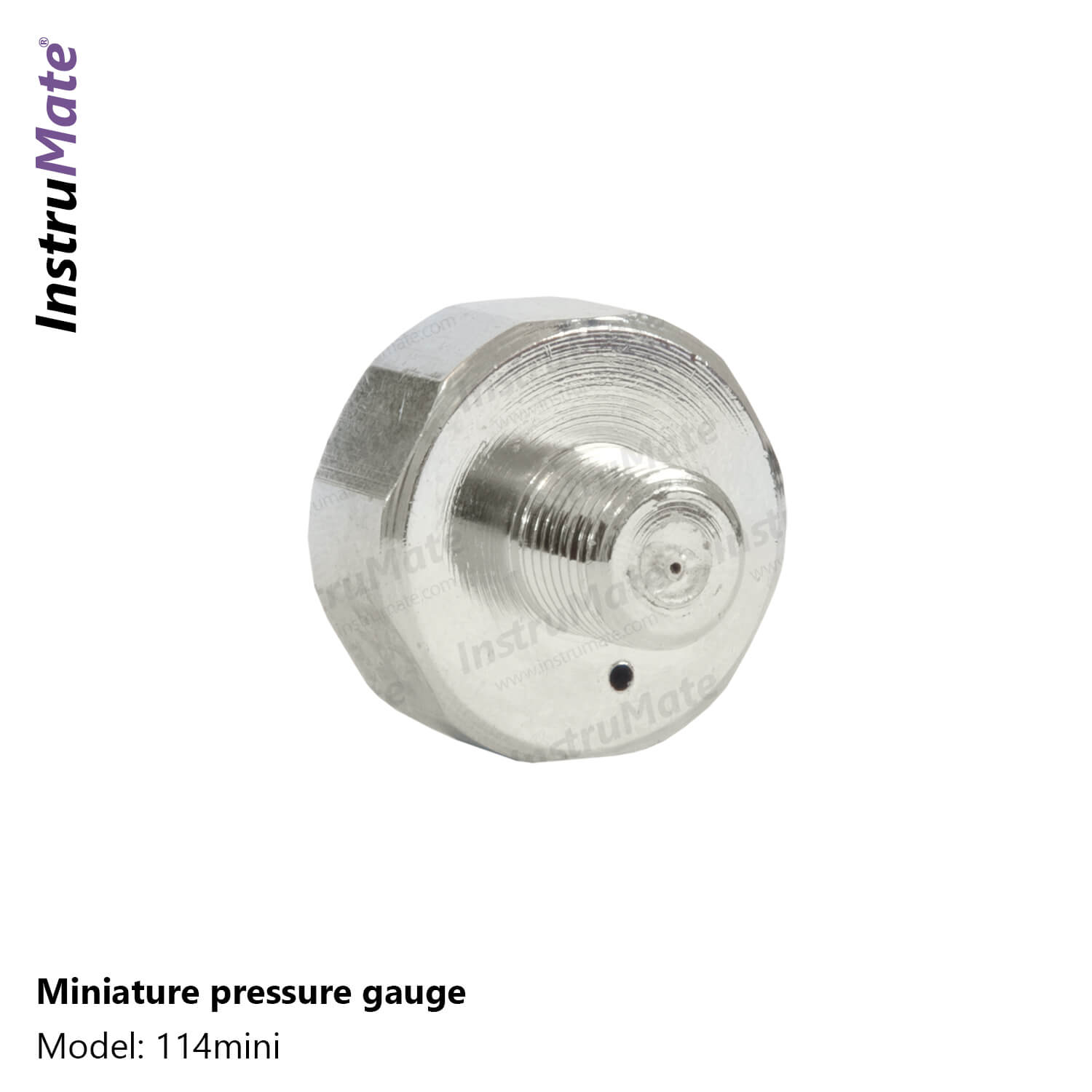

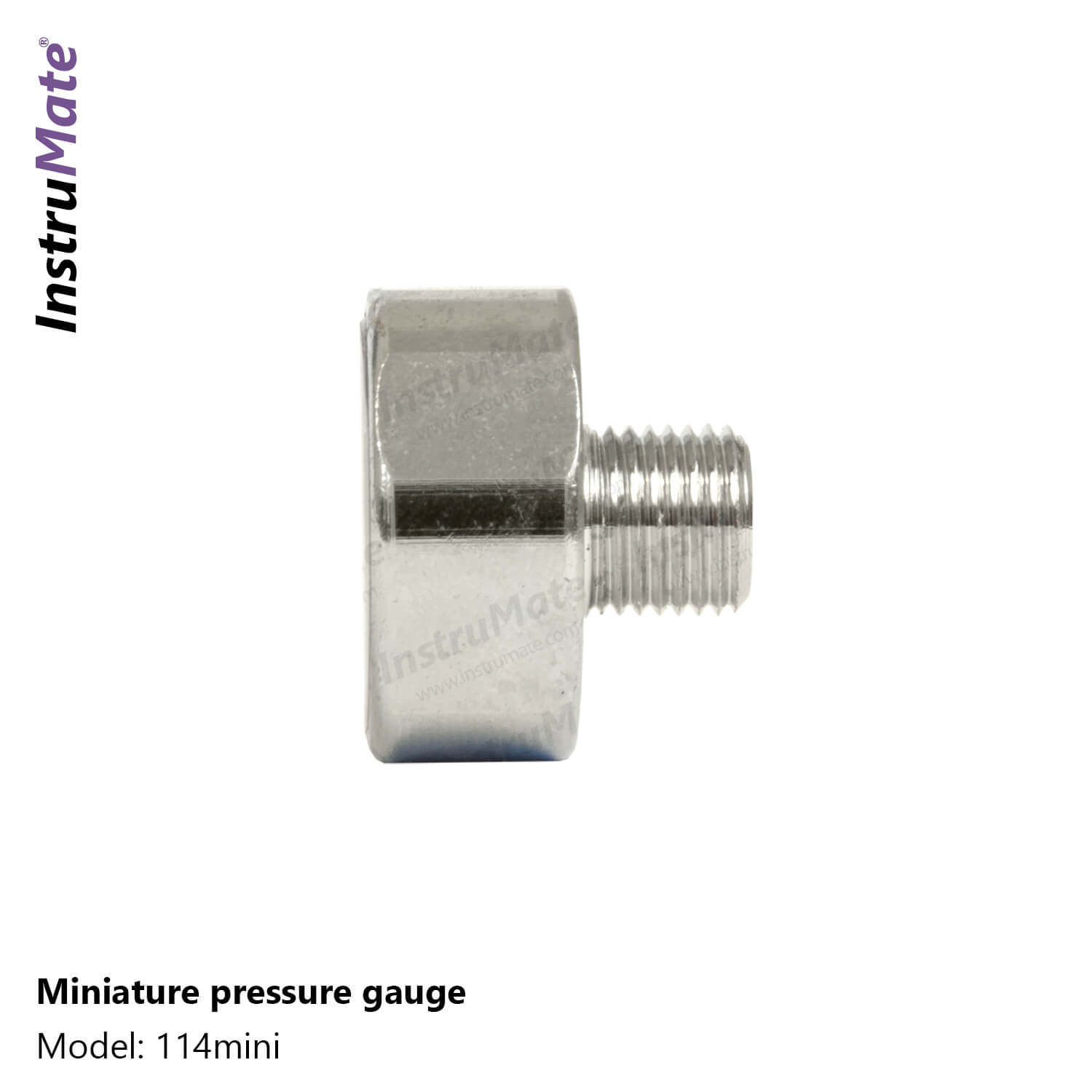

ĐỒNG HỒ ĐO ÁP SUẤT DẠNG MINI INSTRUMATE MODEL 114MINI

InstruMate Model 114mini is the very compact pressure gauge for applications with space constraints. They are suitable for measuring pressurized air, gas, water and oil or non-corrosive media. Their hexagonal case design makes installation with a spanner very easy.

Applications

* Places with space limitations

* High pressure capsules

* Air gun charging kits

* Do not use directly for medias that are viscous, crystallizing and corroding copper alloy

Special Features

* Cost efficient choice

* Hexagonal body

* Special window material: break-resistant

Specification

Nominal Size in mm: 25

Scale Ranges: 0…10 bar to 400 bar

Pressure Limitations:

      Steady: 75% of full scale

      Fluctuating: 65% of full scale

      Over-Pressure: 100% of full scale

Permissible Temperature:

      Ambient: -20…+60 °C

      Medium: +65 °C Maximum

Accuracy: 5% of full scale

Window: Break-resistant plastic

Case: Hexagonal case, nickel plated, not fillable

Movement: Spiral direct drive

Pressure Element: Copper alloy
