CẢM BIẾN ÁP SUẤT TUYỆT ĐỐI ROSEMOUNT 2088

Product Description

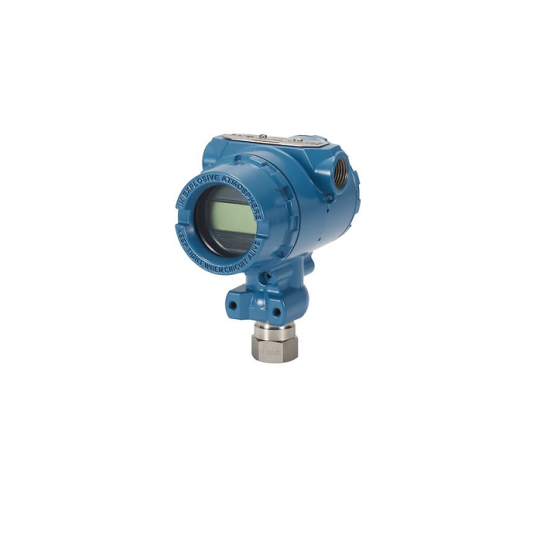

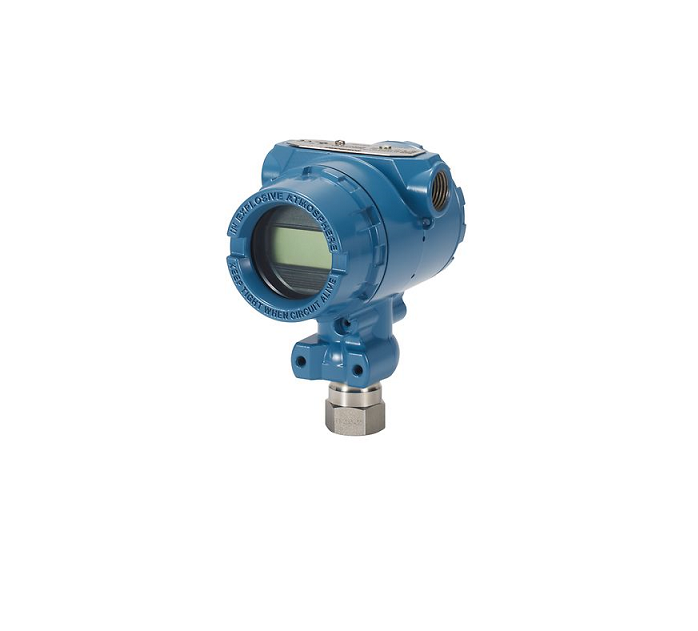

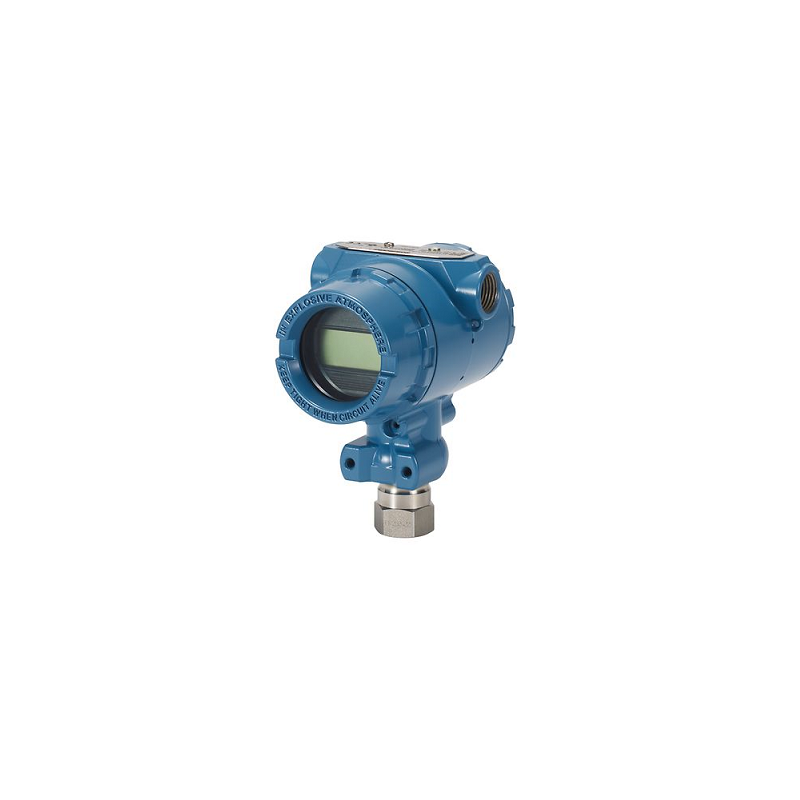

With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can keep on schedule with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons, so you can commission the device on the spot without complicated tools. This pressure transmitter is also available with manifolds and remote seals.

Specifications

* Rangedown: Up to 50:1

* Communication Protocol: 4-20 mA HART®, 1-5 V Low Power HART®

* Measurement Range: Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute

* Process Wetted Material: 316L SST, Alloy C-276

* Diagnostics: Basic Diagnostics

* Certifications/Approvals: NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

• Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use

• Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up

• Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility

• Lightweight, compact design allows for easy installation
