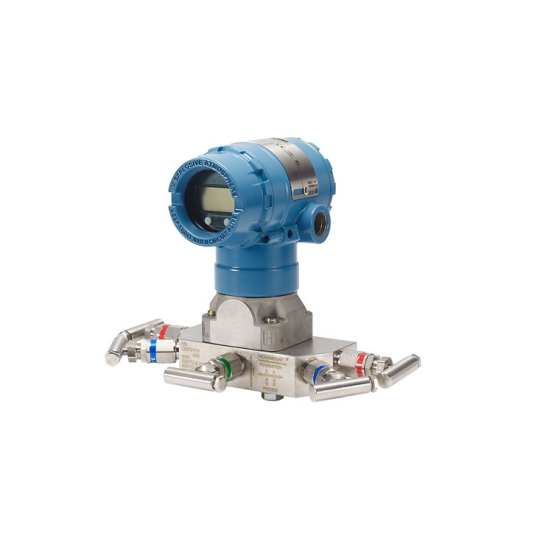

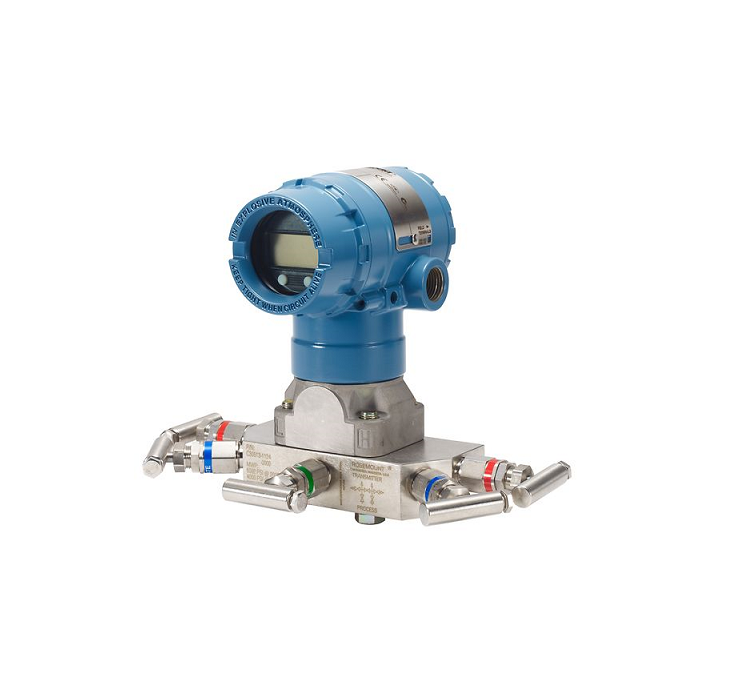

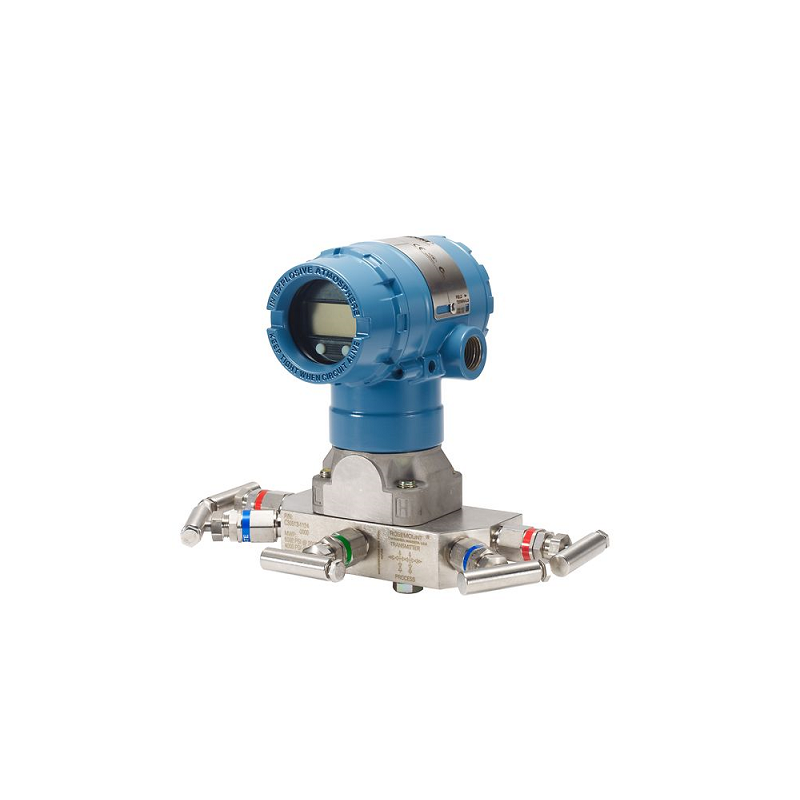

CẢM BIẾN ÁP SUẤT ROSEMOUNT 2051 Coplanar

Specifications

Rangedown: Up To 100:1

Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®

Measurement Range: Up to 2000 psi (137,9 bar) Differential, Up to 2000 psig (137,9 bar) Gage

Process Wetted Material: 316L SST, Alloy C-276, Tantalum

Diagnostics: Basic Diagnostics

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

• Performance up to 0.05% of span accuracy

• Patented coplanar technology allows direct mounting to pressure, flow or level solutions for installation flexibility

• Delivered fully assembled to manifolds, diaphragm seals or primary flow elements for straightforward installation

• Local Operator Interface offers easy-to-use menus and built-in configuration buttons for streamline commissioning

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
