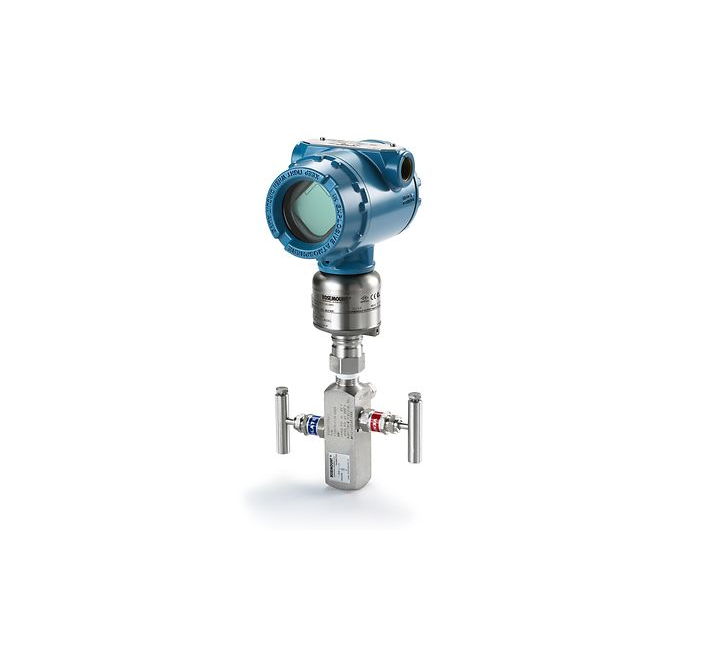

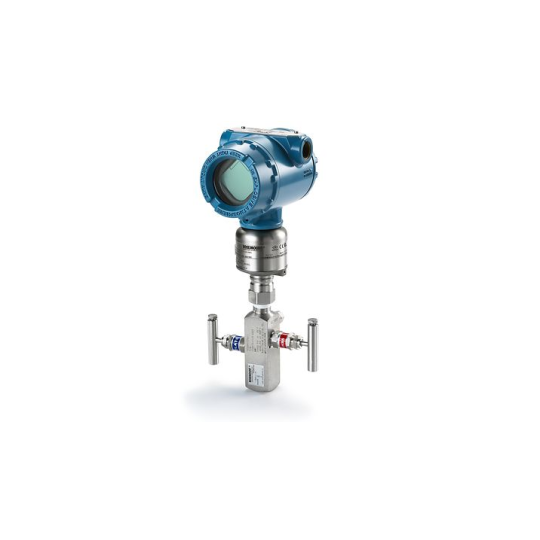

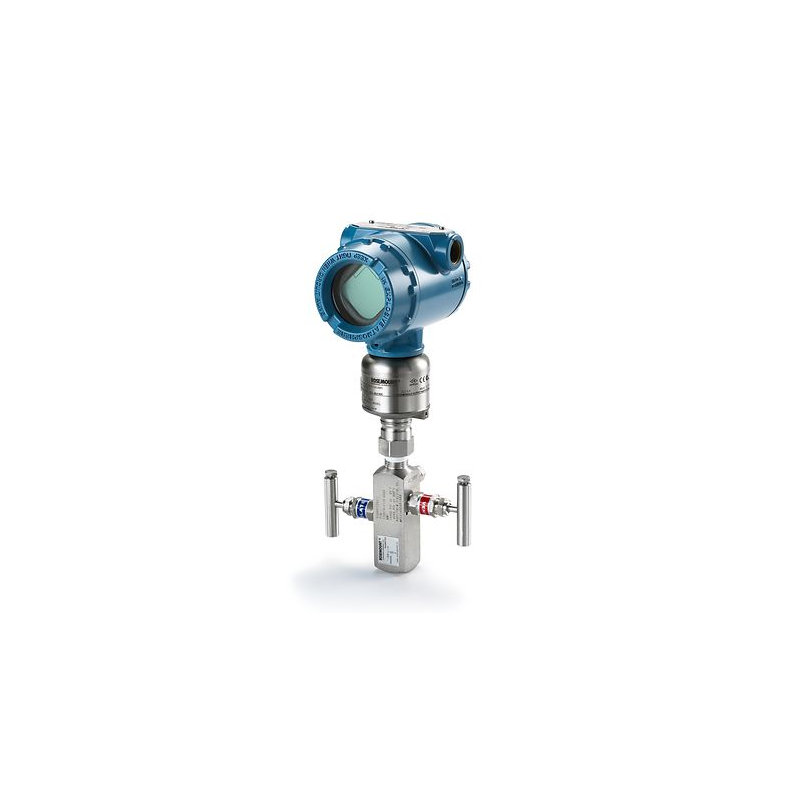

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051S In-Line

Specifications

Rangedown: Up to 200:1

Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus

Measurement Range: Up to 10000psi (689,47 bar) Gage, Up to 10000psia (689,47 bar) Absolute

Process Wetted Material: 316L SST, Alloy C-276

Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

Features

• No-equal, scalable architecture optimizes performance, functionality and process connections

• Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation

• Ultra and Classic Performance class enhances process control

• 15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility

• Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)

• Seamless integration with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application adaptability

• SIL 2/3 certified to IEC 61508 by a 3rd party and prior-use certificate of FMEDA data for safety installations

• Advanced diagnostics offer diagnostic coverage to detect electrical loop issues and abnormal process conditions

• Remote display offers easy access to device display and loop connection
