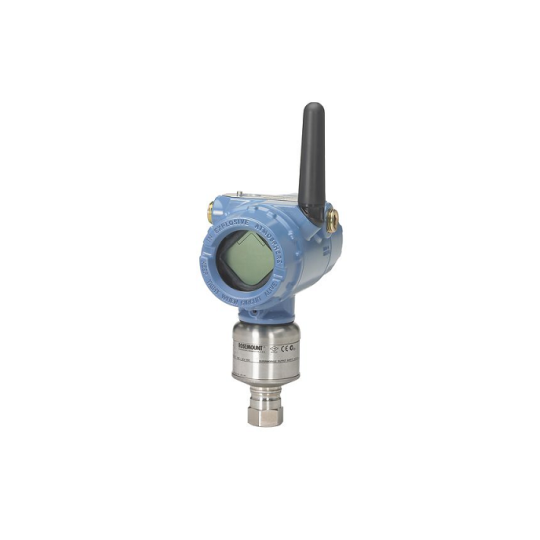

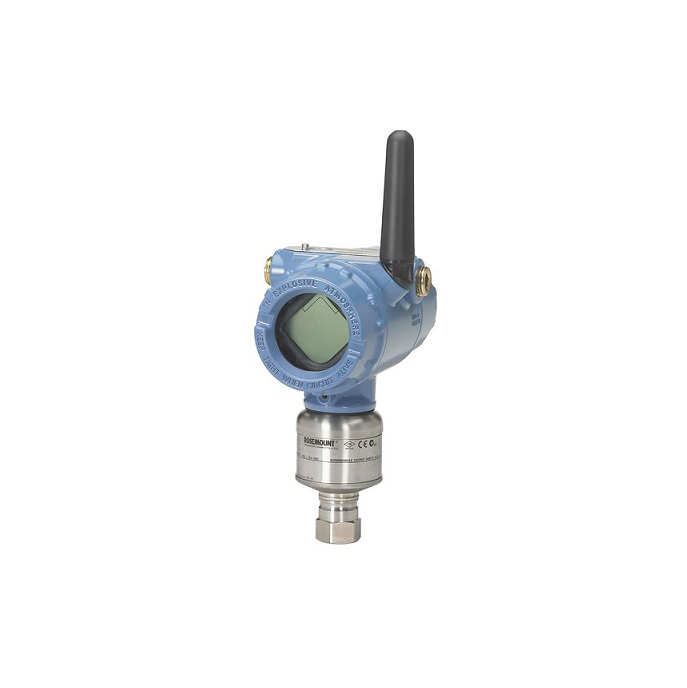

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051S Wireless In-Line

Specifications

Rangedown: Up to 200:1

Communication Protocol: WirelessHART®

Measurement Range: Up to 10000psi (689,47 bar) Gage, Up to 10000psia (689,47 bar) Absolute

Process Wetted Material: 316L SST, Alloy C-276

Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

Certifications/Approvals: NSF, NACE, hazardous location, see full specs for complete list of certifications

Update Rate: 1 sec. to 60 min., user selectable

Power Module Life: Up to 10-year life, field replaceable (order separately)

Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• No-equal, scalable architecture optimizes performance, functionality and process connections

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• Designed with direct threaded connections or manifolds and remote seals for a quick and cost-effective installation

• Ultra and Classic Performance classes provide accuracy up to 0.025% of span

• 15-year stability and 200:1 rangedown produce reliable measurements and wide application flexibility

• Piezoresistive sensor technology allows calibrated spans from 0.3 to 10000 psi (20.7 mbar to 689 bar)

• 15-year warranty for worry-free operation

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
