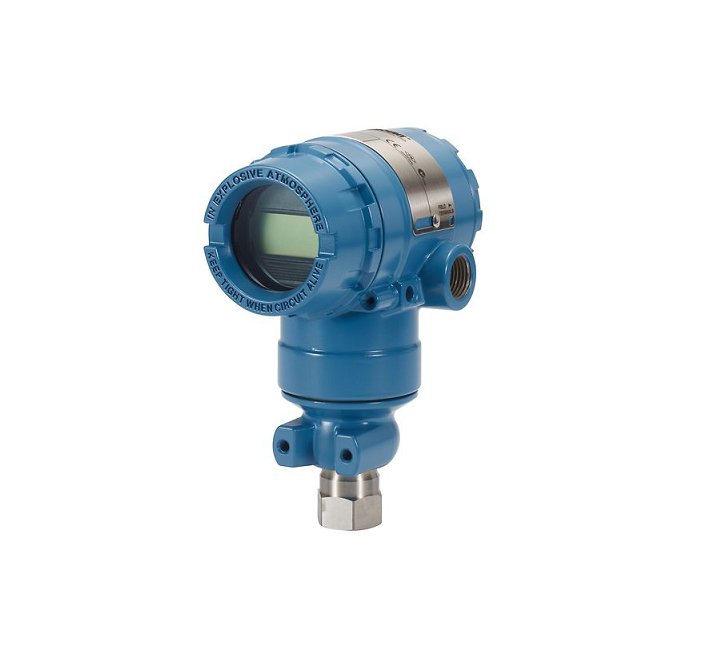

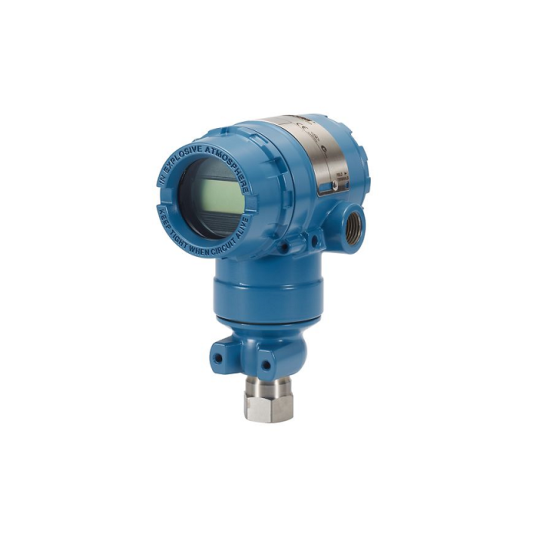

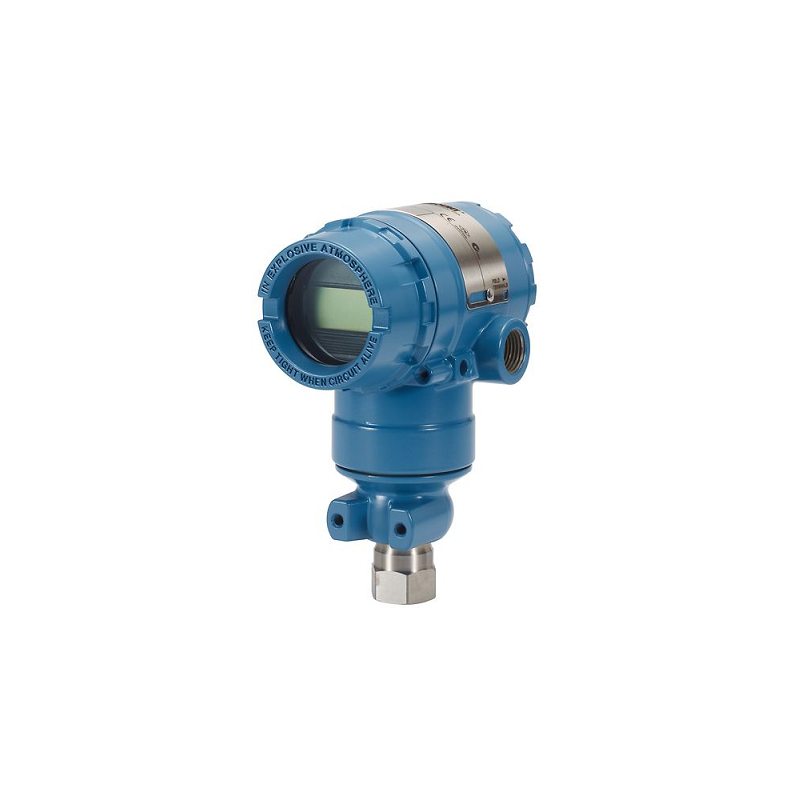

CẢM BIẾN ÁP SUẤT ROSEMOUNT 2051 In-Line

Product Description

Work more efficiently with the Rosemount 2051 In-Line Pressure Transmitter, an industry standard device that delivers reliable process data. This transmitter provides accurate gage and absolute measurements and is delivered installation-ready. This pressure transmitter features an intuitive Local Operator Interface which streamlines commissioning and reduces the number of tools you need, for a cost-effective and capable solution.

Specifications

* Rangedown: Up To 100:1

* Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®

* Measurement Range: Up to 10000 psig (689,47 bar) Gage, Up to 10000 psia (689,47bar) Absolute

* Process Wetted Material: 316L SST, Alloy C-276

* Diagnostics: Basic Diagnostics

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

• Intuitive Local Operator Interface streamlines commissioning for simple and cost-effective installation

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
