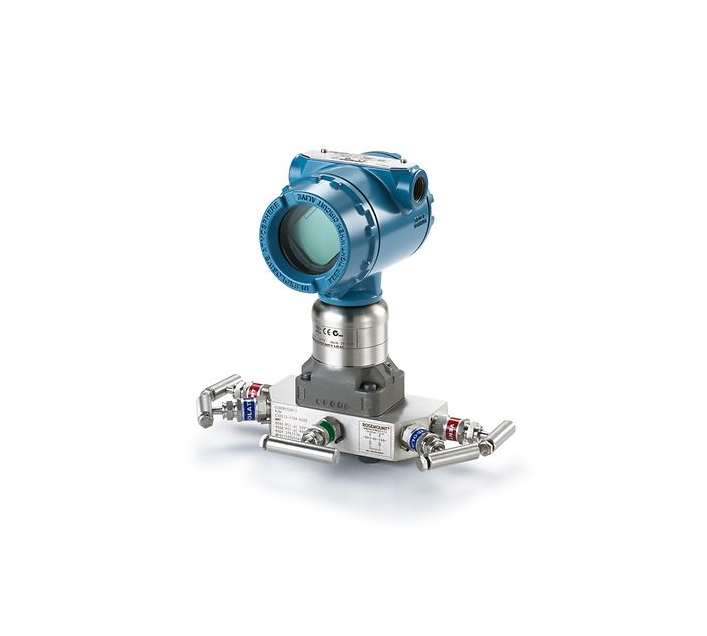

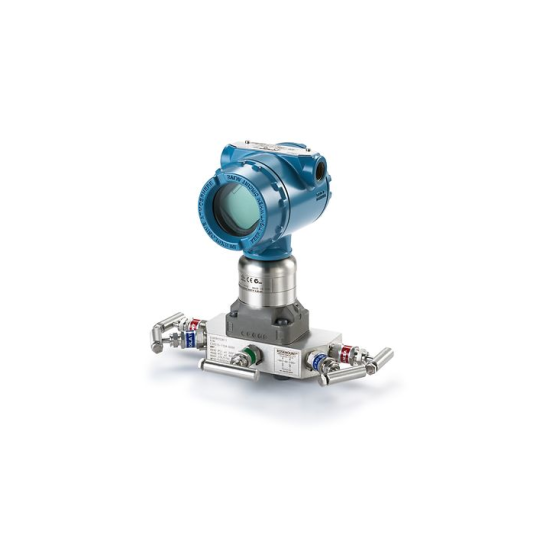

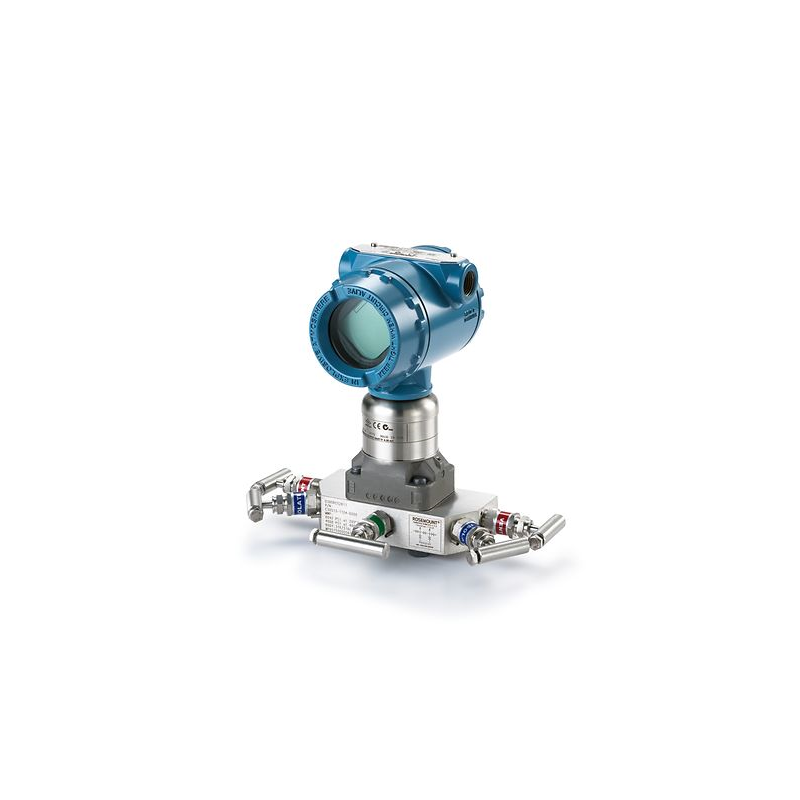

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051S Coplanar

Product Description

The Rosemount 3051S Coplanar™ Pressure Transmitter is designed with the patented Coplanar technology and is the no-equal solution for pressure, flow and level measurements. This scalable platform, available in both wired and WirelessHART® communication protocols, seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gage and absolute pressure measurements. With the SuperModule™ platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.

Specifications

* Rangedown: Up to 200:1

* Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus

* Measurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute

* Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

* Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

* Wireless Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution

• Best-in-class, scalable architecture enhances performance, functionality and process connections

• Transmitter arrives fully assembled and leak tested for simple installation and maintenance

• All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy

• Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty

• 200:1 rangedown produce reliable measurements and wide application flexibility

• Integrates seamlessly with 4-20 mA HART™, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

• Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions

• Remote display and interface offers easy access to process and device information

• Wireless Features

  • WirelessHART^® technology is secure and cost-effective and delivers >99% data reliability

  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
