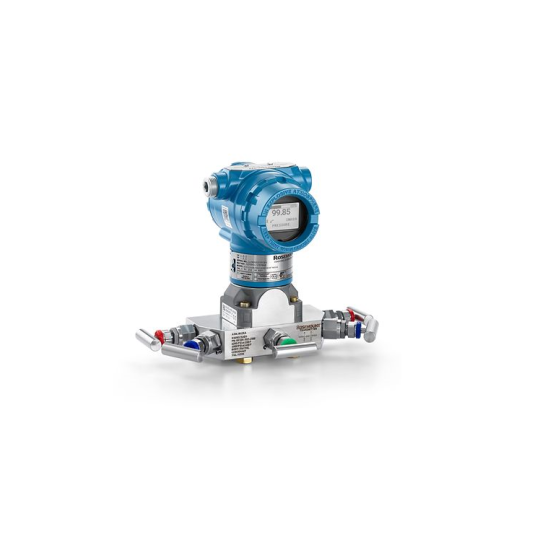

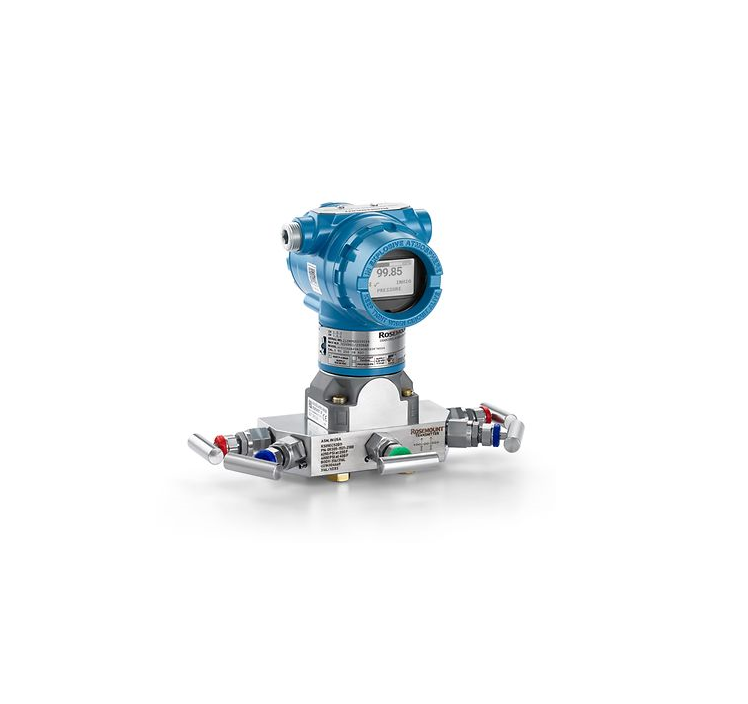

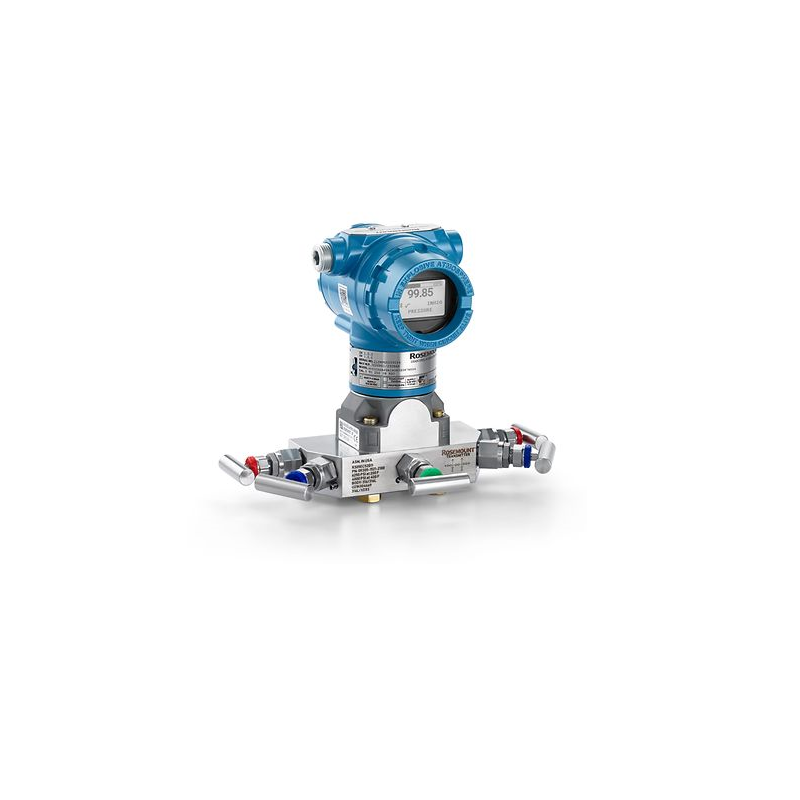

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051 Coplanar

Product Description

The industry-proven Rosemount 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 rangedown produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, Bluetooth^® connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Specifications

* Rangedown: Up to 150:1

* Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART

* Measurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute

* Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

* Diagnostics: Basic Diagnostics, Loop Integrity

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

Features

• Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments

• Patented Rosemount Coplanar technology allows for direct mounting to multiple measurement applications

• Fully-assembled pressure, level and flow solutions arrive ready-to-install for improved reliability and performance

• Complete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

• Local Operator Interface (LOI) enables quick commissioning and provides easy access to process and device information

• Loop Integrity diagnostics detect electrical loop issues for reduced downtime

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
