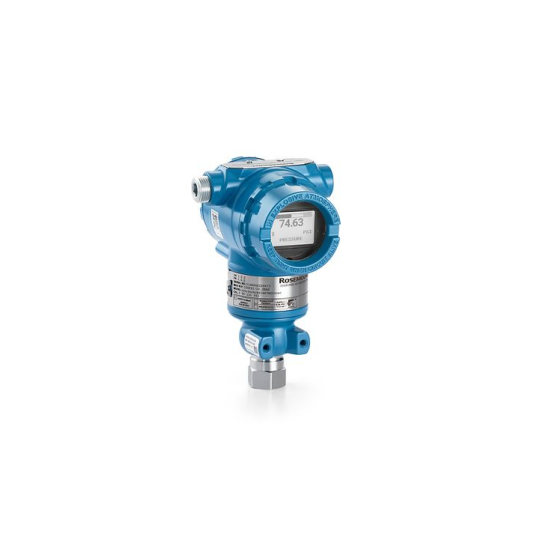

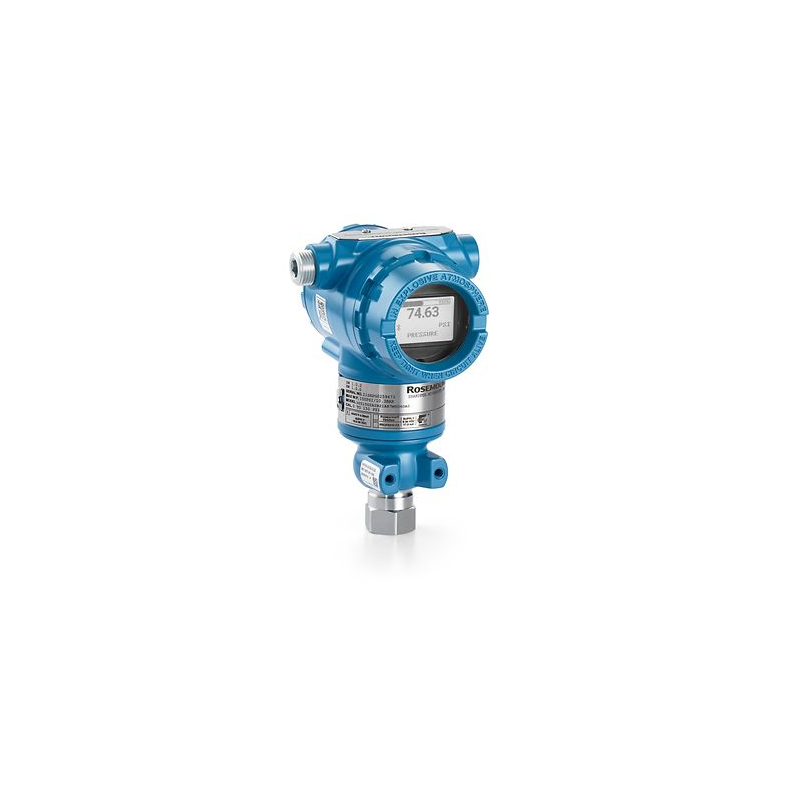

CẢM BIẾN ÁP SUẤT ROSEMOUNT 3051 In-Line

Specifications

Rangedown: Up to 150:1

Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART

Measurement Range: Up to 20000 psig (1378,95 bar) Gage, Up to 20000 psia (1378,95 bar) Absolute

Process Wetted Material: 316L SST, Alloy C-276

Diagnostics: Basic Diagnostics, Loop Integrity

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

• Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments

• In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure and level solutions

• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

• Supports common protocols for integration in many host environments across many industries

• Wide range of manifolds and remote seals are available – factory-assembled and leak-tested for easy installation

• Local Operator Interface (LOI) enables quick commissioning and provides easy access to process and device information

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

• Loop Integrity diagnostics detect electrical loop issues for reduced downtime
