ELECTROMAGNETIC FLOWMETER APLISENS MODEL PEM-1000

Application
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of ≥ 5 μS/cm:
* Acid, alkalis
* Paints
* Pastes
* Water, wastewater, etc.
Measuring system: The measuring system consists of a transmitter and a sensor.
Two versions are available:

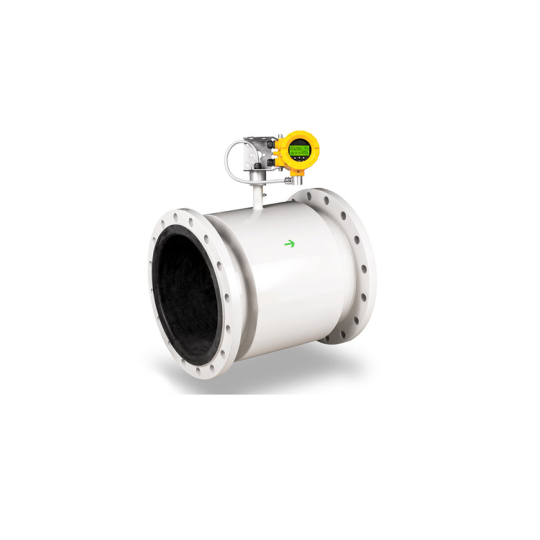

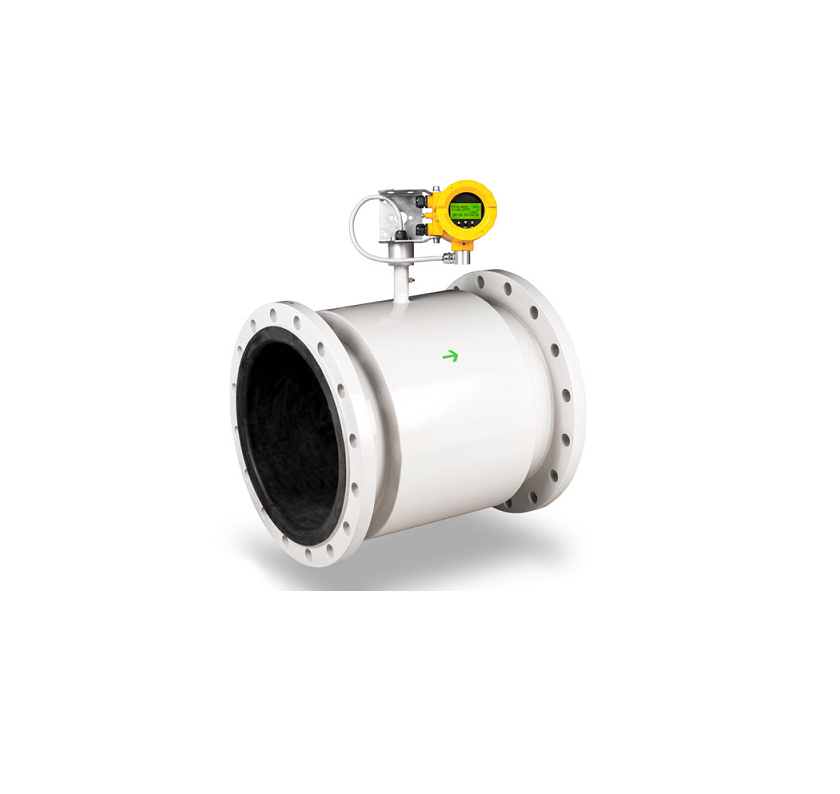

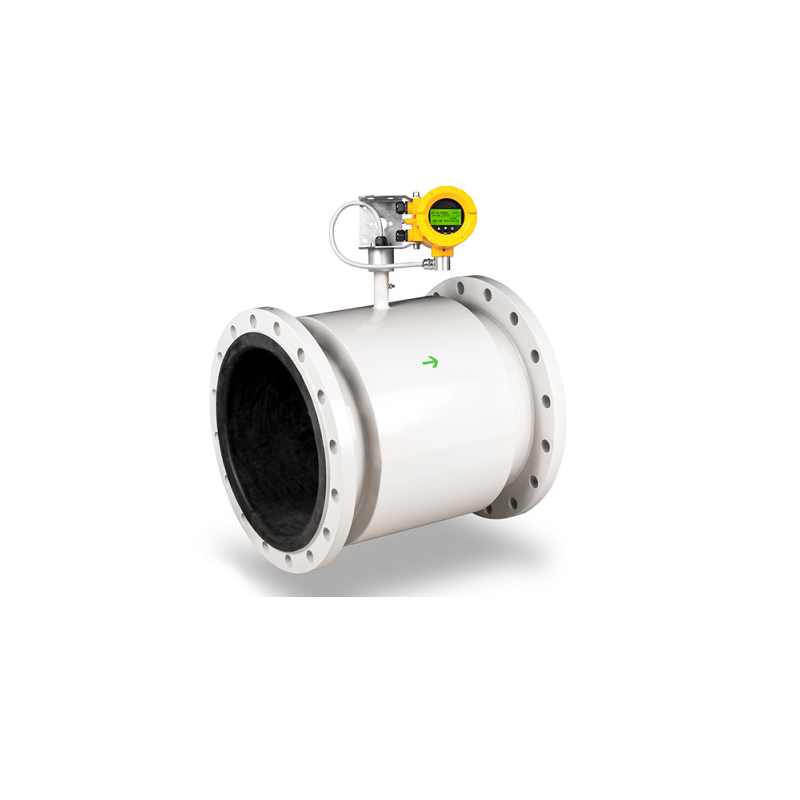

• Compact version: Transmitter and sensor form a mechanical unit
PEM-1000ALW
• Remote version: Sensor is mounted separate from the transmitter
PEM-1000NW
Technical data
Specification for PEM-1000 control unit
Electrical conductivity of the medium: 5 μS/cm
Input resistance: 1010
Accuracy: 0,5% of reading at 20...100% Q10m/s
      Special version: 0,2% of reading at 20...100% Q10m/s (for reference conditions)
Low flow rejection adjustable, any value
Actual flow both directions (l/s,m3/h, m3/s, other)
Totalizer 3 counters: total, positive, negative (m3, other)
Configuration: LCD display/buttons or Modbus RTU via RS485
Empty pipe detection cyclic, configurable
Analog output: 4...20mA/500
Active output (passive output – on request)
Pulse/frequency output max. 24V/10mA DC
      0,1…2000Hz in frequency mode
      up to 500Hz in pulse mode
      2-state output OC 2, open collector, max. 35V DC for each galvanic insulation, reverse polarity protection
Communication output: Modbus RTU/RS 485 galvanic insulation 2-state input 5…35V DC/2mA passive input, galvanic insulation, reverse polarity protection
Power supply:
      90..260V AC/50Hz/15VA
      10…36V DC/15W (reverse polarity protection)
Protection class: IP66 (IP67 on request)
Ambient temperature: -20…60°C
Weight: 3,5kg
Specification for PEM-1000 sensor
Nominal size: DN10...1000 / ANSI 0,5”…40”
Max. static pressure standard: 1,6MPa (2,5MPa, 4MPa on request)
Process connection flange: DIN, ANSI
Ambient temperature :-20...60 °C
Liner temperature range Rubber: -5...90 °C
Neoprene: 0...80 °C
Teflon PTFE: -25...90 °C (special version -25...130 °C)
PFA: -10...90 °C
Connection cable standard: 8m (other on request)
Electrodes material: 316L (Hastelloy/Tantalum)
Liner Hard rubber: DN40...1000
Neoprene: DN40...1000
Teflon PTFE: DN15...500
PFA: DN10
Casing and flange material standard: carbon steel Rustproofing paint
Excitation coils supply from the transmitter
Excitation of coils isolation class: E
Protection class standard: IP67, (IP68 on request)
Measuring principle electromagnetic
Accessoriesgrounding rings
