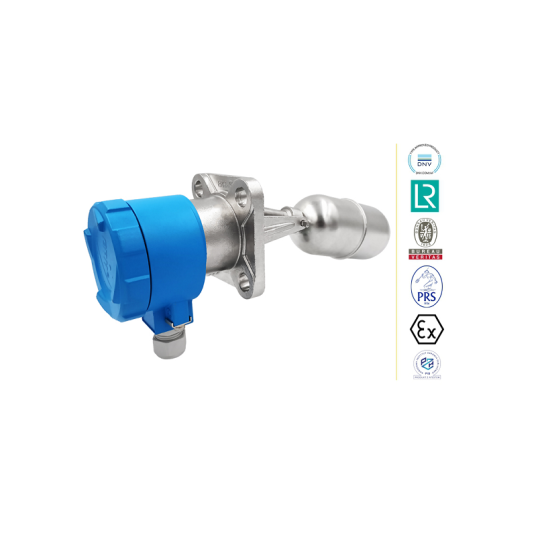

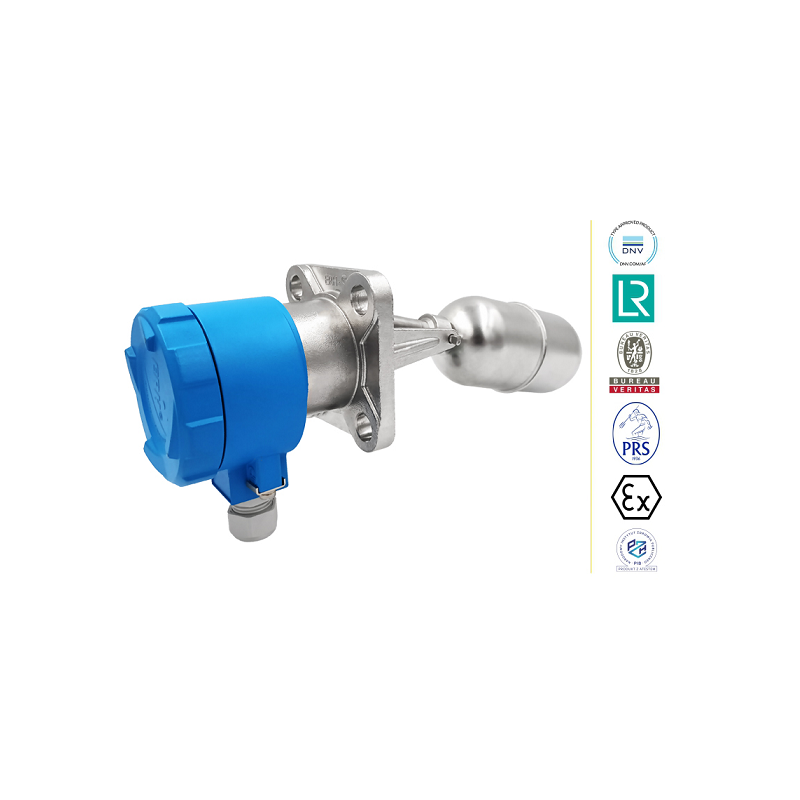

Description: Level switches are designed for signaling limit levels or two-state control of liquid levels in open and closed pressure vessels, in explosive atmospheres too. The switches can operate in aggressive liquids that do not affect 316/316L stainless steel.
Application
* Mounting from the side or top
* Flanged connections 92x92 and DN80 or threaded R2", G2" and 2 "NPT
* Option of execution entirely in stainless steel
* Enclosure protection IP66 or IP68
* DNV, LR, BV and PRS marine certificates, ATEX explosion-proof certificate and PZH hygienic certificate
Dimensions
ERH-01- basic version with flange connection 92x92
ERH-02- version with float protection
ERH-03- version with adjustable hysteresis
ERH-04- version with adjustable hysteresis (top mounted)
ERH-07-, ERH-08-, ERH-09- threaded versions
