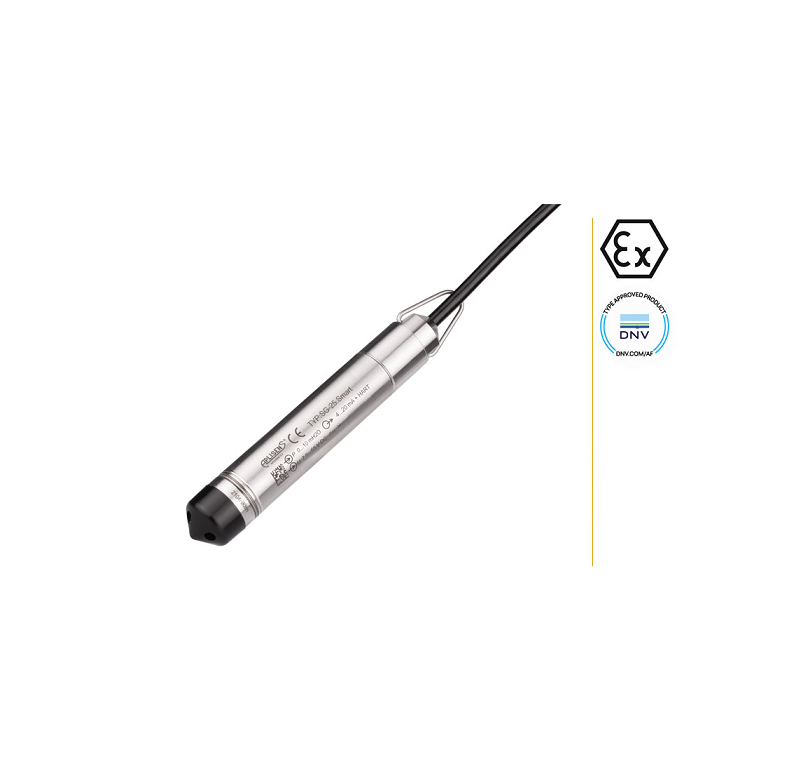

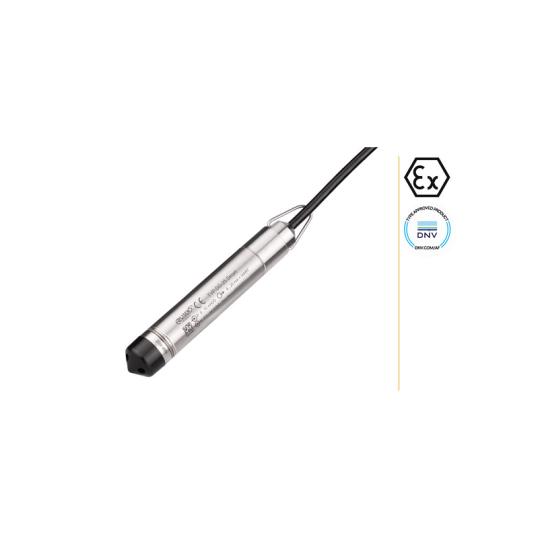

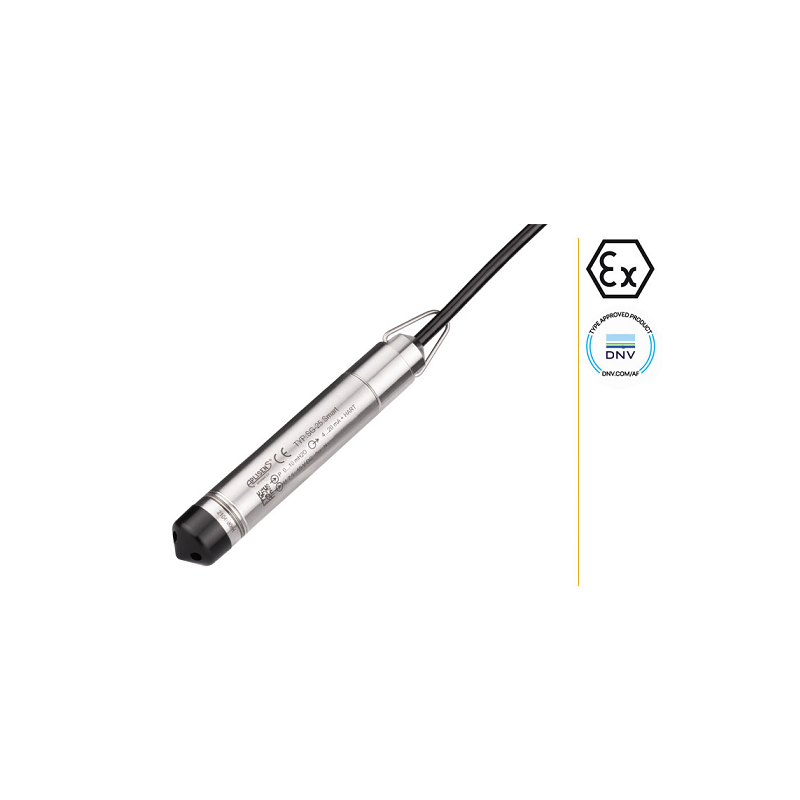

CẢM BIẾN ĐO MỨC APLISENS MODEL SGE-25/HASTELLOY

Application
The SGE-25/HASTELLOY hydrostatic level probe is applicable to measure liquid levels in tanks where probe made in stainless steel can’t be used – e.g. in seawater or chemical applications.
Long term stability: 0,1% or 1 cm H2O for 1 year
Hysteresis, repeatability: 0,05%
Thermal compensation range: 0 ÷ 40°C – standard
Medium temperature range: -30 ÷ 40°C
Electrical parameters
Output signal, power supply:
Signal type: 4 ÷ 20mA
Power supply: 8…36 VDC
Error due to supply voltage changes: 0,005% / V
Degree of protection: IP68
Material of casing: Hastelloy
Cable shield: ETFE
Material of diaphragm: Hastelloy
