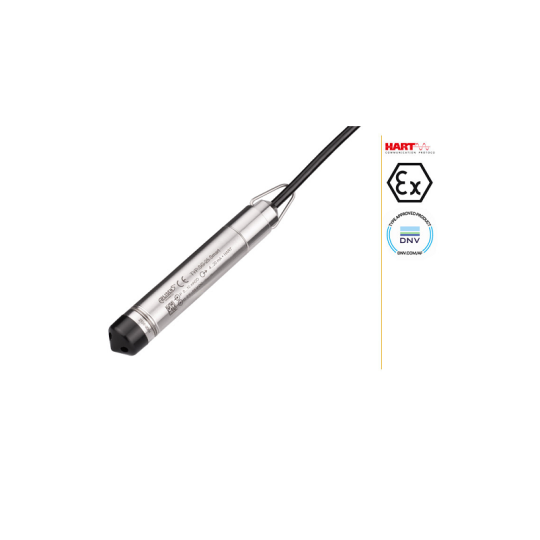

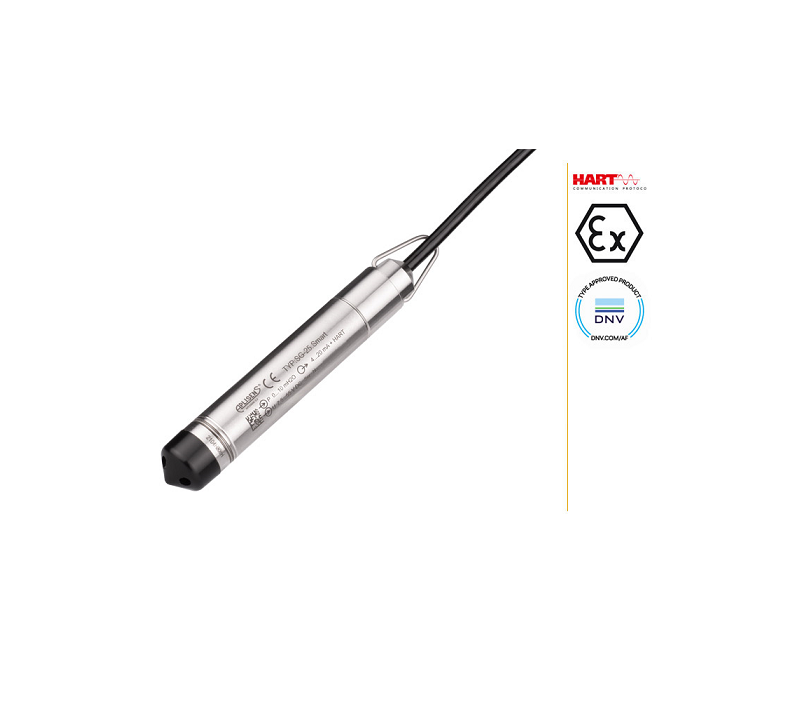

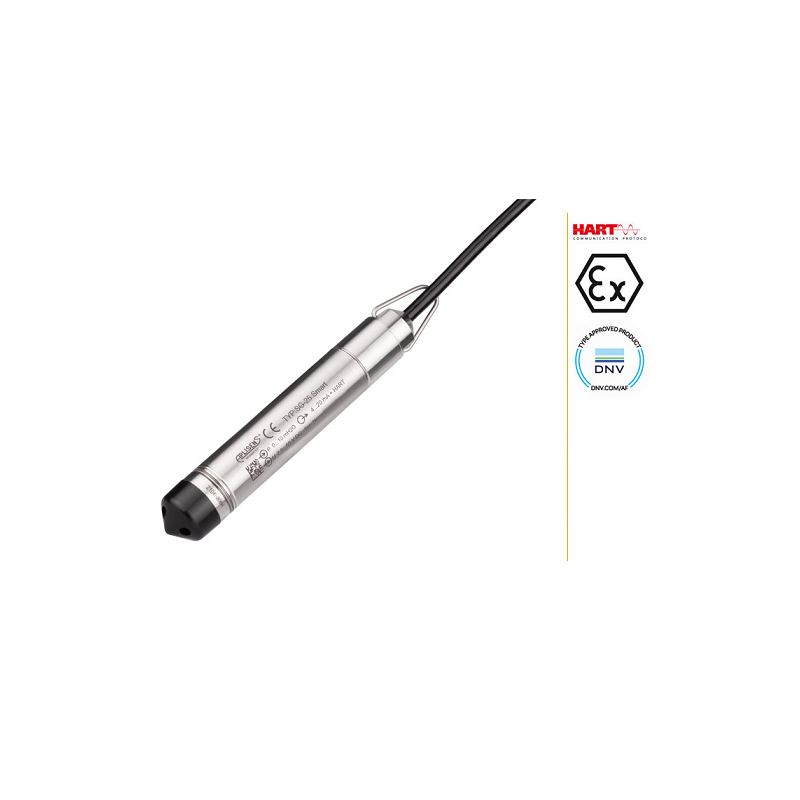

CẢM BIẾN ĐO MỨC APLISENS MODEL SGE-25.Smart and SGE-25S.Smart

Application
The SGE-25.Smart level probe is applicable to measure liquid levels in tanks, deep wells or piezometers.
Technical data
Accuracy: ±0,1% for nominal range
SGE-25.Smart: ±0,3% for range 0...10% FSO
Long term stability: 0,1% (FSO) for 2 years
Thermal error: < ±0,08% (FSO) / 10°C, max ±0,2% in the whole compensation temp. range
Thermal compensation range: -25...80°C
Response time: 22 ms
Additional electronic damping: 0...30s
Error due to supply voltage changes: 0,002% (FSO) / V
Electrical parameters
Power supply: 7,5...55 VDC (Ex 7,5...28 VDC)
Output signal: 4...20 mA (two wire transmission)_
Operating conditions
Medium temperature range: -30...40°C
      ETFE or PTFE version: 0...80°C
CAUTION: The mediummust not be allowed to freeze in the immediate vicinity of the probe.
Degree of protection: IP68
Material of casing: SS316L (optionally Hastelloy)
Material of diaphragm: Hastelloy C276
Cable shield: PU, ETFE, PTFE
