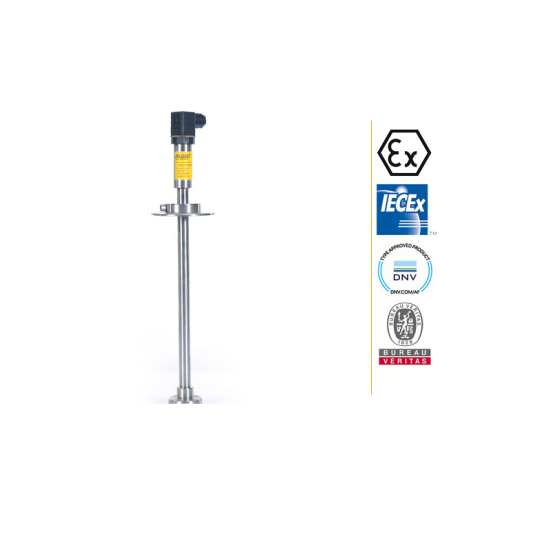

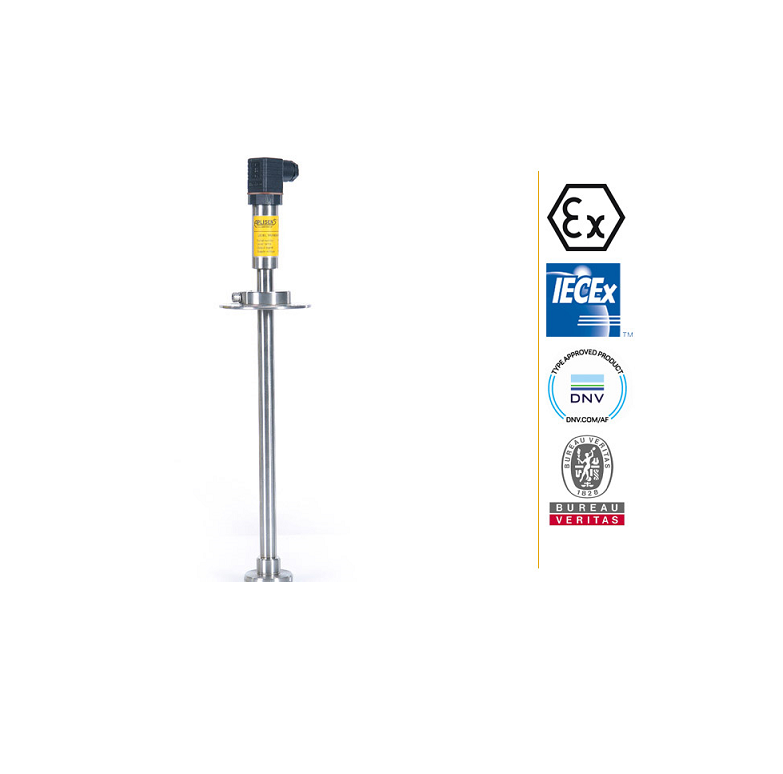

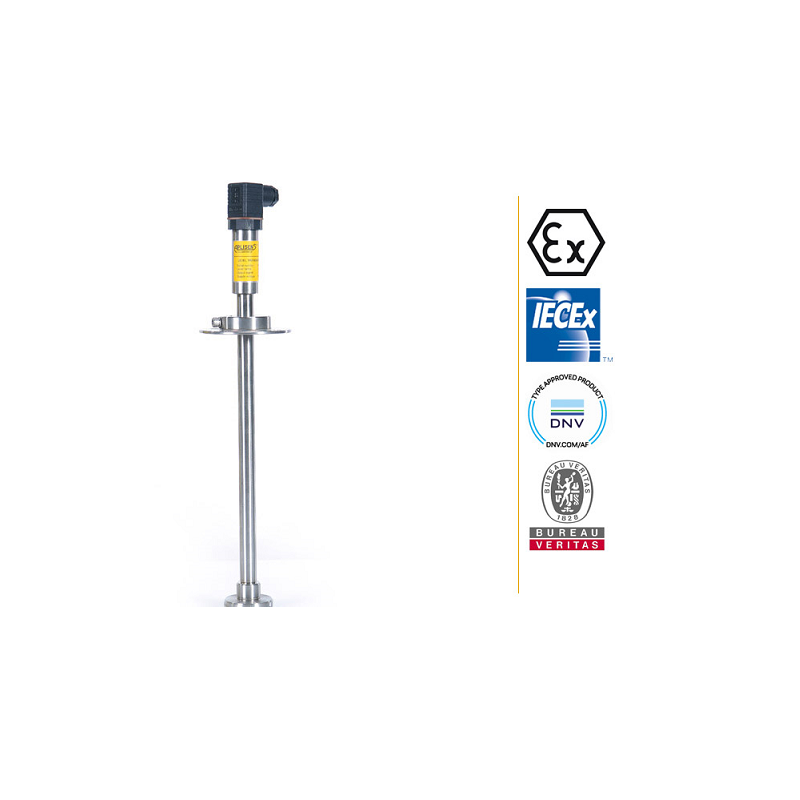

CẢM BIẾN ĐO MỨC APLISENS MODEL PCE-28P and APC-2000ALW/P

Application
Hydrostatic level probes are applicable to measure levels of liquids in open tanks, channels, measuring constrictions of open channels, streams etc.
Technical data
Output signal: 4 ÷ 20 mA
Power supply:
      8 ÷ 36 VDC
      (Ex 9...28 VDC)
Any measuring range from: 0…200 to 0…3000 mm H2O
Accuracy max.: +/- 0,25%
Medium temperature range: -25 ÷ 80°C
Material of the wetted parts: SS316L
Material of casing: SS304
