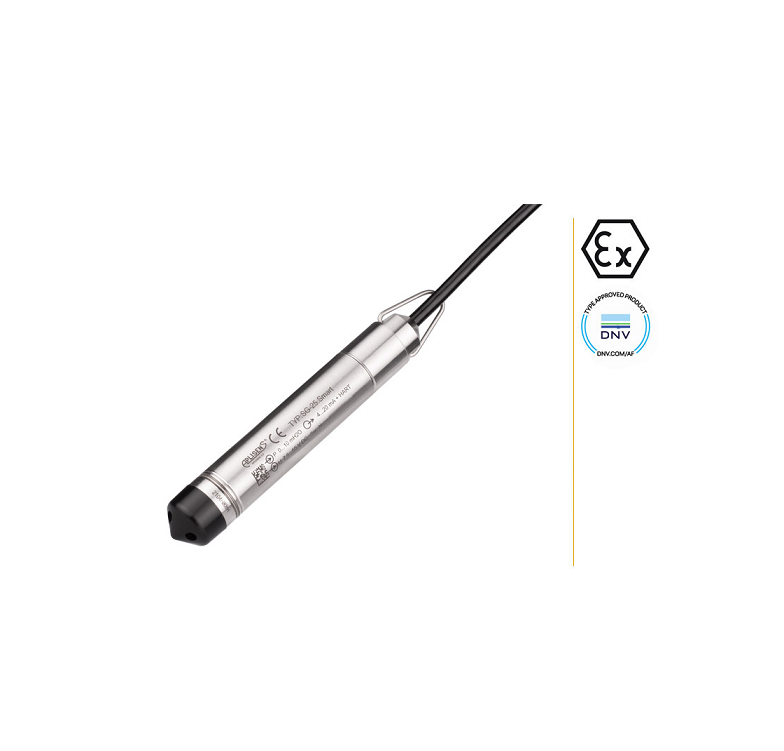

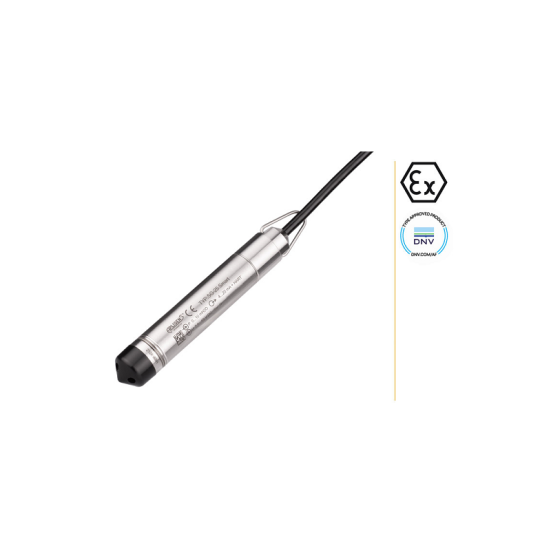

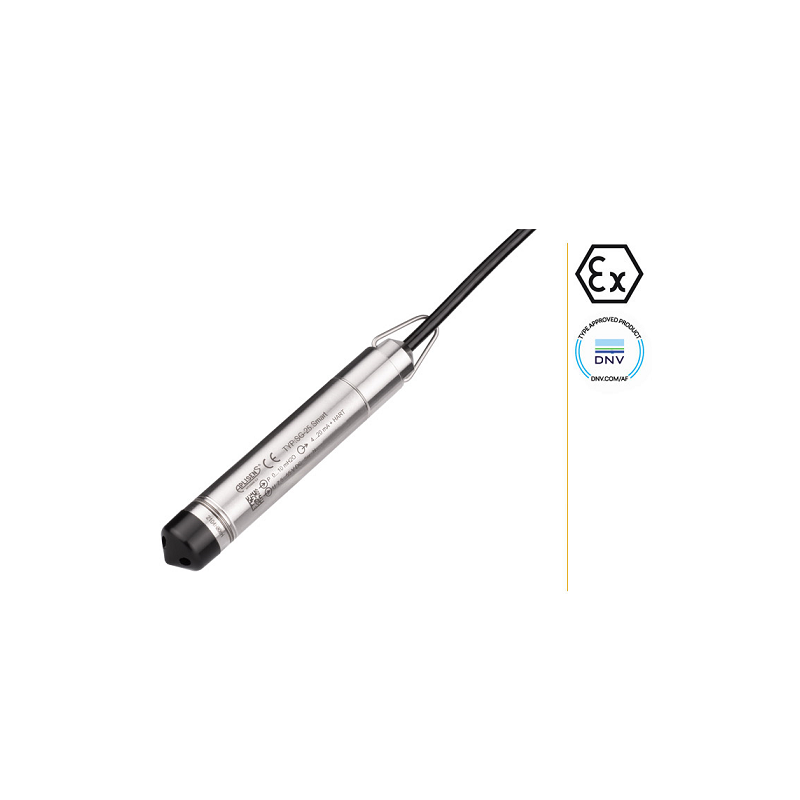

CẢM BIẾN ĐO MỨC APLISENS MODEL SGE-25.Modbus

Communication
Level probes with communication protocol RS485/Modbus RTU. The communication standard for data interchange with the transmitter is the RS485/Modbus RTU. Communication with the transmitter is carried out with PC using RS converter and Aplisens software.
Technical data
Accuracy: ±0,1%
Long-term stability: Aaccuracy for 3 years (for nominal range)
Thermal error: < ±0,1% (FSO) / 10°C , max ±0,4% (FSO) in the whole compensation range
Thermal compensation range.:  -25...80°C (other range on request)
Additional electronic damping: 0...30 s
Electrical parameters
Power supply in Modbus mode: 4…28 V DC
Exia version: 4…10 V DC in 4…20mA mode
(only non Exia version): 5..28 V DC
Transmission range: 1200 m
Output: MODBUS RTU + 4..20 mA
Address space: 1...247 devices address
Transmission speed: 600...115200 bps
Parity transmission: no parity, odd, even frame transmission 10...11 bit (1, 2 bit-stop)
*More information about technical data available in user’s manual
Special version
Teflon – teflon cable shieldin
