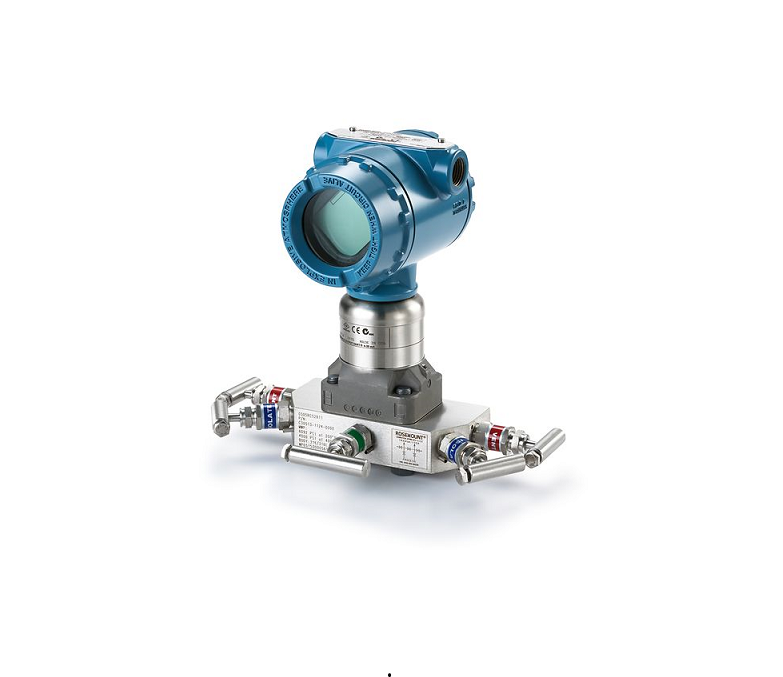

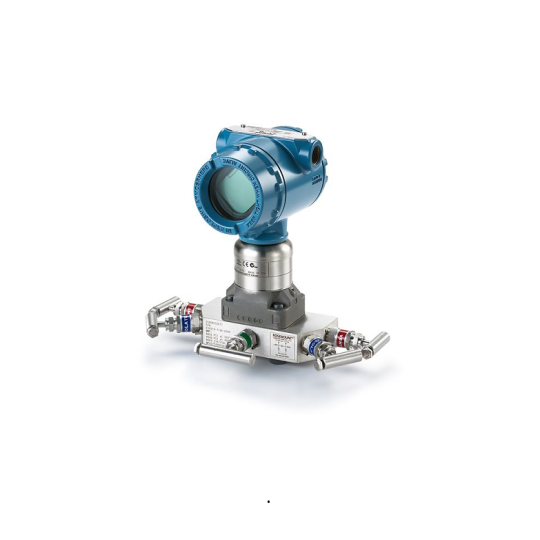

CẢM BIẾN CHÊNH ÁP ROSEMOUNT 3051S Differential

Specifications

Rangedown: 200:1 rangedown enables application flexibility

Measurement Range: Up to 2000psi (137,89 bar) differential

Output: Differential pressure, scaled variable

Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus

Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

Features

• Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution

• Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation Best-in-class, scalable architecture enhances functionality and process connections

• All-welded hermetic SST SuperModule™ platform delivers 15-year stability and 15-year limited warranty

• Ultra for Flow performance classes enables up to Up to ±0.04% of reading

• Available with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

• Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues

• Remote display offers easy access to device display and loop connection

• 200:1 rangedown produce reliable measurements and application flexibility
