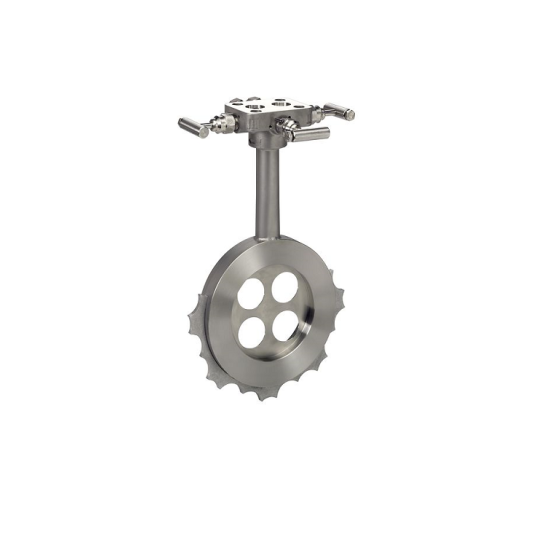

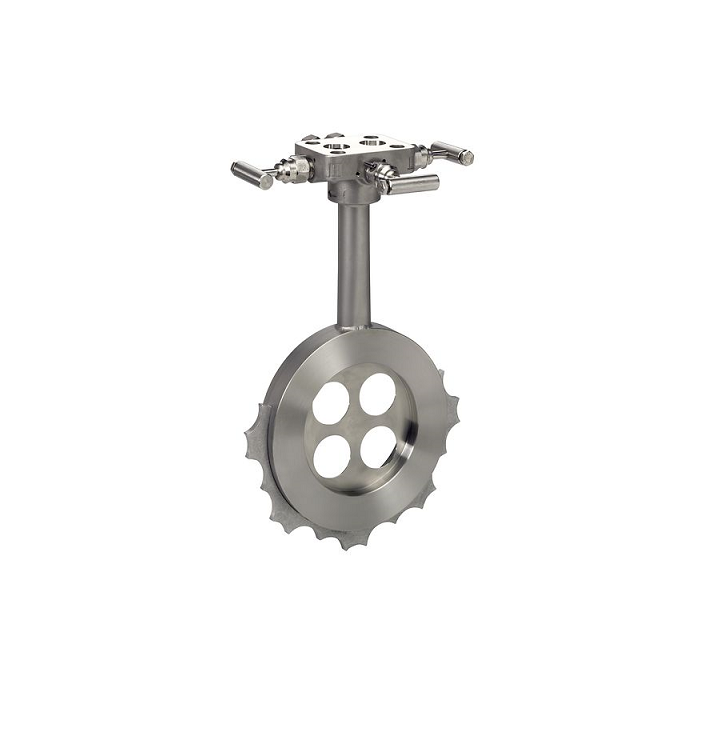

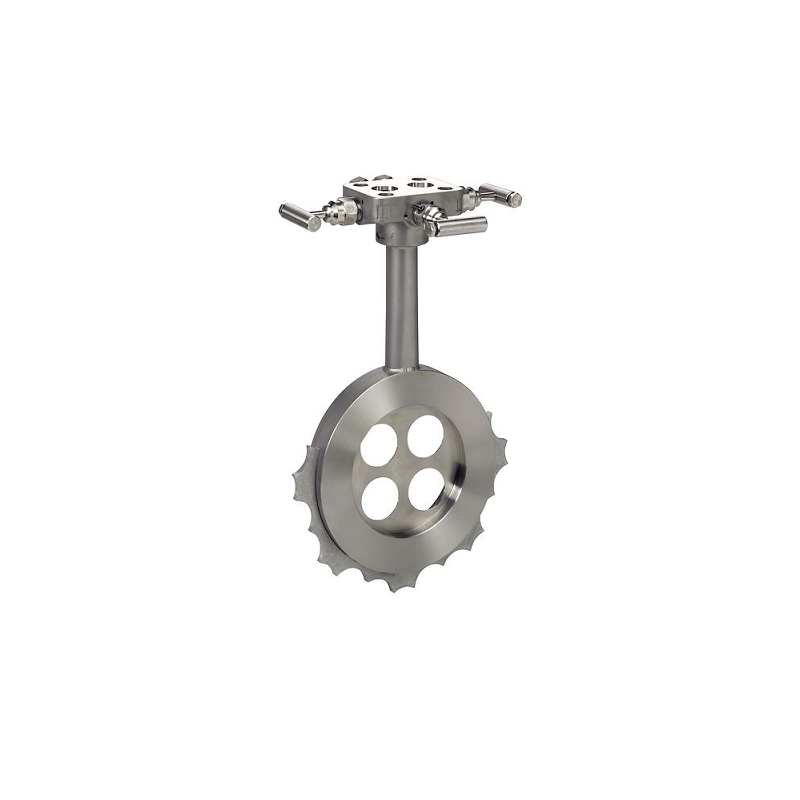

Rosemount 405C Compact Conditioning Orifice Plate Primary Element

Product Description

The Rosemount 405C Compact Conditioning Orifice Plate Primary Element offers a patented 4-hole design enabling accurate measurement in disturbed flow conditions. Unlike traditional plates, this conditioning orifice plate reduces pipe straight run, requiring only two pipe diameters (2D) upstream and downstream of the plate, providing a flexible and reliable metering solution. This orifice plate is compact, easy-to-install and features self-centering mechanisms for optimal accuracy

Specifications

* Max. Operating Pressure: ANSI B16.5 600#, DIN PN100

* Process Temperature Range: -321 to 850 °F (-196 to 454 °C)

* Fluid TypeLiquid, gas, steam

* Process Wetted Material: 316 SST

* Warranty: Up to 5-year limited warranty

Features

• Patented 4-hole design enables accurate flow measurement in disturbed flow profiles

• Innovative orifice plate requires only 2D upstream and 2D downstream to reduce pipe straight-run

• Does not require impulse lines, special flanges or piping modifications for cost-saving efficiency

• Offers direct-mount capability for ease of installation

• Self-centering mechanisms simplify installation and ensure optimal flow measurement accuracy
