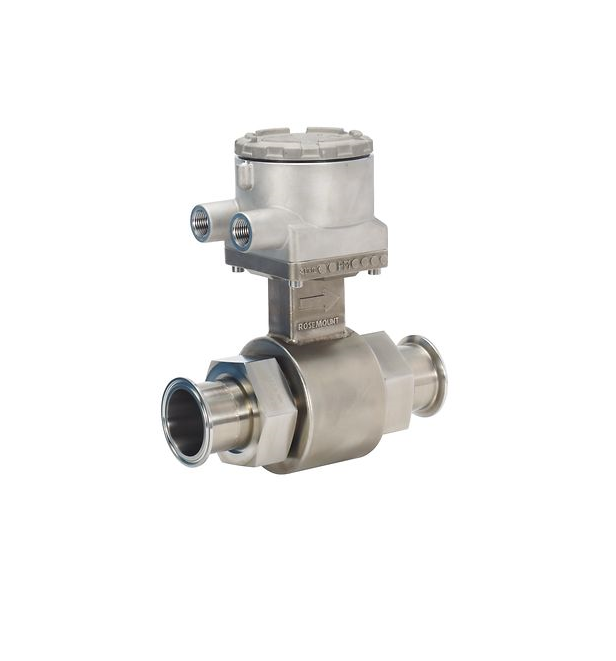

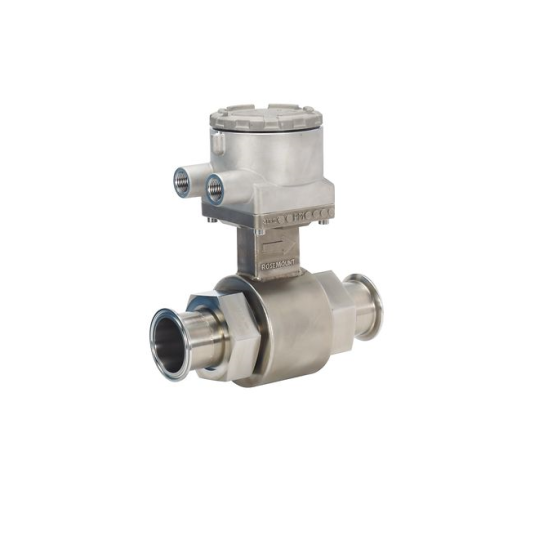

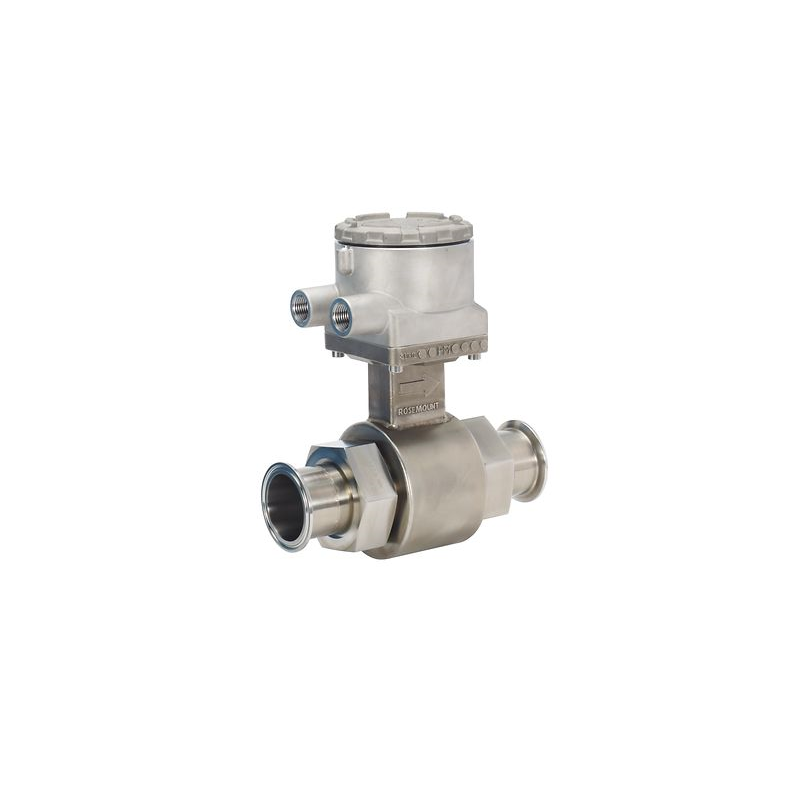

Rosemount 8721 Hygienic Magnetic Flow Meter Sensors

Product Description

The Rosemount 8721 Hygienic Magnetic Flow Meter Sensor uses an all-welded meter body that is specifically designed for food, beverage and life science applications that demand safe, hygienic and reliable performance. All contact surfaces are constructed of FDA-approved materials designed in accordance with 3A standards. Additionally, the 8721 is available with a variety of sanitary process connections with easily accessed process gaskets to facilitate efficient inspection and maintenance.

Specifications

* Accuracy: Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown

* Line Sizes: ½-4 inch (15-100 mm)

* Liner Materials: PFA

* Electrode Materials:

                                   316L Stainless Steel, Nickel Alloy, Platinum

                                   Consult factory for additional material options

* Process Connections:

                                      Tri-Clamp® Sanitary Coupling

                                      IDF Sanitary Coupling (screw type)

                                      Weld Nipple

                                      DIN 11851 (Imperial and Metric)

                                      DIN 11864 (-1 and -2 Form A)

                                      SMS 1145

                                      DEN US 50 Weld Nipple

* Product Certifications: 3-A, EHEDG Type EL, PMO (M-b-350)

* Interchangeability:

                                 Compatible with all 8700 Series transmitters

                                 Compatible with Legacy transmitters: 8712D, 8712C, 8732C, 8742C

Features

• Lightweight, compact stainless steel design makes installation easy
• Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
• Fully-welded meter body design allow for safety in hygienic applications
• Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
• Satisfy virtually any requirement with a variety of available sanitary process connections
• Better facilitate inspection and maintenance with easily accessed process gaskets
• Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair
