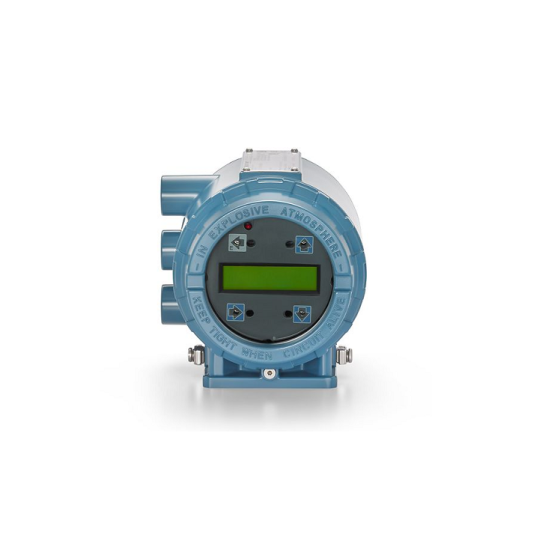

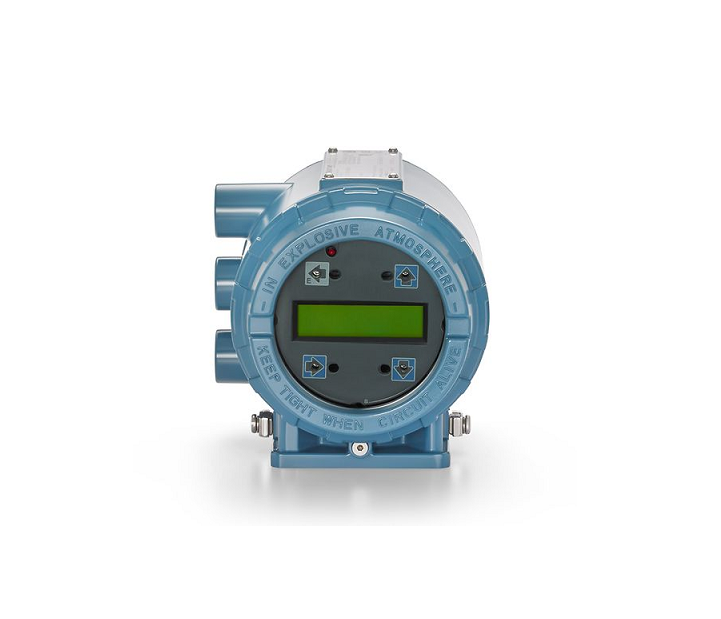

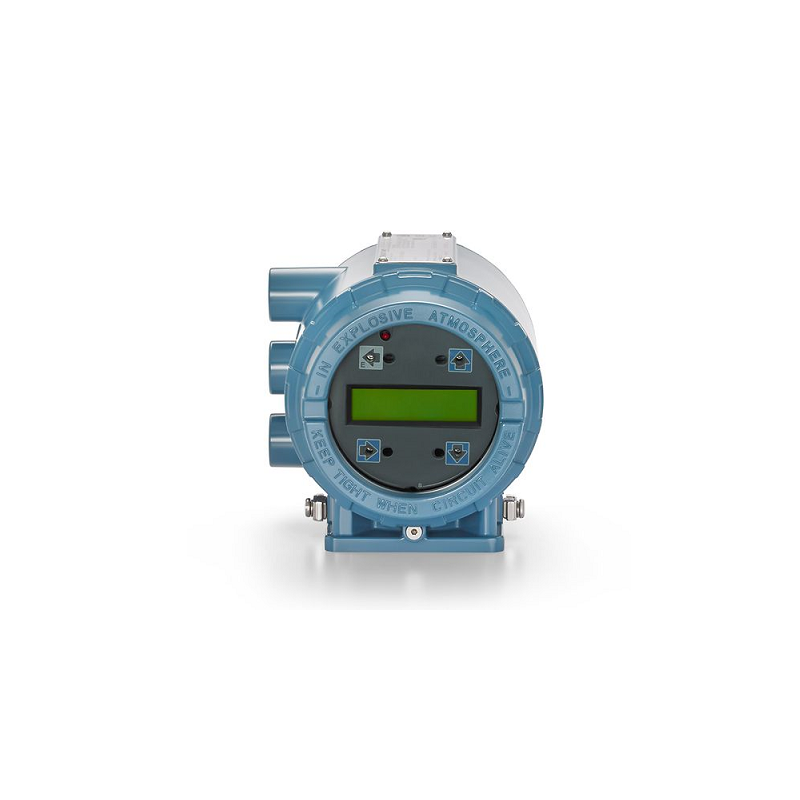

Rosemount 8732E Field Mount Magnetic Flow Meter Transmitter

Product Description

A dual-compartment transmitter housing provides isolation from the external environment. Advanced diagnostics and through-the-glass Local Operator Interface offer unparalleled process insight.

Specifications

* Sensor compatibility: Compatible with Rosemount 8705, 8711, and 8721sensors. Compatible with AC and DC powered sensors ofother manufacturers.

* Transmitter coil drive current: 500mA

* Flow rate range: Capable of processing signals from fluids that are travelingbetween 0.04 and 39 ft/s (0.01 to 12 m/s) for both forwardand reverse flow in all sensor sizes. Full scale continuouslyadjustable between –39 and 39 ft/s (–12 to 12 m/s).

* Conductivity limits: Process liquid must have a conductivity of5 microSiemens/cm (5 micromhos/cm) or greater.

* Power supply: 90 - 250VAC, 50/60Hz or 12 - 42VDC

* Line power fuses: 90-250VAC systems

                                1A, 250V, I2t, 1.5 A2s Rating, Fast ActingBussman AGC-1, Littlefuse 31201.5HXP

                                12-42VDC systems

                                 3 Amp, 250V, I2t, 14 A2s Rating, Fast ActingBel Fuse 3AG 3-R, Littelfuse 312003P, Schurter 0034.5135

* Line power fuses: 15W maximum - DC

                                40VA maximum - AC

* Switch-on current:

AC: Maximum 35.7A (< 5ms) at 250VAC

DC: Maximum 42A (< 5ms) at 42VDC

Features

• Continually monitor meter health and performance without stopping the process with Smart Meter Verification

• Prevent moisture ingress with dual-compartment transmitter housing

• Improve process management with advanced Digital Signal Processing

• Optimize control in noisy applications with High Process Noise diagnostic and Selectable Coil Drive Frequency options

• Tunable Empty Pipe diagnostic minimizes issues and false readings when the pipe is empty

• Quickly verify installation integrity with Ground and Wiring Fault Detection diagnostic

• Simplify adjustments in hazardous environments without removing the cover using optical switches for configuration

• Universal transmitter capabilities enable reduced inventory and consistent interface for any magnetic flow meter sensor
