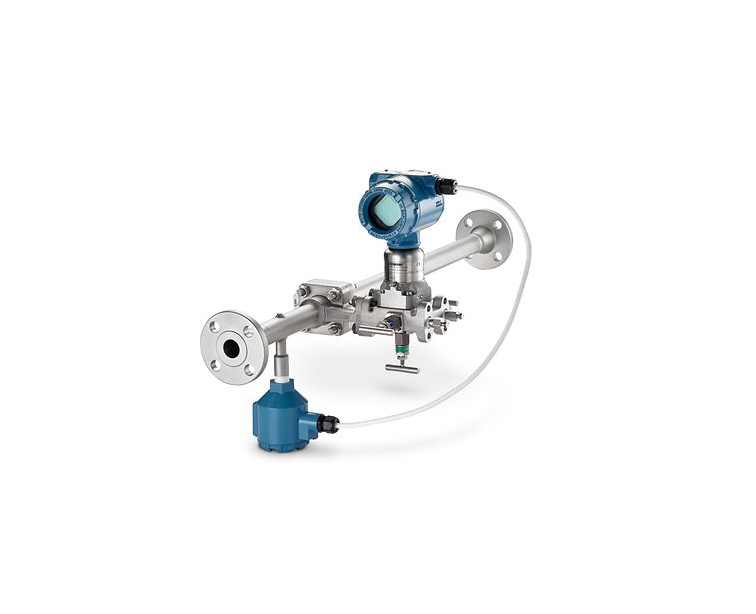

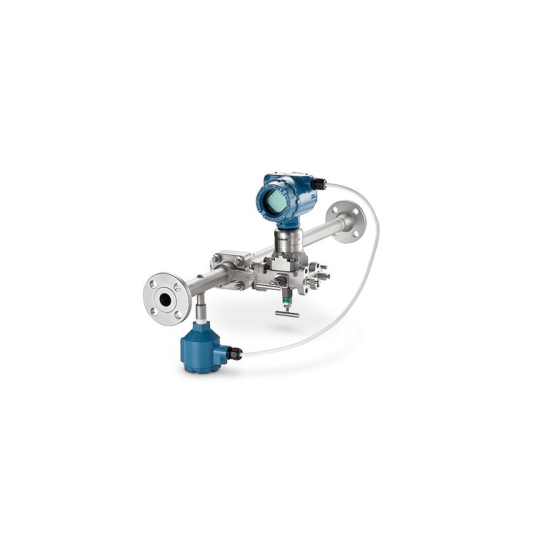

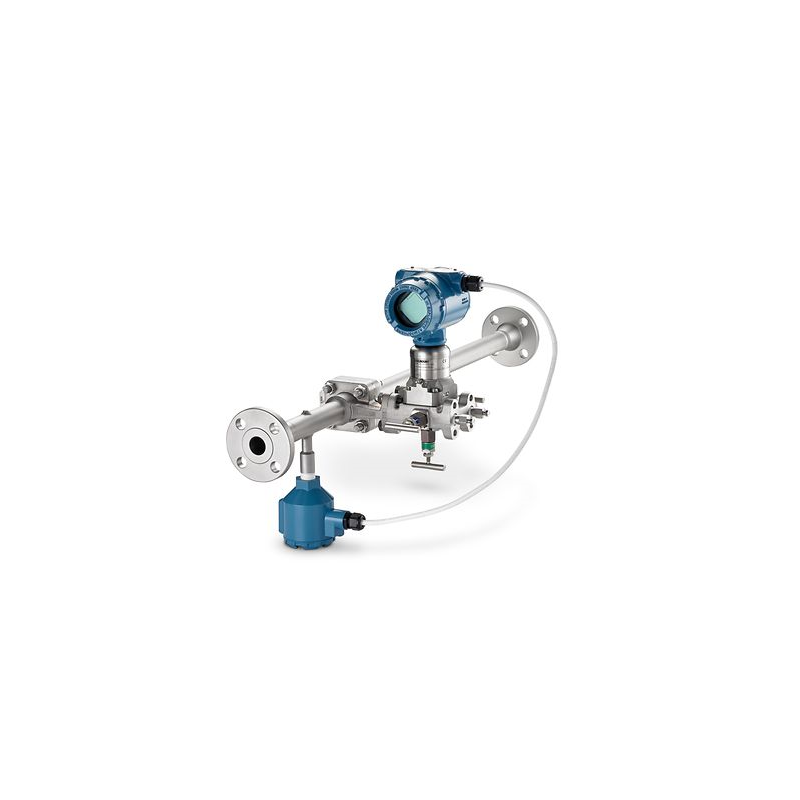

Rosemount 3051SFP Integral Orifice Flow Meter

Product Description

The Rosemount 3051SFP Integral Orifice Flow Meter is a no-equal multivariable device customized with an integral orifice primary element. This meter run assembly provides easy installation and is engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). This device is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.

Specifications

* Warranty: Up to 15-year limited warranty

* Rangedown: Up to 200:1 (14:1 flow turndown)

* Measurement Range: Up to 1000 inH2O (2,48 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage

* Line Size: 0.5 to 1.5 in. (15 to 40 mm)

* Output: Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow

* Communication Protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus

* Process Wetted Material: 316 SST

* Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications

* Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• Designed with built-in flow calculations for direct reporting of fully-compensated mass flow

• Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues

• Primary element integrated in a meter run for ease of installation

• Suitable for small line sizes 0.5- 1.5 in. (15 - 40 mm) for optimal flow measurement accuracy and repeatability

• Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations

• Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy

• All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications

• Flowmeters come fully configured, leak-tested and ready to install right out of the box for fast installation

• Flowmeter technology eliminates unnecessary pipe penetrations for an integrated, trouble-free solution

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability without the cost of wiring

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
