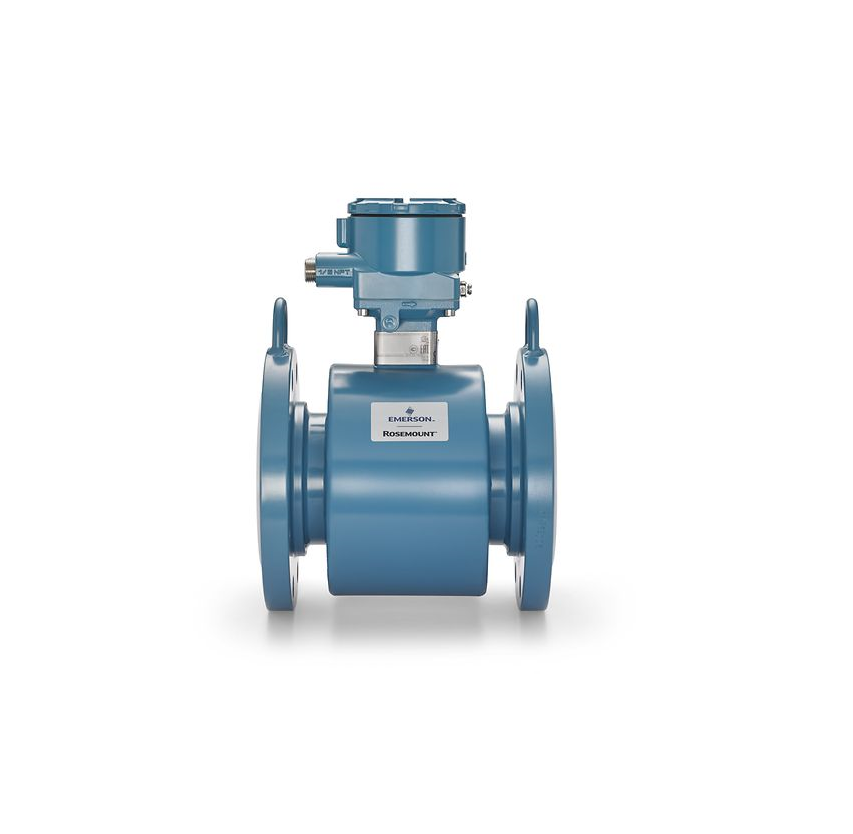

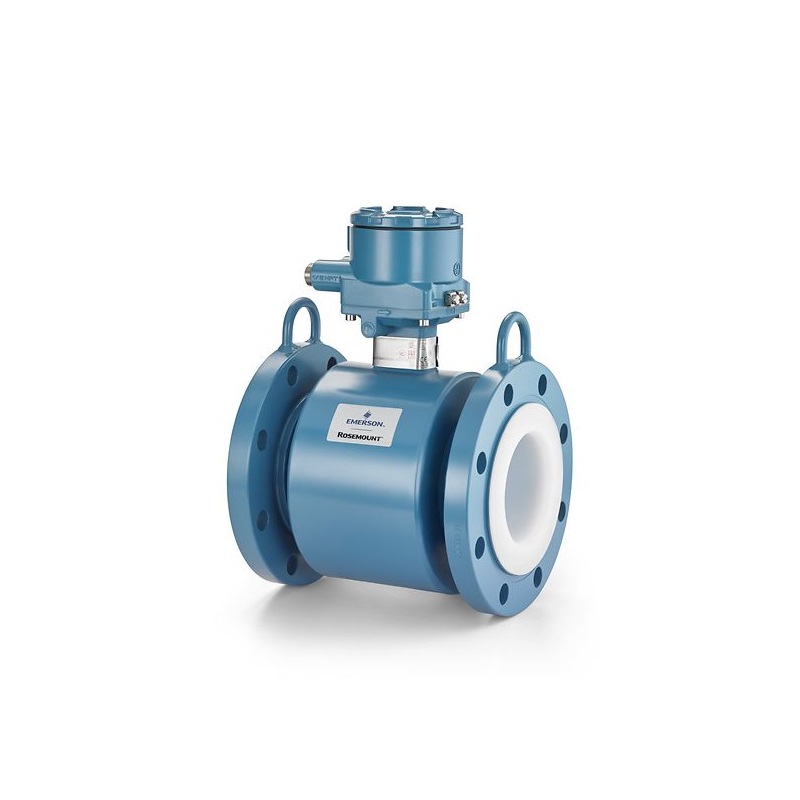

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Product Description

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.

Specifications

* Accuracy: Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown

* Line Sizes: ½-36 inch (15-900 mm)

* Liner Materials: PEX, PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options

* Electrode Materials: 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium

* Flange Ratings: ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)

* Submergence Protection: IP68 (Recommended with sealed cable glands)

* Interchangeability: Compatible with all 8700 Series transmitters

* Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C

Features

• For maximum protection, a fully welded sensor housing provides a hermetic seal

• Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

• Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes

• Ensure reliability in the harshest environments with an all-welded sensor housing

• Guard against installation damage and leading-edge wear with an optional lining protector

• Minimize maintenance and repair with an obstructionless design featuring no moving parts
