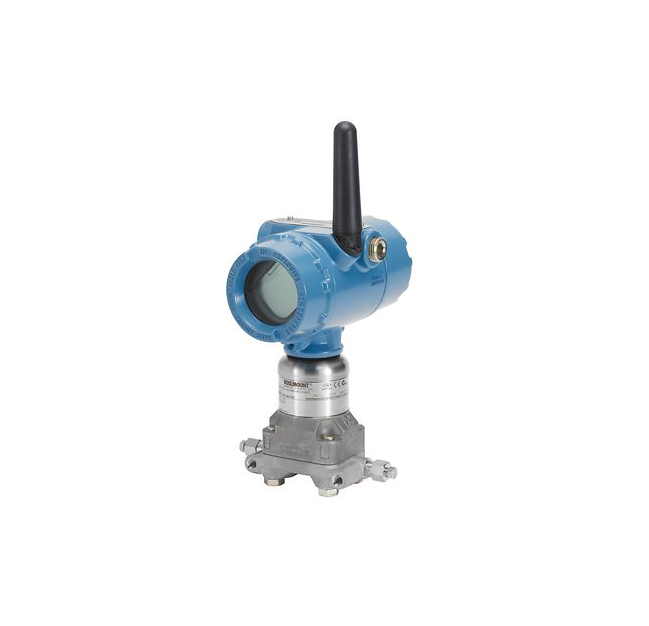

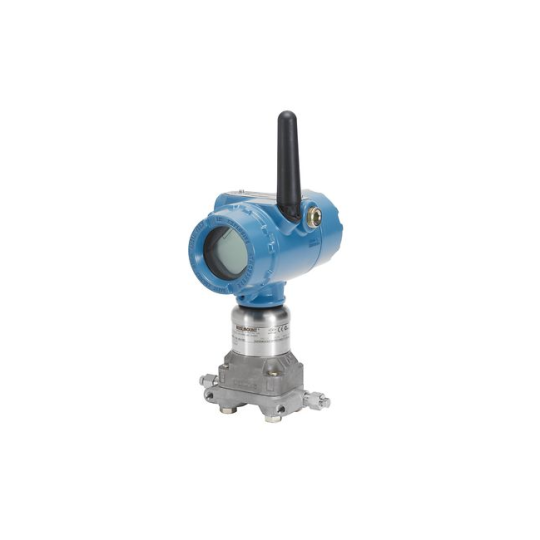

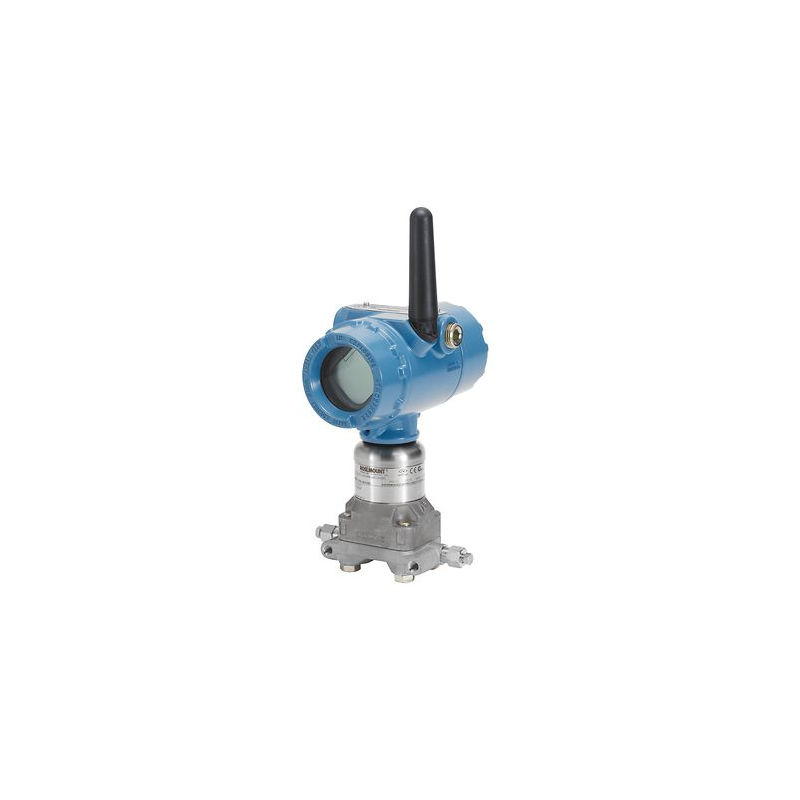

Rosemount 3051S Wireless Differential Pressure Flow Transmitter

Product Description

The Rosemount 3051S Wireless Differential Pressure Flow Transmitter combines no-equal scalable technology and state-of-the art primary flow elements with the security and data reliability of a WirelessHART®network. A best-in-class solution, this DP flow transmitter seamlessly integrates with a variety of primary elements that can be pre-assembled to the device. As a wireless transmitter, installation is straightforward, delivering long-lasting, >99% data reliability without the cost of wiring.

Specifications

* Warranty: Up to 15-year limited warranty

* Rangedown: Up to 200:1

* Measurement Range: Up to 2000psi (137,89 bar) differential

* Output: Differential pressure, scaled variable

* Communication Protocol: WirelessHART®

* Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

* Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

* Certifications/Approvals: NSF, NACE, hazardous location, see full specs for complete list of certifications

* Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• Primary elements can be pre-assembled to transmitter for an optimized, ready-to-install DP flow solution

• Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

• All-welded hermetic SST SuperModule™ platform delivers 15-year stability and 15-year limited warranty

• Ultra and Ultra for Flow performance classes enables up to 0.025% of span accuracy

• 200:1 rangedown produce reliable measurements and wide application flexibility

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
