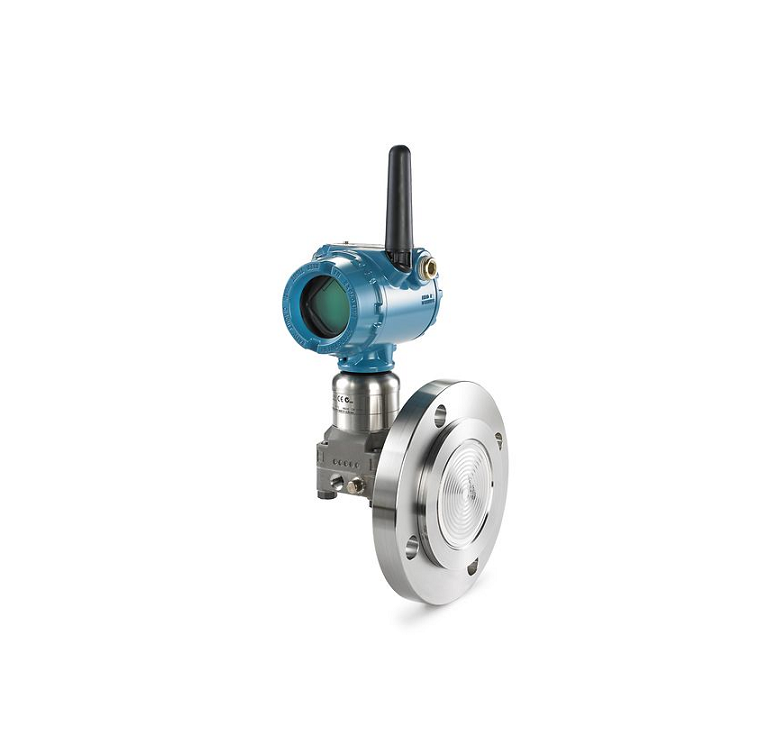

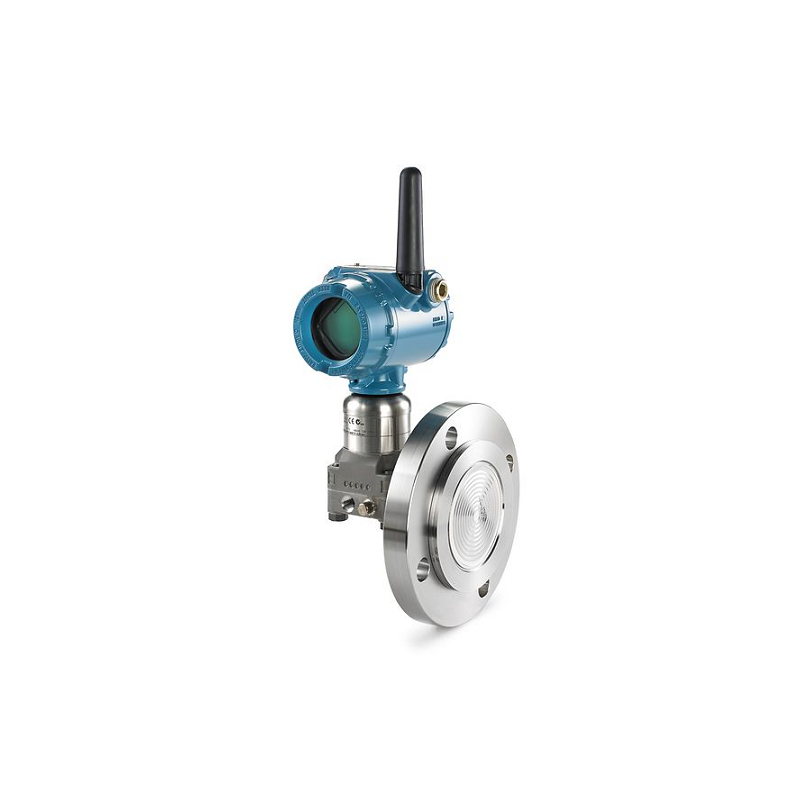

Rosemount 3051SAL Wireless Level Transmitter

Product Description

Featuring WirelessHART®technology, the Rosemount 3051SAL Wireless Level Transmitter is a no-equal solution to optimize level measurement. This wireless device allows for direct mounting, remote mounting, balanced systems and Tuned-System™ assemblies to meet various process requirements. Engineered with the hermetically sealed, stainless steel SuperModule™ platform, this transmitter has a 15-year limited warranty and stability and up to 10-year power module life, providing field reliability.

Specifications

* Max. Operating Pressure: Up to 10,000psi (689.48 bar)

* Process Temperature Range: Based on fill fluid - Maximum 770°F (410°C), Minimum -157°F (-105°C)

* Communication Protocol: WirelessHART®

* Seal System Type: Direct Mount, Remote Mount, Tuned-System, Balanced System

* Transmitter Connection: Welded-Repairable, All Welded

* Process Connection:

                                    Flanged: ANSI/ASME, EN/DIN, GOST, & JIS

                                    Threaded: NPT, DIN, ISO

                                    Hygienic

* Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see full specs for complete list of materials

* Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line

* Certifications/Approvals: NACE®, 3A, hazardous location, see full specs for complete list of certifications

* Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

• WirelessHART®technology is secure, cost-effective and delivers >99% data reliability

• SuperModule platform offers 15-year limited warranty and stability for field reliability

• Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements

• Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations

• Omnidirectional external wireless antennas improve connectivity to remote areas with ranges up to 2/3 mi. (1 km)

• Available in various process connections, including flanged, threaded and hygienic seals for application flexibility

• Optimized and robust seal system construction provides reliability with repairable-welded and all-welded options

• SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
