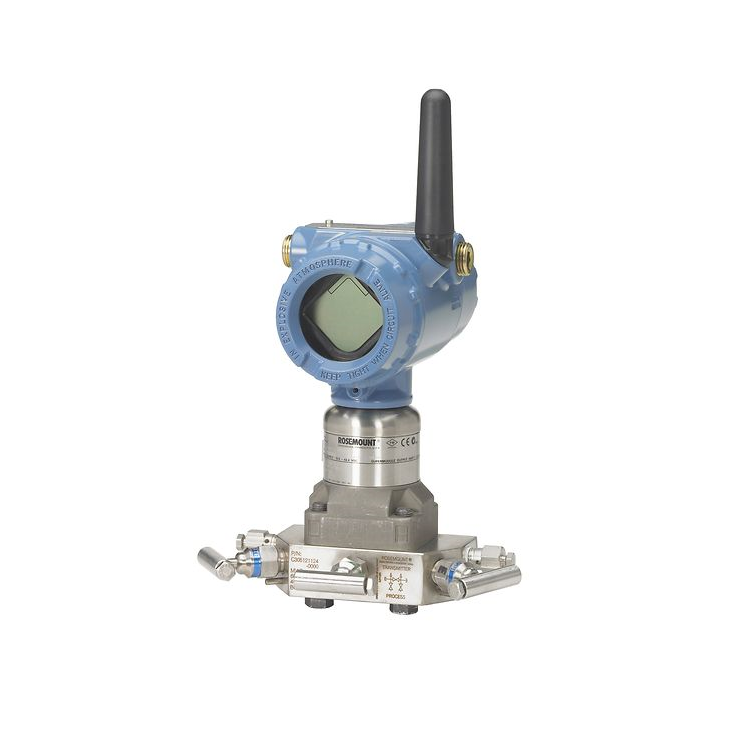

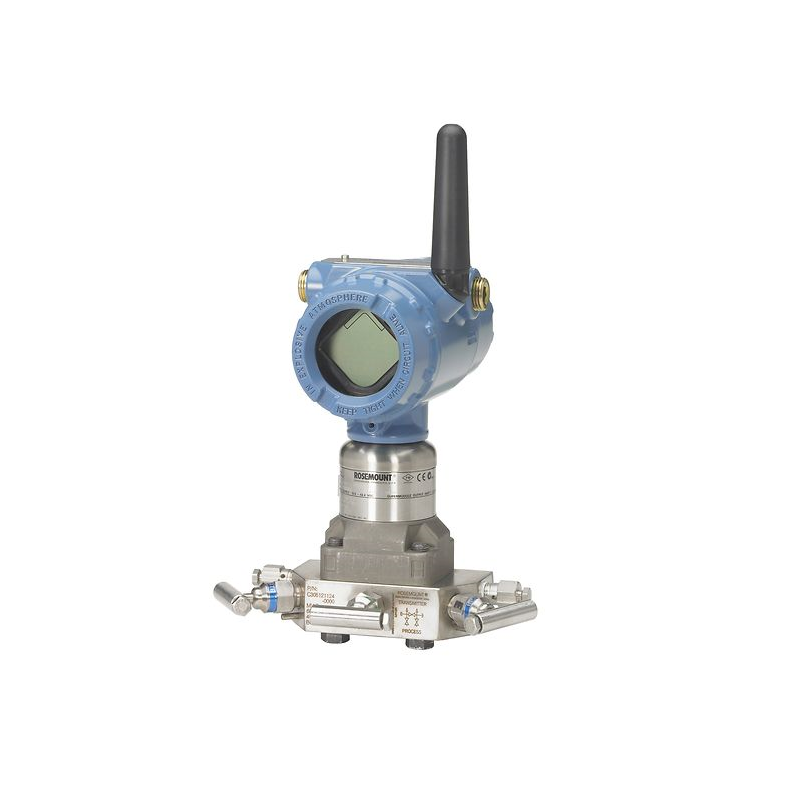

Rosemount 3051S Wireless MultiVariable Flow Transmitter
Nhà sản xuất: Rosemount (Emerson)
Product Description
A best-in-class multivariable solution, the Rosemount 3051S Wireless MultiVariable Flow Transmitter provides measurements via a secure WirelessHART® network. This flow measurement transmitter is cost-effective, delivering direct variable measurement for differential and static pressure without the cost of wiring. This device also offers quick instrumentation of measurement points and standardizes on a single model number.
Specifications
* Warranty: Up to 15-year limited warranty
* Rangedown: Up to 200:1
* Measurement Range: Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static
* Output: Differential pressure, static pressure, module temperature, scaled variable
* Communication Protocol: WirelessHART®
* Process Wetted Material: 316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST
* Diagnostics: Basic Diagnostics
* Certifications/Approvals: NSF, NACE®, hazardous location, see PDS for full list of certifications
* Update Rate: 1 sec. to 60 min., user selectable
* Power Module Life: Up to 10-year life, field replaceable (order separately)
* Wireless Range: Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)
Features
WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
Accurate, multivariable measurement in one versatile device for process cost-efficiency
Ultra for Flow provides a ±0.04% of reading for standardization to eliminate the need for stacked transmitters
Easy installation enables quick instrumentation of measurement points without the cost of wiring
Primary elements available as assemble-to options for simple installation and commissioning
All-welded, resilient SuperModule™ sensor offers best-in-class accuracy in harsh environments and applications
Flowmeters come fully configured, leak-tested and ready to install right out-of-the-box for fast installation
Flowmeter technology eliminates unnecessary pipe penetrations for an integrated, trouble-free solution
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
