Rosemount 3051L Level Transmitter

Product Description

Direct mount or use a Tuned-System™ assembly that optimizes performance and reduces temperature effects by 10-20% for improved response time by over 80% versus traditional installations. Built-in diagnostics detect electrical loop issues and alert you to corrosion, water in the housing, or unstable power supply. Available with a graphical, back-lit display, Bluetooth® connectivity, Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.

Specifications

* Warranty: Up to 5-year limited warranty

* Max. Operating Pressure: Up to 300 psi (20,68 bar)

* Process Temperature Range:

                                                  Based on fill fluid: Maximum 401°F (205°C), Minimum -157°F (-105°C)

* Communication Protocol: 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®

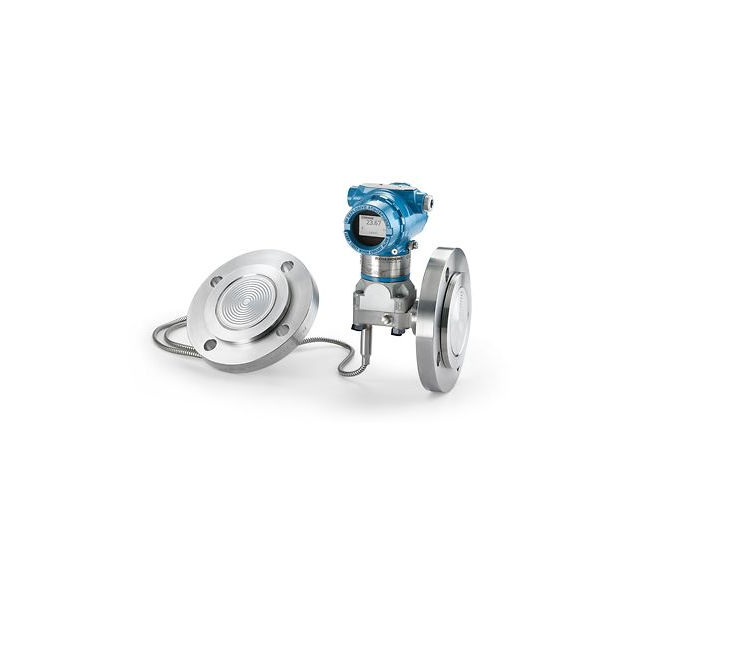

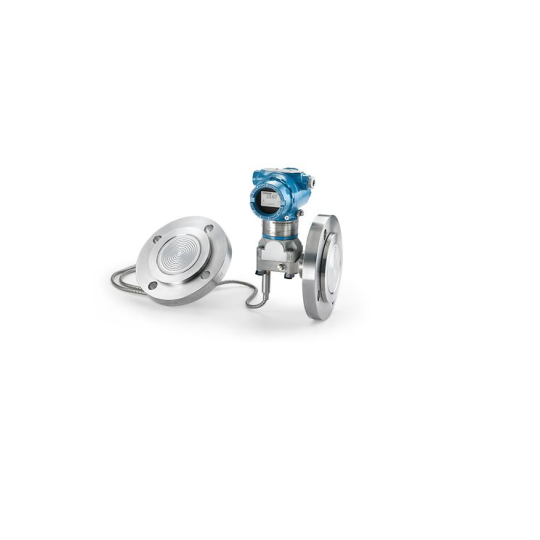

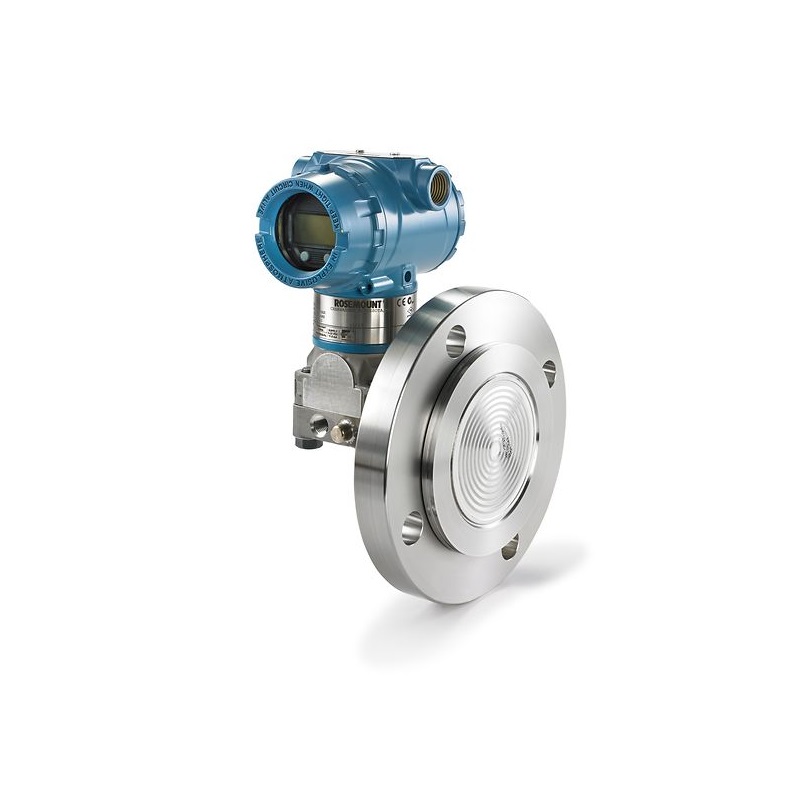

* Seal System Type: Direct Mount, Tuned-System

* Transmitter Connection: Welded-Repairable

* Process Connection:

                                     Flanged: ANSI/ASME, EN/DIN, JIS

* Process Wetted Material: 316L SST, Alloy C-276, Tantalum

* Diagnostics: Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications

* Wireless Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Internal antenna (225 m)

Features

• Tuned-System Level assembly and direct mounting produce optimal performance for level applications
• Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations
• Complete level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
• Bluetooth^® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
• The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
• Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
• Quick service buttons offer built-in configuration buttons for streamlined commissioning
• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
• Wireless Features
  • WirelessHART^® technology is secure and cost-effective and delivers >99% data reliability
  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
