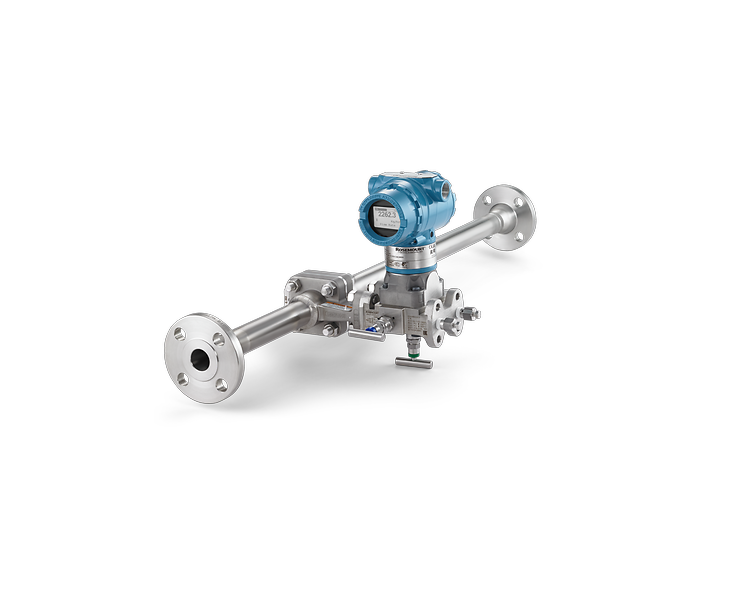

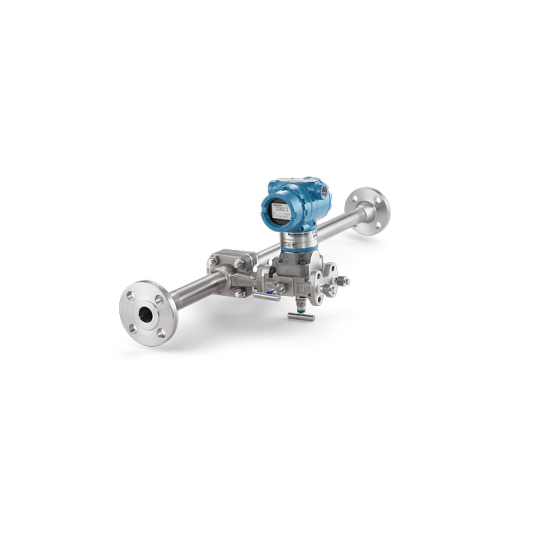

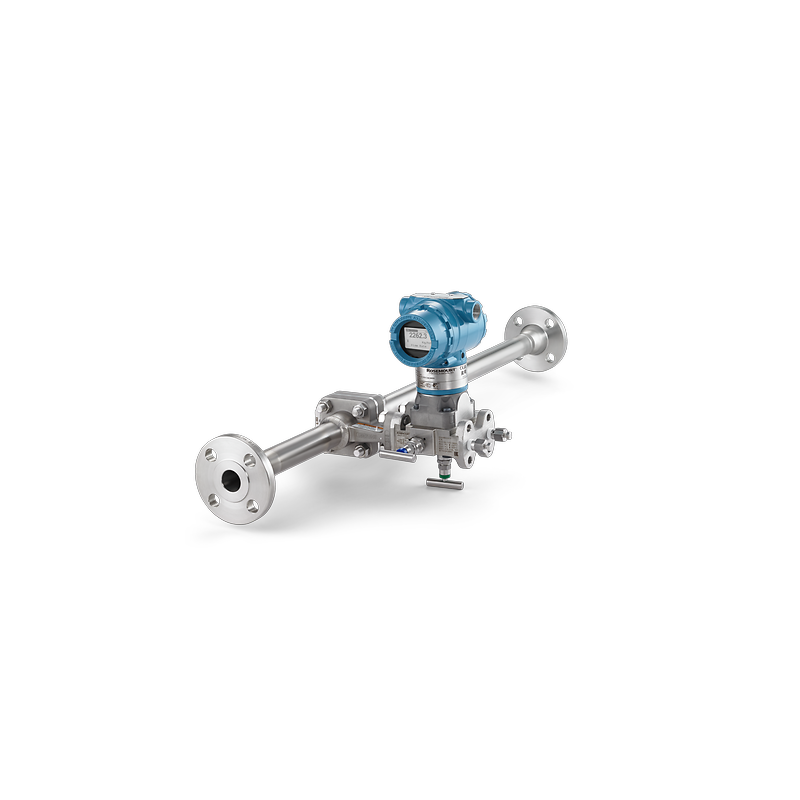

Rosemount 3051CFP Integral Orifice Flow Meter

Product Description

Designed with an integral orifice primary element for easy installation, the Rosemount 3051CFP Integral Orifice Flow Meter is an industry-leading flow measurement solution. This flow meter utilizes a self-centering integral orifice plate that is provided in a meter run and engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). Available with Graphical, back-lit display, Bluetooth® connectivity, Flow specific configuration and enhanced software capabilities designed to access the data you need quickly. This device is offered with multiple communication protocols, including WirelessHART®.

Specifications

* Warranty: Up to 5-year limited warranty

* Rangedown: Up to 150:1 (8:1 flow turndown)

* Measurement Range: Up to 1000 inH2O (2,48 bar) differential

* Communication Protocol: 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®

* Line Size: 0.5 to 1.5 in. (15 to 40 mm)

* Process Wetted Material:

                                            Body: 316L SST

                                            Orifice Plate: 316L SST, Alloy C-276, Alloy 400

* Diagnostics: Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

* Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®

* Wireless Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Internal antenna (225 m)

Features

• Suitable for small line sizes 0.5-1.5 in. (15-40 mm), the orifice plate is integrated in a meter run for ease of installation and high flow maeasurement accuracy and repeatability

• Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer

• Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility

• Bluetooth^® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool

• The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions

• Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime

• Quick service buttons offer built-in configuration buttons for streamlined commissioning

• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

• Wireless Features

  • WirelessHART^® technology is secure and cost-effective and delivers >99% data reliability

  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
