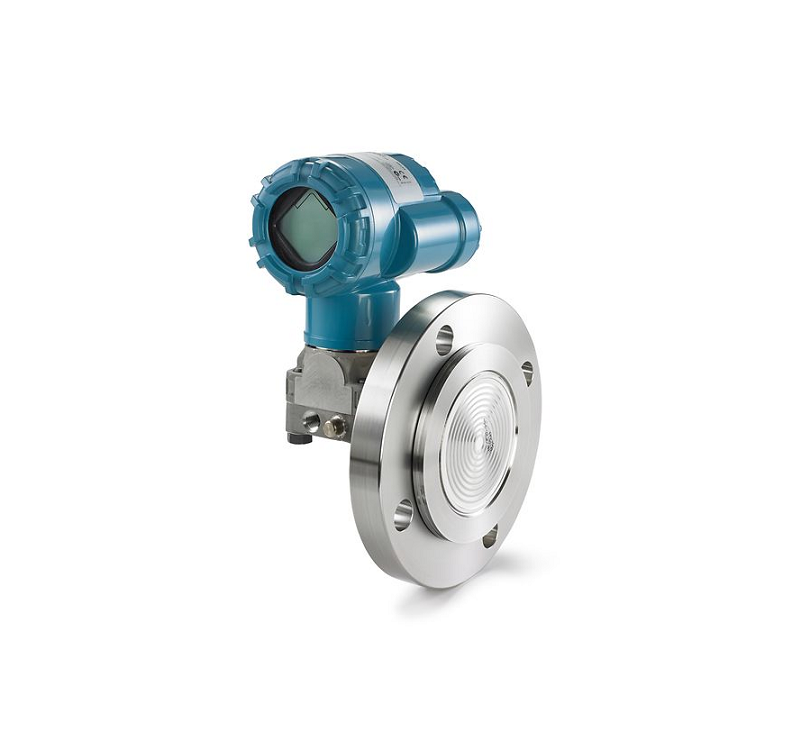

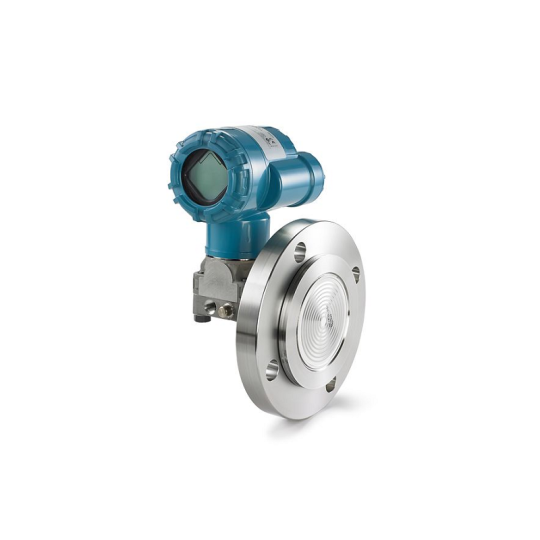

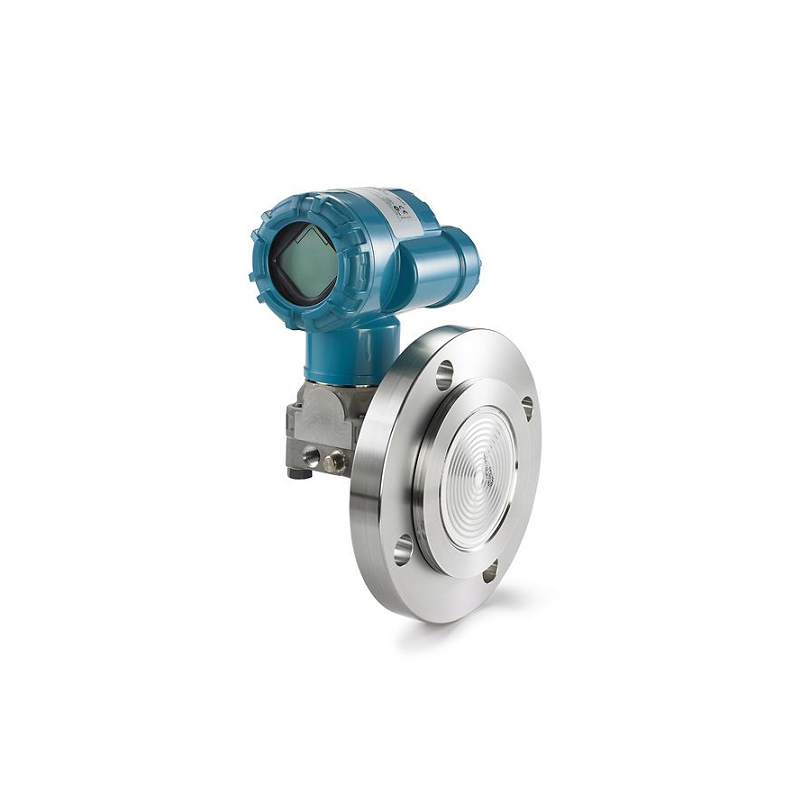

Rosemount 2051L Wireless Level Transmitter

Product Description

Rosemount 2051L Wireless Level Transmitter provides level measurements with a variety of process connections, materials and WirelessHART®technology. The SmartPower™ module of this wireless device provides up to 10-year, maintenance-free operation as well as field replacement. For improved performance over traditional installations, this transmitter has Tuned-System™ assembly and direct mounting options.

Specifications

* Max. Operating Pressure: Up to 300 psi (20,68 bar)

* Process Temperature Range: Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)

* Communication Protocol: WirelessHART®

* Seal System TypeDirect Mount, Tuned-System

* Transmitter Connection: Welded-Repairable

* Process Connection: Flanged: ANSI/ASME, EN/DIN, JIS

* Process Wetted Material: 316L SST, Alloy C-276, Tantalum

* Diagnostics: Basic Diagnostics

* Certifications/Approvals: NACE®, hazardous location, see full specs for complete list of certifications

* Update Rate: 1 sec. to 60 min., user selectable

* Power Module Life: Up to 10-year life, field replaceable (order separately)

* Wireless Range: Internal antenna (225 m)

Features

• WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

• Tuned-System Level assembly and direct mounting produce optimal performance for level applications

• Optimized seal system construction ensures a quality measurement in harsh process conditions

• SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

• Easy installation enables quick instrumentation of measurement points without the cost of wiring
