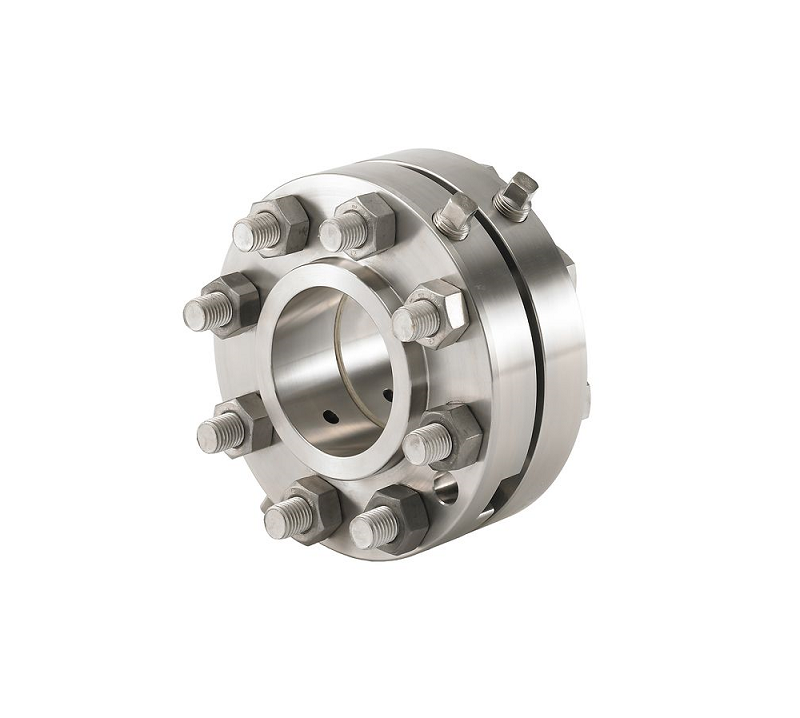

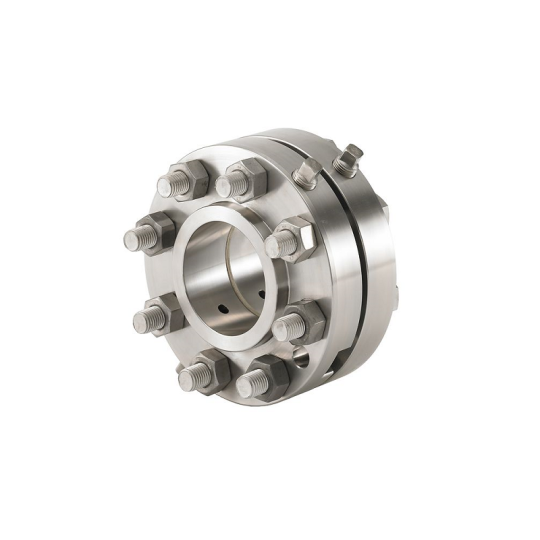

Rosemount 1496 Orifice Flange Union

Product Description

The Rosemount 1496 Orifice Flange Union holds orifice plates in place for reliable flow measurement. This flange union is designed with a threaded tap connection (180-degrees apart) and engineered to withstand high temperatures and pressures of up to ANSI Class 2500#. These flange unions do not require on-site drilling and come with a complete assembly of all necessary hardware, including studs, nuts, jack screws, gaskets and pipe plugs.

Specifications

* Fluid Type: Liquid, gas, steam

* Process Wetted Material: 304/304L SST, 316/316L SST, DIN 1.4571 (316Ti SST), Alloy C-276, Alloy 400, Carbon Steel

* Warranty: Up to 5-year limited warranty

Features

• Positions orifice plates appropriately for reliable flow and accurate measurement

• Threaded tap connection does not require on-site drilling of flange taps for an easy-to-install solution

• Supplied with all necessary hardware for straightforward installation

• Available in line sizes up to 24 in. (600 mm) or custom line sizes

• Adaptable flange union withstands high temperatures and pressures of up to ANSI Class 2500#

• Meets ASME B16.36 and DIN 19214 part 1 specifications
