Rosemount 1495 Orifice Plate

Product Description

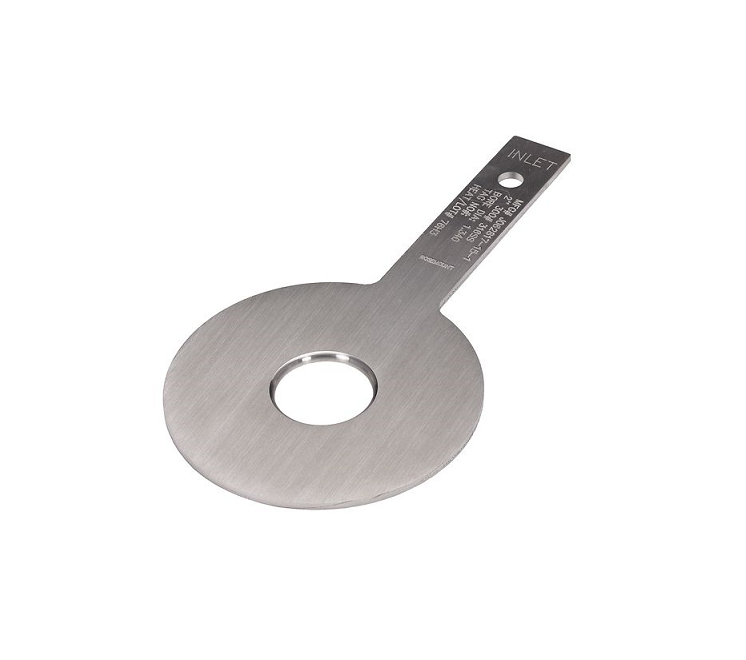

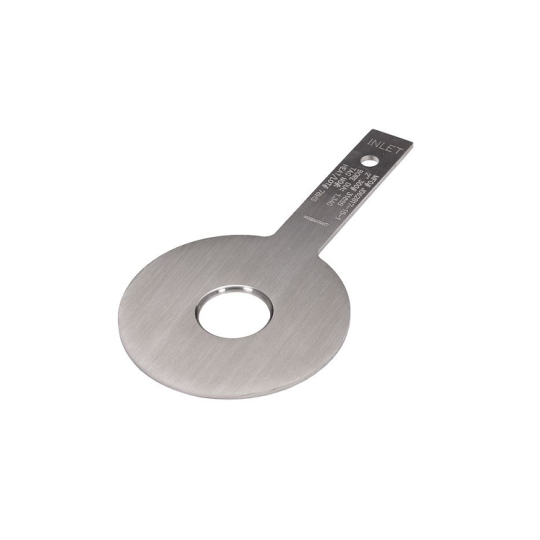

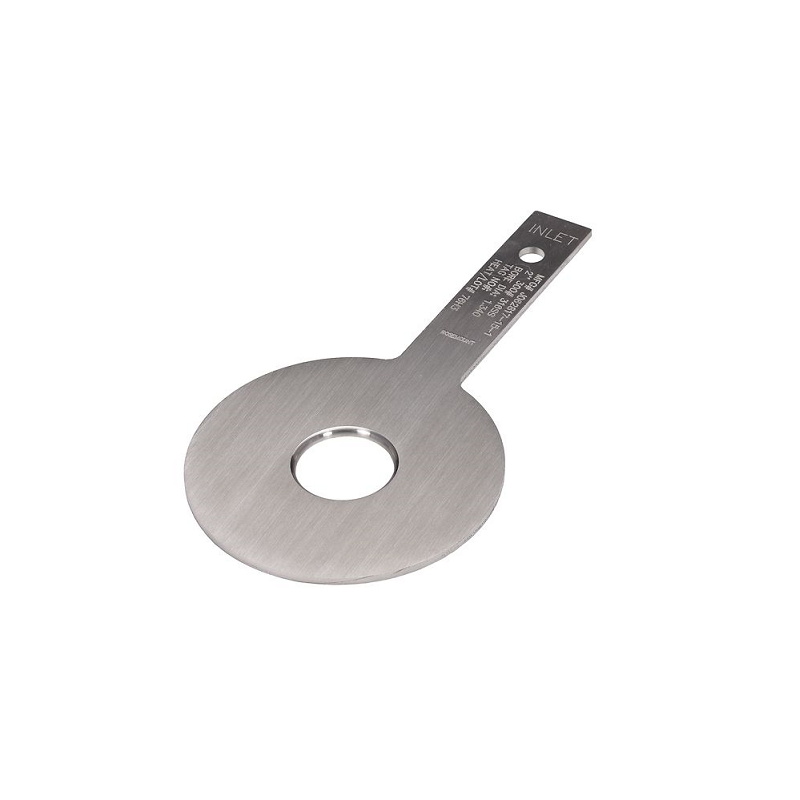

The Rosemount 1495 Orifice Plate Primary Element is engineered for reliable measurement performance. As the most common primary element used around the globe, this orifice plate offers a standard configuration with a square-edged concentric bore in both paddle and universal-type plates. This product is available in standard line sizes (2 - 24 in. or 50 - 600 mm) and is also suitable in high temperature and pressure applications.

Specifications

* Max. Operating Pressure: ANSI B16.5 2500#

* Process Temperature Range: -320 to 1200 °F (-196 to 649 °C)

* Fluid Type: Liquid, gas, steam

* Process Wetted Material: 304/304L SST, 316/316L SST, DIN 1.4571 (316Ti SST), Alloy C-276, Alloy 400

* Warranty: Up to 5-year limited warranty

Features

• Can be ordered in line sizes ranging from 2 to 24 in. (50 to 60 mm) or custom line sizes for application flexibility

• Manufactured to meet AGA, ASME, ISO, API and DIN standards

• Offers standard configuration of square-edged concentric bore in both paddle and universal-type plates

• Available in multiple material types to meet challenging process conditions

• Withstands high temperature and pressure applications, providing long-lasting durability
